Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:500 m
Supply Capability:50000 m/month
PVC Insulated Copper Electric Cable and Wire
1.Standard:IEC60227
2.Certificate:CQC,3C
4. 99.95% purity copper conductor
PVC Insulated Copper Electric Cable and Wires
Application
The product is applied to AC rated voltage 450/750V and below power plant laid(fixed)wiring. It's widely used in low voltage power lines,normal electrical equipment, instrumentation and telecommunication equipments.
Technical data
Rated voltage: 0.6/1KV
Highest working temperature of conductor: 90°C
Laying temperature:above 0°C
Minimum bending radius:6D
Product description
| Type | Description | Rated Voltage |
| 602271EC01(BV) | General purpose single-core hard conductor non-sheath cable | 450/720V |
| 602271EC05(BV) | Internal wifing conductor temperature 70oC single-core solid conductor non-sheath calbe | 300/500V |
| 6002271EC07(BV-90) | Internal wifing conductor temperature 90oC single-core solid conductor non-sheath calbe | 300/500V |
| 600271EC10(BVV) | Light-type PVC sheath cable | 300/500V |
| BLV | Aluminum core PVC insulation cable | 450/750V |
| BVR | Copper core PVC insulation flexible cable | 450/750V |
| BLVV | Aluminum core PVC insulation PVC sheath round cable | 300/500V |
| BVVB | Copper core PVC insulation PVC sheath flat cable | 300/500V |
| BLVVB | Aluminum core PVC insulation PVC sheath flat cable | 300/500V |
| 602271EC02(RV) | General purpose single-core flexible conductor non-sheath cable | 450/750V |
| 602271EC06(RV) | internal wiring conductor temperature 70oC flexible conductor non-sheath cable | 300/500V |
| 602271EC08(RV-90) | Internal wiring conductor temperature 90oC flexible conductor non-sheath cable | 300/500V |
| 602271EC52(RVV) | Light-type PVC sheath flexible cable | 300/300V |
| 6002271EC53(RVV) | Normal PVC sheath flexible wire | 300/500V |
| 602271EC56(RVV-90) | Conductor temperature 90oC of heat-resistance light-type PVC sheath flexible wire | 300/300V |
| RVVP | PVC insulation shield PVC sheath flexible cable | 300/300V |
| RVS | PVC insulation stranded connection flexible wire | 300/300V |
| Type | Description | Rated Voltage |
| Z-BYJ-105 | Heat-resistance 105oC flame retardant cross-linked polyolefin insulation cable | 450/750V |
| WDZ-BYJ-105 | Heat-resistance 105oC halogen-free low-smoke flame retardant cross-linked polyolefin insulation cable | |
| Z-RYJ-105 | Heat-resistance 105oC flame retardant cross-linked polyolefin insulation flexible cable | |
| WDZ-RYJ-105 | Heat-resistance 105oC halogen-free low-smoke flame retardant cross-linked polyolefin insulation flexible cable | |
| WDZ-BYJYJ-105 | Heat-resistance 105oC halogen-free low-smoke flame retardant cross-linked polyolefin insulation and sheath cable | 300/500V |
| Z-RYJYJ-105 | Heat-resistance 105oC flame retardant cross-linked polyolefin insulation and sheath cable | |
| WDZ-RYJYJ-105 | Hea-resistance 105oC halogen-free low-smoke flame retardant cross-linked polyolefin insulation and sheath flexible cable | |
| Z-BYJ-125 | Heat-resistance 125oC flame retardant cross-linked polyolefin insulation cable | 450/750V |
| WDZ-BYJ-125 | Heat-resistance 125oC halogen-free low-smoke flame retardant cross-linked polyolefin insulation cable | |
| Z-RYJ-125 | Heat-resistance 125oC flame retardant cross-linked polyolefin insulation flexible cable | |
| WDZ-RYJ-125 | Heat-resistance 125oC halogen-free low-smoke flame retardant cross-linked polyolefin insulation flexible cable | |
| WDZ-BYJYJ-125 | Heat-resistance 125oC halogen-free low-smoke flame retardant cross-linked polyolefin insulation and sheath cable | 300/500V |
| Z-RYJYJ-125 | Heat-resistance 125oC flame retardant cross-linked polyolefin insulation and sheath cable | |
| WDZ-RYJYJ-125 | Hea-resistance 125oC halogen-free low-smoke flame retardant cross-linked polyolefin insulation and sheath flexible cable | |
| Z-BYJ-150 | Heat-resistance 150oC flame retardant cross-linked polyolefin insulation cable | 450/750V |
| WDZ-BYJ-150 | Heat-resistance 150oC halogen-free low-smoke flame retardant cross-linked polyolefin insulation cable | |
| Z-RYJ-150 | Heat-resistance 105oC flame retardant cross-linked polyolefin insulation flexible cable | |
| WDZ-RYJ-150 | Heat-resistance 150oC halogen-free low-smoke flame retardant cross-linked polyolefin insulation flexible cable | |
| WDZ-BYJYJ-150 | Heat-resistance 150oC halogen-free low-smoke flame retardant cross-linked polyolefin insulation and sheath cable | 300/500V |
| Z-RYJYJ-150 | Heat-resistance 150oC flame retardant cross-linked polyolefin insulation and sheath cable | |
| WDZ-RYJYJ-150 | Hea-resistance 150oC halogen-free low-smoke flame retardant cross-linked polyolefin insulation and sheath flexible cable |
| Type | Description |
| RVZ | Copper core PVC insulation flame retardant flecible cable |
| RVVZ | Copper core PVC insulation PVC sheath flame retardant flecible cable |
| Type | Description | Application |
| QVR | Road vehicle copper core PVC insulation low voltage wire | Used vehicle,electrical appliance and instrumentation lies |
| QFR | Road vehicle copper core PVC-NBR coupound insulation low voltage wire | |
| QVR-105 | Road vehicle copper core heat-resistant 105oC PVC insulation low voltage wire | Used to high temperature area and insrumentation lines in vehicle |
| QVVR | Road vehicle copper core PVC insulation PVC sheath low voltage cable | Used to vehicle and hang workshop's electrical appliance lines |

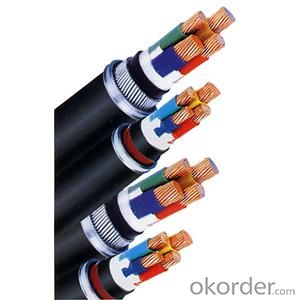

Product Photo:
