PVC Insulated and Sheathed Flat Cable 450/750V

Product Description:

1.Short Description:

High quality 2Cores & 3 core bvvb cable flat cable PVC Insulated and sheathed 300/500V

These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation

1. Voltage rating: 300/500V or 450/750V

2. Standard applied: IEC60227, BS6004, GB/T5023, JB/T8734

3. Conductor: bare solid/stranded copper; class 1 for 1.0mm2, 1.5mm2 and 2.5mm2; class 2 for the others

4. Insulation and sheath: PVC

5. Max. working temp.:  70°C, can be90°C and 110°C as per requirement

6. Main colors:sheath--white/black/grey; 2cores--red&black; 3cores--red, yellow&blue

7. Minimum bending radius: Up to 10mm², 3 x overall diameter;10mm² to 25mm², 4 x overall diameter

8. The cable can be of flame retardance, fire resistance and other property

9.  Remark: We are able to produce 2C, 2C+E, 3C & 3C+E by AS/NZS

2.Parameter

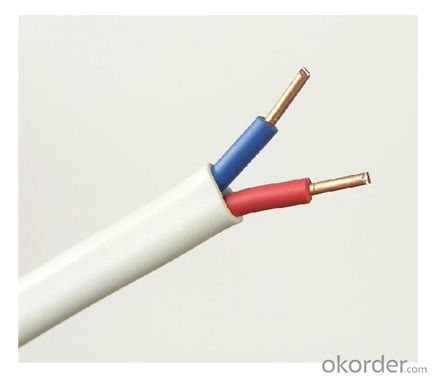

3.Pictures

4.Main manufacturing procedure

1. Copper wire drawing and annealing

2. Copper wire stranding

3. Outer sheath extruding and labeling

4. Spooling
