Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:600 m
Supply Capability:100000 m/month
1. Product Description：
1. Wire - Copper core PVC insulated PVC sheathed flat cable is made in compliance with the national standard and have passed the CCC--China Compulsory Certification, which contains the recondition of national security certificate--CCEE. Imports of Safety and Quality Licensing System--CCIB. China Certification Electromagnetic Compatibility--EMC
2. Range of application: A.C rated voltage 300/500V
3. The permissible continuous operating temperature of wire shall not exceed 70 centigrade and the installation temperature of wire shall not be lower than -15 degree
2. Product Characteristic：
1. Main colors: sheath--white/black/grey; 2cores--red and black; 3cores--red, yellow and blue.
2. Minimum bending radius: Up to 10mm², 3 x overall diameter;10mm² to 25mm², 4 x overall diameter
3. The cable can be of flame retardance, fire resistance and other property
4. Remark: We are able to produce 2C, 2C+E, 3C & 3C+E by AS/NZS
3. Product Specification：
Type | H05VVH2-U, H07VVH2-R, H05VVH2-F, H05VVH4-U, H07VVH4-R, H05VVH4-F, BS6004 624*Y | |
Voltage Rate | 300/500V, 450/750V | |
Cores | 2C, 3C, 2C+E, 3C+E | |
Range of Nominal cross section: | 0.75 mm2 ~ 16 mm2 | |
Application | These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation. | |
Standard | IEC60227, BS6004, GB/T5023, JB/T8734 | |
Constructions | Conductor: Class 1/2 annealed bare copper solid or strands Insulation: PVC Sheath: PVC Core color: White, Grey or others on request | |
Max. Operating Temperature | 70℃, can be90℃ and 110℃ as per requirement | |

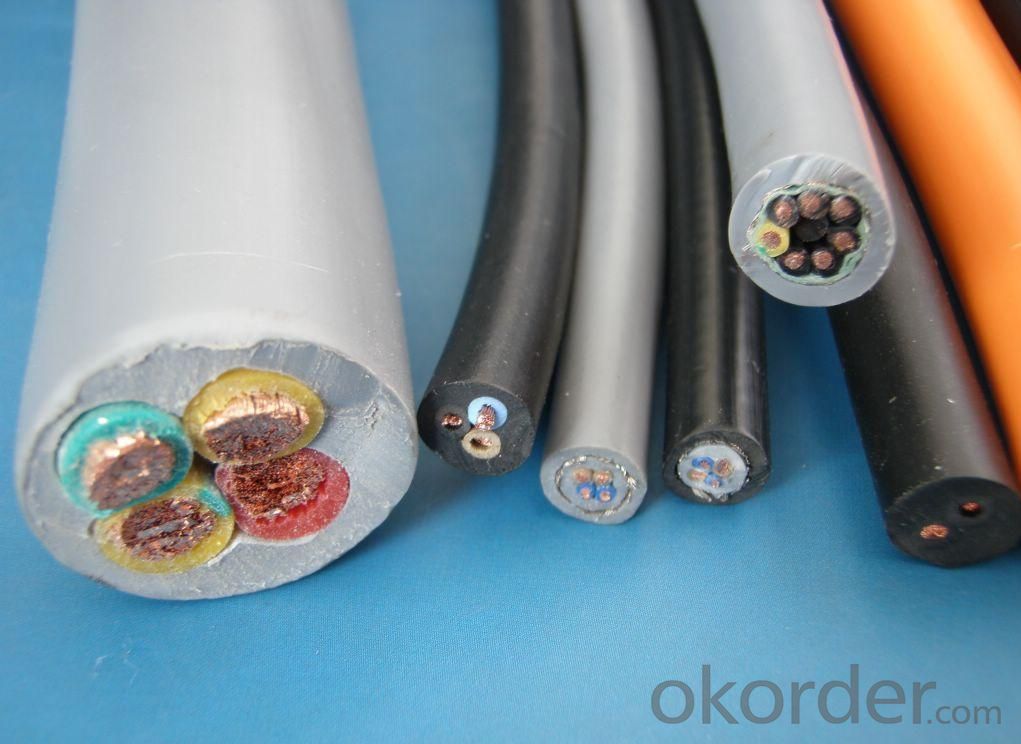

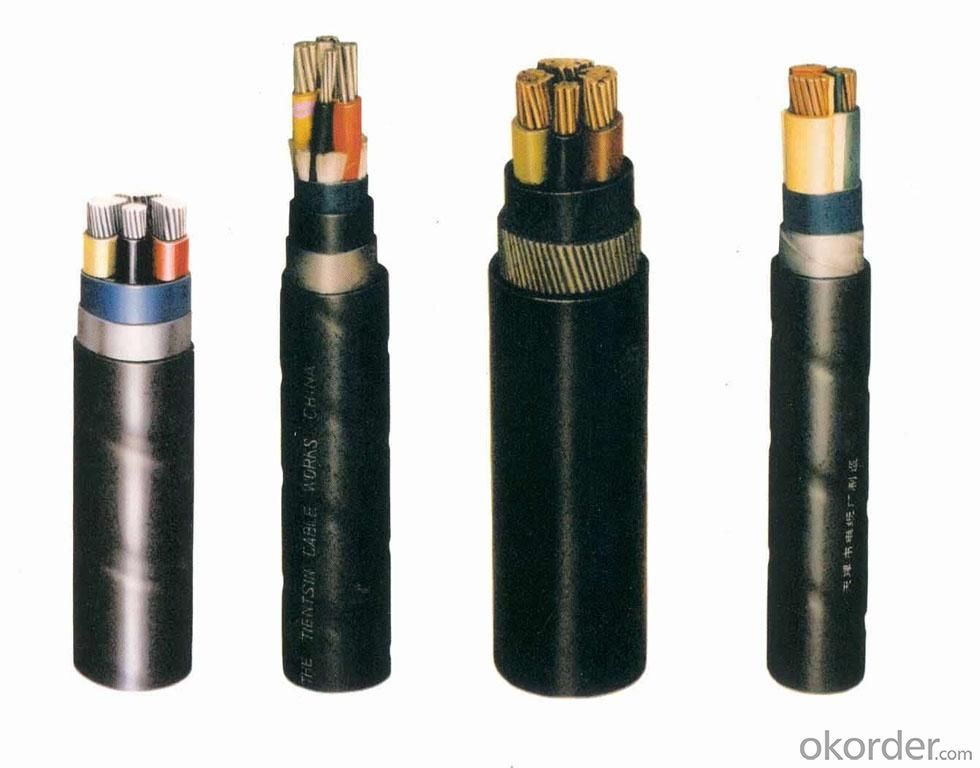

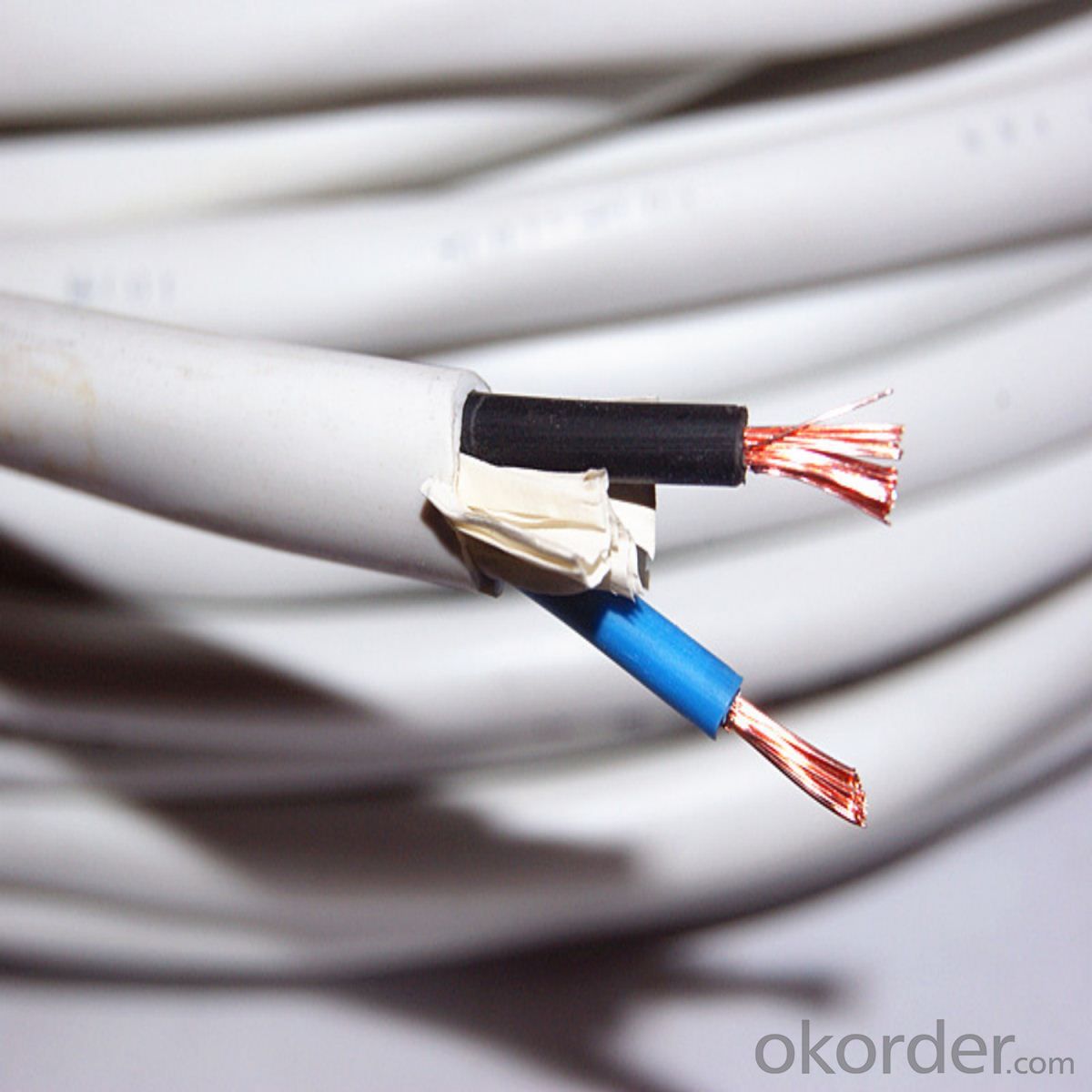

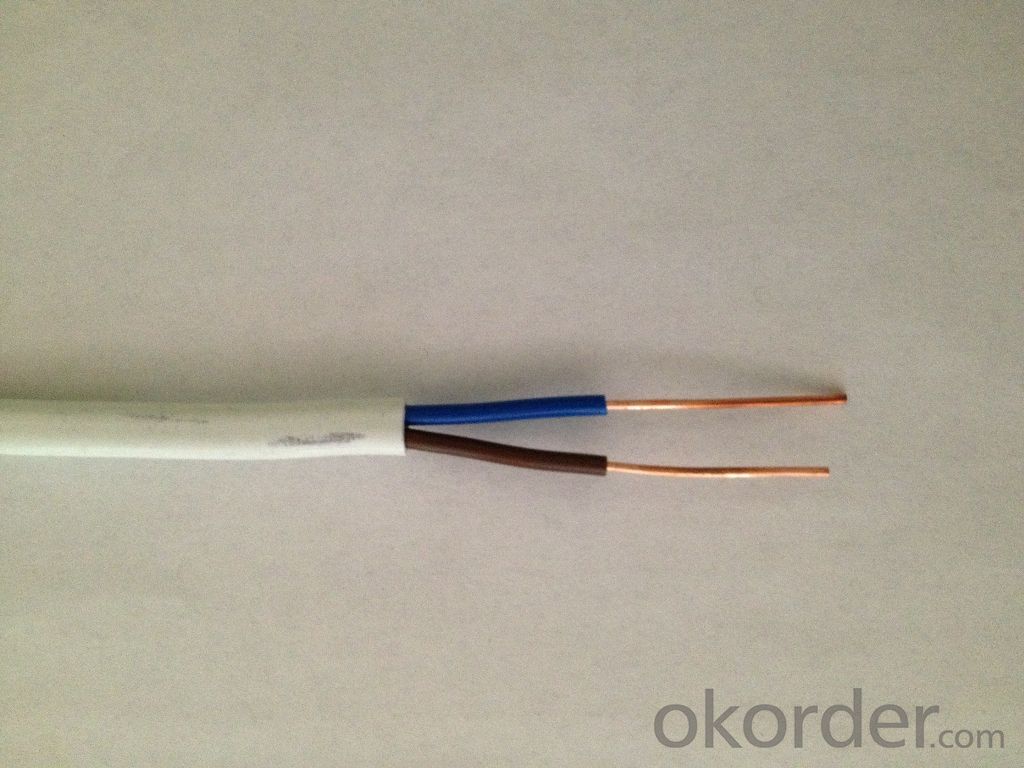

4. Reference Picture：
