Loading Port:Qingdao
Payment Terms:TT OR LC
Min Order Qty:50000 watt
Supply Capability:3000000 watt/month
1. Structure of PV Grid-Tied 5kw Solar Inverter JSI-5000TL Description
1.High Efficiency 97.6%
2.5 Year warranty
3.Transformerless, pure sine wave
4.TUV,VDE,CE,SAA,CEI0-21
2. Main Features of thePV Grid-Tied 5kw Solar Inverter JSI-5000TL Inverter
﹒Compact size, easy installation &maintenance;
﹒Low running noise, highest efficiency;
﹒Wide operating temperature range
﹒At least 5 years warranty
﹒High Quality ,competitive price
﹒TUV, CE, AS4777, G59/2 Certificate

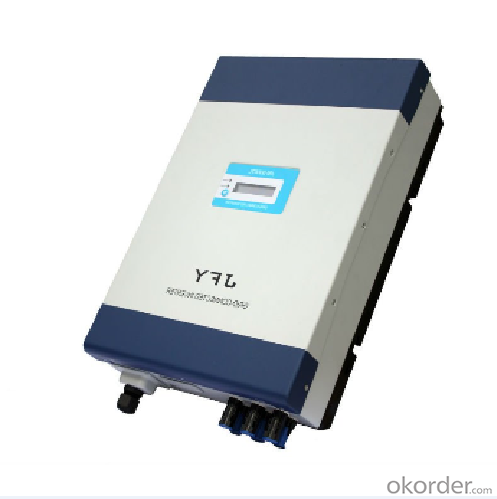

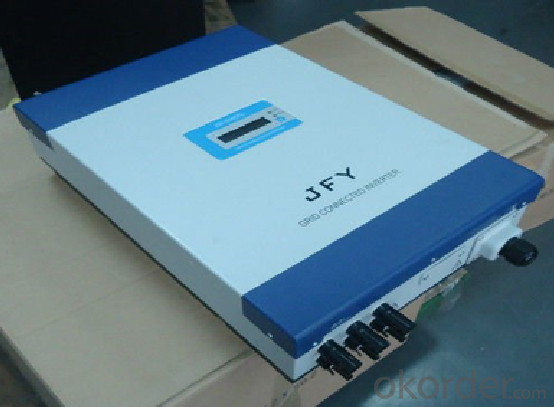

3. PV Grid-Tied 5kw Solar Inverter JSI-5000TL Images
4. PV Grid-Tied 5kw Solar Inverter JSI-5000TL Specification
CHARACTERISTICS | JSI-5000TL |
Input Data(DC side) | |
Max. DC power | 5300W |
Max. DC voltage | 550Vdc |
MPPT Operating range | 100~500Vdc |
Number of parallel inputs | 3 |
Number of MPPT trackers | 1 |
Max. input current (total) | 22.5A |
Output Data(AC side) | |
Nominal output power | 4600W |
Max. Output power | 5000W |
Nominal output current | 20A |
Max. output current | 24A |
Nominal AC voltage | 230Vac |
Possible AC voltage range * | 190~265Vac |
Nominal AC grid frequency | 50Hz |
Possible AC grid frequency range* | 50 ± 5 Hz |
Power factor(cos φ) | >0.99 |
Harmonic distortion(THDI) | <3%(at nominal output power) |
Efficiency | |
Max. efficiency | 97.6% |
Euro efficiency | 97% |
MPPT efficiency | 99.6% |
Genaral data | |
Dimensions (W / D / H) | 345*152*505mm |
Net weight | 23.7Kg |
Operating temperature range | –25 °C ~ +60 °C |
Noise emission (typical) | ≤ 25 dB(A) |
Power consumption at night | 0 W |
Electrical isolation | Transformer-less |
Cooling concept | Natural cooling |
IP Code | IP65 |
Communication | RS-485/RS-232 |
5. FAQ of PV Grid-Tied 5kw Solar Inverter JSI-5000TL
Q1. What is the difference between inverter and solar inverter?
A1. Inverter only has AC inpput, but solar inverter both connect to AC input and solar panel, it saves more power.
Q2. What is the difference between MPPT&PWM?
A2. MPPT has higher efficiency, it can track the max power point and won't waste energy.
Q3. What is the waranty of product?
A3. 12 months.
