Loading Port:SHANGHAI Port
Payment Terms:100%TT
Min Order Qty:1000Sets set
Supply Capability:3000 Set/Day set/month

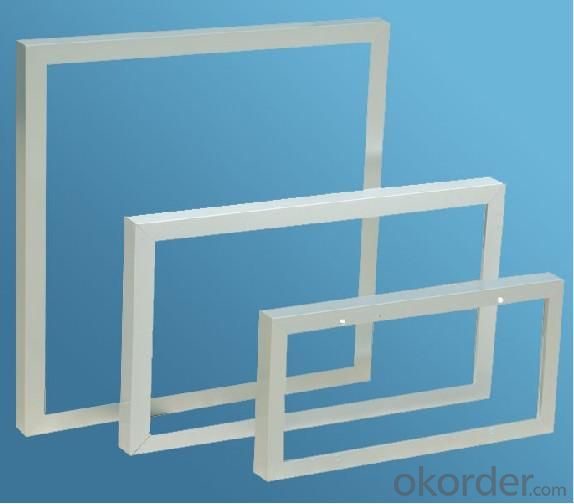

Details Of Photovoltaic Aluminum Frame
|
Specifications of Photovoltaic Aluminum Frame | |||
|
Aluminium frames of solar panel ,it includes planks and frames .The specification and corresponding size of solar battery | |||
|
Dimension |
440*550*25mm |
Surface Treatment |
Anodic Oxidation Sand Blasting |
|
Hardness |
≥10 degree |
Type |
30 Watt |
|
Wall Thickness |
1.2mm |
Film Thickness |
≥15mm |
Deep machining
1.Precise cutting, drilling, tapping, CNC milling, CNC lathe and so on.
2.The precision of machining work can be controlled within +/- 0.02mm.
3.High quality control but low cost.
4.Easy installation
|
Packaging & Delivery ofPhotovoltaicAluminum Frame | |
|
Packaging Detai |
Packaging Detail：Export Carton and Pallet or under customer request. |
|
Delivery Detail：10-20days | |
|
Usage/Application of Photovoltaic Aluminum Frame |
|

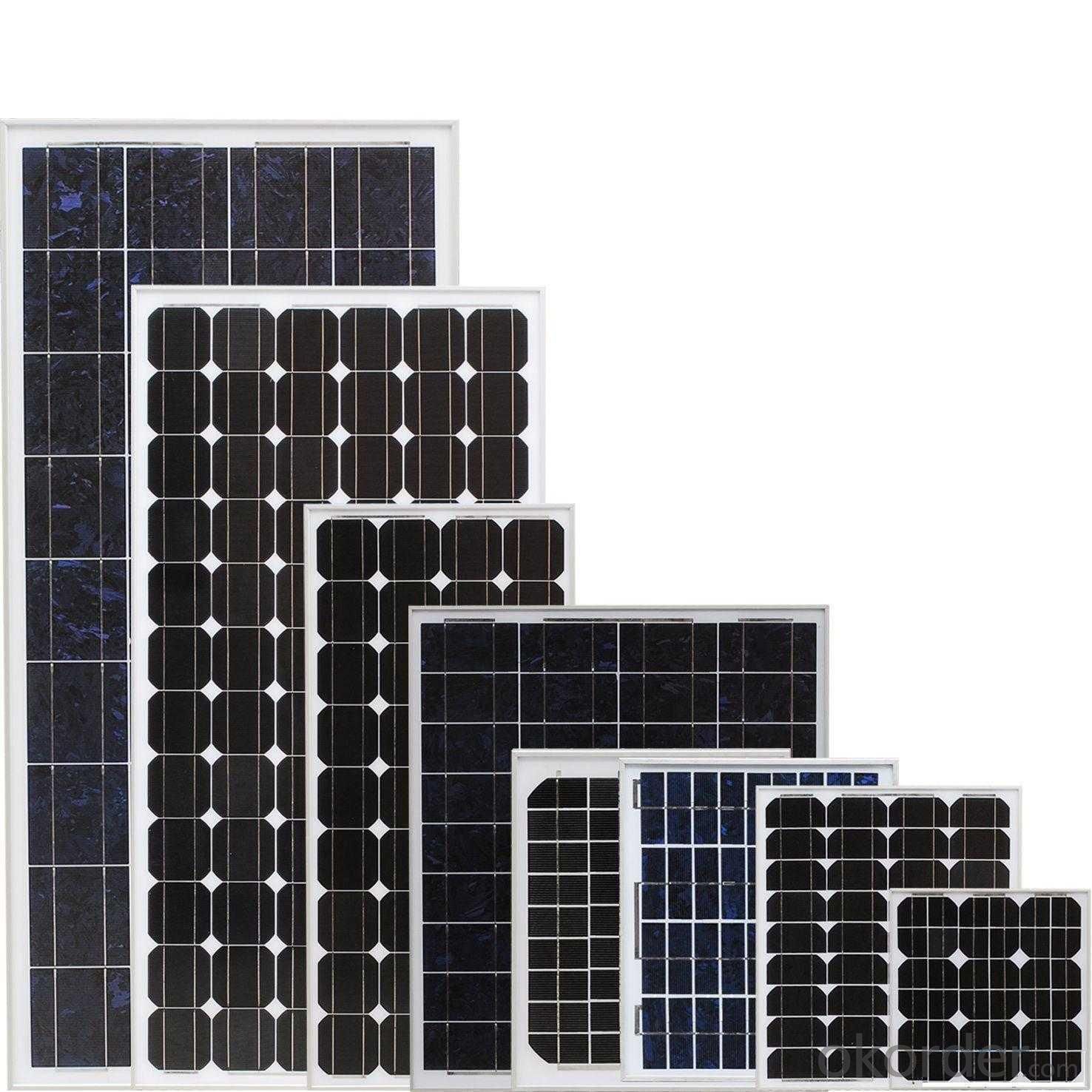

Photovoltaic Aluminum Frame is generally used in the production of solar modules |
Surface Treatment
1.Anodizing: silver/black mainly and other multicolor.
2.Electrophoresis
3.Powder coating/ PVDF polishing/ sand blasting etc.
|
Advantage of Photovoltaic Aluminum Frame |
|
1).Precision machining and cutting: length tolerance can be 0.2-0.5 mm,hole tolerance can be 0.05mm. 2).All processes are to ensure to the good quality and lead time. 3).All OEM is welcome. 4).We are skilled in customizing according to CAD drawing,3D design and sample provided by you. |
