Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 m
Supply Capability:200000 m/month
1.Cable Introduction:
Standard: BS6004 / IEC227
1)Standard
GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997, IEC60227
2) Rated Voltages:
300/500V 450/750V (600/1000V also available)
3) Application
The products is suitable for use in power installations, fixed wiring or flexibleconnections for electrical
appliance like lighting, electronic equipment, instrument and communication equipment with rated
voltage 450/750V or less!
2. Specificatio
Nominal | Conductor | NominalInsulated thick mm | Max overall Dia.mm | Condcutor Resistance at20 | Min insulated | |
1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 |
1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 |
2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 |
4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 |
6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 |
10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 |
16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 |
25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 |
35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 |
50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 |
70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 |
95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 |
3. Packaging & Delivery
Packaging Details: | 1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll. Other lengths available according to client's Request; 2) Inner packing: Wooden reel, plastic reel. 3) Outer packing: Carton box, pull box, pallet. 4) Other packing available according to client's Request. |
Delivery | 15days or as per your request |

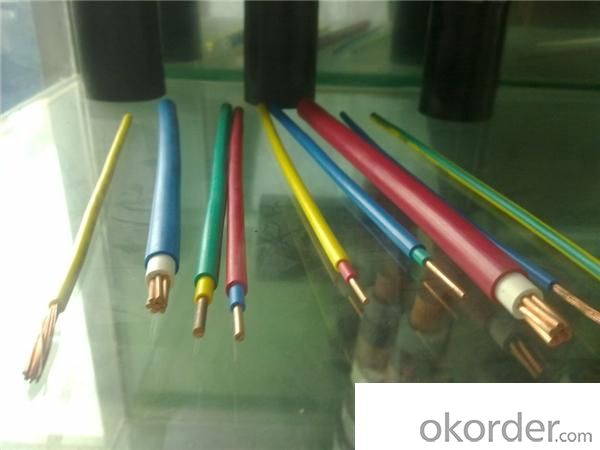

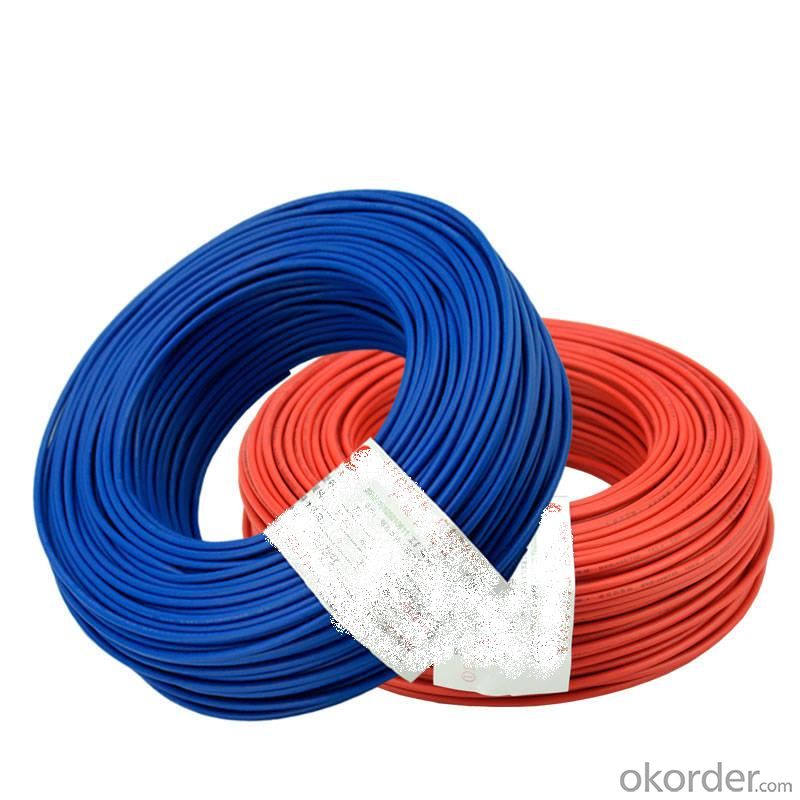

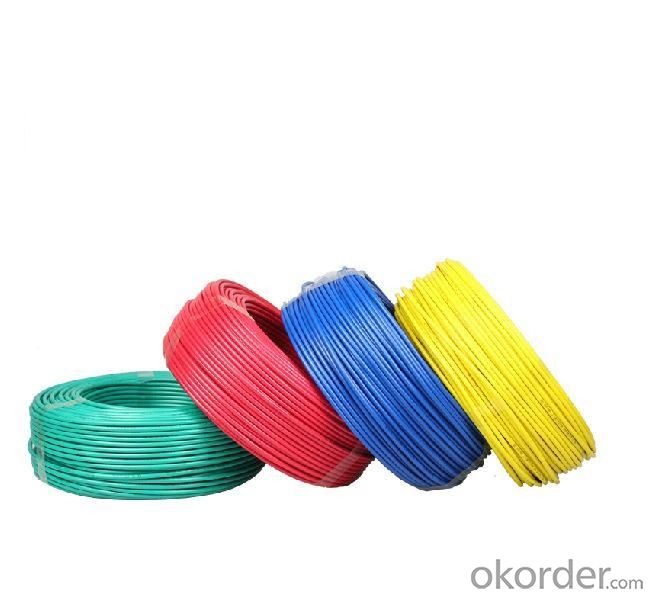

4. Pictures:
