Loading Port:China Main Port
Payment Terms:TT or L/C
Min Order Qty:100pcs pc
Supply Capability:1000pcs per month pc/month
| Packaging Detail: | Neutral color box |
| Delivery Detail: | 7-10 days after getting payment money |

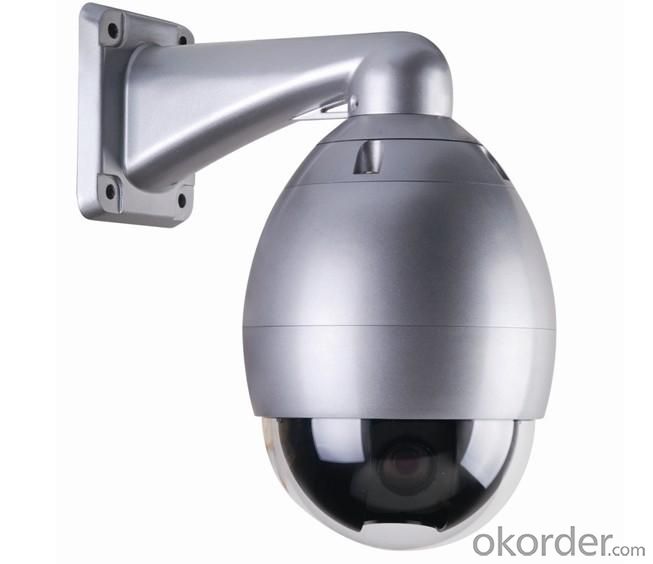

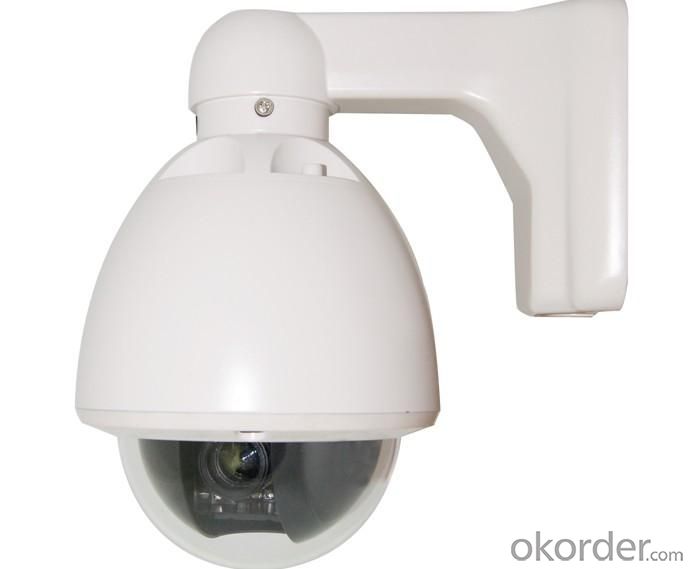

Specification of PTZ,DOME camera
* PWM function, Adopt multi-angle super power Infrared LED, the brightness of image uniform and soft.
* Adopt LED ARRAY Infrared light source, IR distances can reach 150 M.
* IR distance 70M; English/Chinese OSD menu;
* Dome ID, baud rate, communication protocol can be set via the controller;
* Supported Protocols : Pelco-D/P; Others on special request;
* 7",Total metal body construction, waterproof IP 66;
* Optional , 4 Alarm inputs and 2 alarm outputs.
*Optional IP module (built in provision);
| ||||
| Signal System | PAL /NTSC | |||
| Focus Model | Auto / Semiautomatic / Manual | |||
| Communication | RS-485 | |||
| RS-485 Protocols | PELCO_D , PELCO_P | |||
| Baud Rate | 2400 bps/4800 bps/9600 bps | |||
| Supporting All-in-one Module | Sony, Hitachi, SAMSUNG, CNB,LG, China brand etc. | |||
| Cruise Tours | 5 groups | |||
| Preset Points | Max. 256 Points | |||
| Pan/Tilt Speed | 12°/s | |||
| Pan Range | 0º~360º | |||
| Tilt Range | 0° ~ 90º | |||
| Auto Flip | Horizontal 180°,Vertical 90° | |||
| A-B Scan Speed | 5~180°/s (15-64 grade available) | |||
| IR Control | Auto / Manual | |||
| Menu Language | English/Chinese | |||
| Peak Emission Wavelength | 850 | |||
| Leds | 48pcs | |||
| Monitor Output | 1.0V[p-p] / 75Ω, PAL、NTSC, BNC | |||
| Address | 0-255 | |||
| Security | Password protection: configured by the administrator | |||
| Privacy Zones (Masking) | Support | |||
| Heater In Operation | Auto | |||
| Alarm Input | 4 inputs | |||
| Alarm Output | 2 outputs | |||
| Power-off Memory | Support | |||
| Park Action | Line scan | |||
| Protection Level | IP66+ | |||
| Working Temperature | -25℃ ～+60℃ | |||
| Power Supply | DC12V4A | |||
| Power Consumption | ≤45W (PTZ cradle head input power:10W; IR ON input power:35W) | |||
| Material | Aluminum alloy | |||
| Package | 30.5*30.5*39CM | |||
| Net Weight | 6.5KG | |||
| Humidity | ≤95%(no condensation) | |||
| Mount Option | Wall Mount; Corner Mount; Indoor pendant mount; Ceiling Mount | |||
