Loading Port:Qingdao
Payment Terms:TT OR LC
Min Order Qty:50 m.t.
Supply Capability:5000 m.t./month
Description
Printing steel plate is the product based on the metal sheet, of which surface is finally installed of the plastic film(PVC,PE) in addition to being firstly covered with the coating and printed ink in. The coated layer of printing steel olate consists of chemical and filming layer, primer coated layer, pattern printed lay and surface coated layer.The top and back coating shall generally be the application of the weatherproof paint, as well can be application of the paint with special capabilities.
Main Features
Long term usage
Corrosion resistant

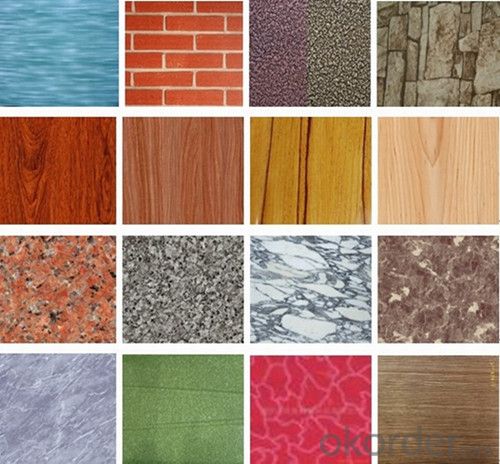

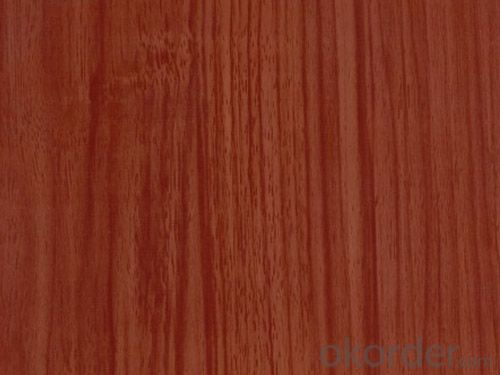

Images
Specification
Base Material: HDGI ALUZINC CR
Grade: SGCC,DX51D,ASTMA653
Thickness: 0.3-0.8 TMT
Width 600-1450mm
Zinc Coating: 60-185g/m2
Paint: PE,PVDF,SMP,HDP
Coil ID:
508/610 recommend 508
Coil Weight: 4-8mt
T BENDING: 0-3T
PENCIL HARDNESS: ≥2H
IMPACT: ≥9J
MEK: ≥100
SALT SPRAY: ≥720hr
FAQ
Standard export packing, 4 eye bands and 4 circumferential bands in steel, galvanized metal fluted rings on inner and outer edges, galvanized metal and waterproof paper wall protection disk, galvanized metal and waterproof paper around circumference and bore protection
