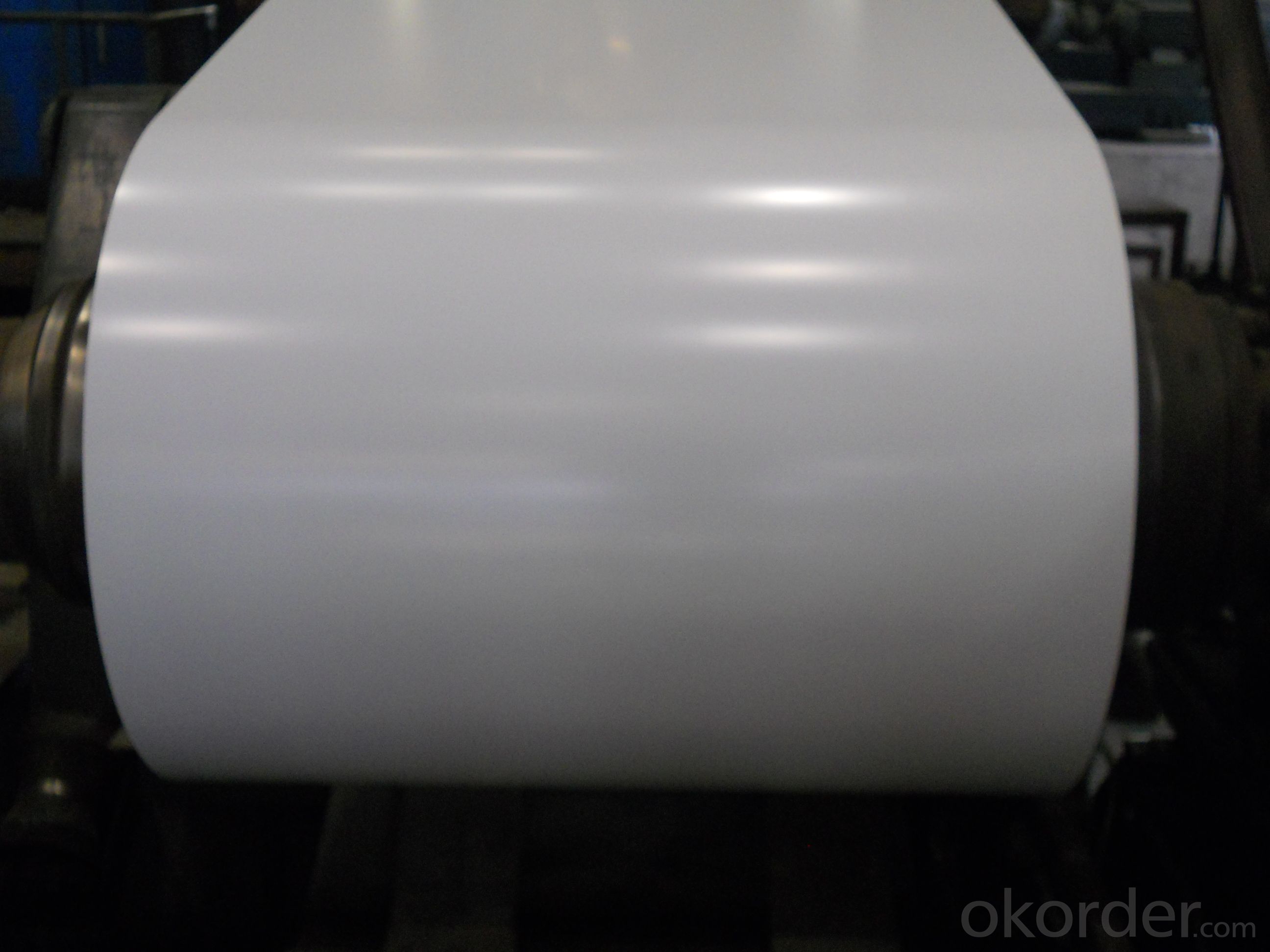

Prepainted Galvanized Steel Sheet In Coils
SPECIFICATION:
Product name | Prepainted Galvanized Steel Sheet In Coils |
thickness | 0.2mm—1.0mm |
width | 600mm—1500mm |
zinc coating | 30g-180g |
Paint Thickness | Top:15-28um, back:5-10um |
standard | ASTM A792, JIS G3321, JIS G3317, GB |
material | SGCC/SGCH |
Base Plate | Hot dipped Galvanized steel sheet,hot dipped aluzinc steel sheet |
Surface Paint | PE,PP |
Color Series | RAL color number series |
Equipment | Double coating one baking |
packing | 1. standard seaworthy package : waterproof paper/iron sheet/steel strip/steel pallet 2. According to customers' requirements |
Coil Wgt. | 3Mt - 8Mt |
Coil ID | φ508mm,φ610mm |
payment | T/T or L/C |
min order | 25 tons |
Capacity | 4000Mt/week |
delivery time | within 40 days upon receipt original L/C or advance payment |
APPLICATION:
1.Buildings and constructions: roofing, ceilings, gutters, venting lines, indoor decorations, window frames, etc
2.Electrical appliances: computer shells, washing machines, refrigerators, dehumidifiers,
video recorders, water heaters, etc.
3. Agricultural equipments: troughs, feeding tools, agricultural driers, irrigation channels, etc.
4. Vehicle parts: back-seat plates of buses and trucks, etc.
