Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:25 m.t.
Supply Capability:100000 m.t./month

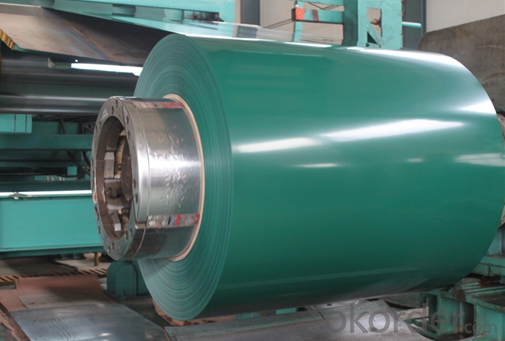

Pre-painted Galvanized Steel Coil/China PPGI for Roof Sheet
Product Description
CNBM Steel Plate Co., Ltd. is a large-scale private enterprise, specialized in producing and selling colored steel coils,PPGI, PPGI for Roof and Clad ,PPGL,GL and GI. We have our own R & D group.
Product Description
NAME: Competitive PPGI for Roof and Clad
SIZE:
Thickness: 0.12-1.5mm
Width: 600mm,750mm,762mm,900mm,914mm,940mm,1000mm,1050mm, 1090mm,1100mm,1200mm, 1219mm, 1250mm,1250mm
Length: According to the customer's request
Hardness:Soft( around HRB 65) ,full hard (HRB90-95)
Strength of Extension: more than 300Mpa
Yield Strength:370-380Mpa
Thickness tolerance: +/-0.02 mm(0.01 as you requested)
Width tolerance:+/ -2.0mm
ZINC, PAINT & COLOR:
Zinc coating: 30-275G/M2
Paint thickness: Top 15-25um + Back 8-10um
Paint: Epoxy Polyester, silicon modified polyesters, polyvinylidene fluoride, high-durability polyester
Color: As the RAL color standard or customer's sample
PACKING:
Coil weight: 3-5tons
ID: 508mm\610mm
Standard sea worthy package
STANDARD:
JIS G3302-1998/EN10142/ASTM A653/ASTM A792/ AISI/BS/ DIN/GB
Base mental: Hot galvanized steel,SGCC,SPCC,SPHC, DX51D+Z, Q195,etc
Quality: CQ,DQ,DX51D
Lifespan: 10-15 years
APPLICATION:
it is ideal for a wide range of applications,, such as pre-engineered buildings, architectural panels, roofing, siding, cladding, and many other building components.and also used back plate of appliance; wide range of construction, furniture industry, transportation industry, etc.
Base mental | hot galvanized steel |
Thickness | 0.12-1.5mm |
Width | 600-1500mm |
Coil Weight | 3-5ton |
Quality: | DX51D DQ CQ |
Color | all RAL colors or as per customers' sample |
Zinc-coating | 30g/m2-275g/m2 |
Coil ID | 508mm-610mm |
Packing | standard seaworthy package |
Technique | cold rolled, hot-dipped galvanizing, color coated |
Painting | Top and bottom: 20mic+5mic RMP |
Tolerance | Thickness: +/-0.02mm |
Description | Pre-painted Steel Coil uses hot galvanized steel as its basic material, factory adopts advanced equipment to degrease, rinse, transform the galvanized steel, then make primary and refined lavation to the steel coils. |
application | They are mainly applied for steel structure buildings, household appliance, furniture, transportation and other industries |
feature | Pre-painted Steel Coils have excellent performance of decoration, corrosion resistance etc. |
The special order can be negotiated | |
FAQ
1.What's your MOQ?
25MT, it is for one container.
2.Do you have QC teams?
Yeah, sure, our QC team is very important, they will keep the quality control for our products.
3.Are the products tested before shipping?
Yes, all of our PPGI and GI was qualified before shipping. We test every batch every day.
4. Is the sample available?
Yes, samples can be sent for test if you need.
