Pre-Painted Galvanized/Aluzinc Steel Sheet in Coils in Orange Color Good Quantity

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:100 m.t.

Supply Capability:10000 m.t./month

Product Description:

1.Pre-Painted Galvanized/Aluzinc Steel Coil Description

Pre-painted Galvanized/Aluzinc Steel Coil with GI or Aluzinc as base metal,after pretreatment,degrease , chemical treatment and liquid dope with several layers of color ,

2.Main Features of the Pre-Painted Galvanized/Aluzinc Steel Coil

• Superior durability

• High manufacturing accuracy

• High strength

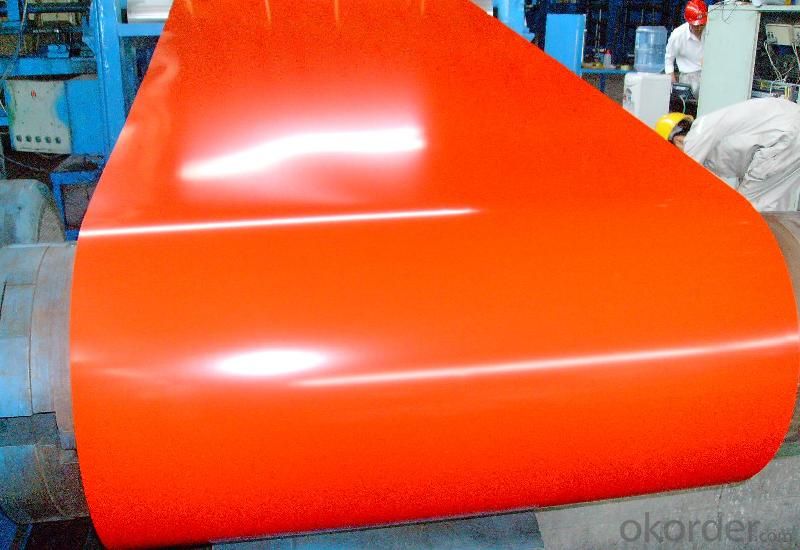

3.Detail Images of Pre-Painted Galvanized Steel Coil



Pre-Painted Galvanized/Aluzinc Steel Sheet in Coils in Orange Color Good Quantity

Pre-Painted Galvanized/Aluzinc Steel Sheet in Coils in Orange Color Good Quantity





4.Quick Details of the Pre-Painted Galvanized/Aluzinc Steel Coil

Packing: Export Standard Packing (full wrapped with anti-damped paper inside, iron sheet wrapped outside, and bundled by iron strips)

Delivery:30-45 Days

Size can be customized
Financial support with max 180 days unsance L/C
Prime quanlity, competitice price
Fast delivery time.

5.Specification of PPGI / GI Steel Sheet/Coil

1) AVAILABLE DESIGNATION OF PPGI/PPGL Prepainted Galvanized/Galvalume Steel Coils

Quality

Q/BQB 440-2003

JIS G3312-1994

EN 10326-2004

ASTM A653-02a

EN 10327-2004

(BASE PLATE)

(BASE PLATE)

Commercial Steel

TDC51D

CGCC

DX51D+Z/AZ

CS Type A/B/C

Forming Steel

(TSt01,TSt02,TSt03)

CGCD1

FS Type A, Type B

Drawing

TDC52D /TDC53D

-

DX52D+Z/AZ

DDS TYPE A/C

Steel

DX53D+Z/AZ

Structural

TS280GD(TStE28)

CGC400

S280D+Z/AZ

SS275

Steel

TS350GD(TStE34)

CGC440

S350D+Z/AZ

SS340 Class1

2) OUR SPECIFICATION OFPPGI/PPGL (Prepainted Galvanized/GalvalumeSteel Coils)





Thickness

Width

Length of plate

Inner diameter of coil

0.16-1.2mm

800/914/1000/1200/1219/1250mm

1000-6000mm

508mm/610mm



Coated Mass OF PPGI/PPGL (Prepainted Galvanized/GalvalumeSteel Coils) :



Base plate

Available Coated Mass(g/m^2)

Galvanized Steel

30,80, 100, 120, 160, 180, 200, 275

Galvalume Steel

30,50, 70, 150 ect.



Available Painting OF PPGI/PPGL (Prepainted Galvanized/GalvalumeSteel Coils) :



Category of Painting

Item

Code

Polyester

PE

High-durability polyester

HDP

Silicon modified polyesters

SMP

Polyvinylidene fluoride

PVDF

Easy-Cleaning

Painting Thickness

Top side: 5+20microns;

Bottom side: 5~7microns.

Color System

Produce according to RAL Color System or as per buyer’s color sample.

Painting structure

Top surface

Bottom surface

Primer coating

No coating

1/0

Primer coating

Primer coating

1/1

Primer coating + Finish coating

No coating

2/0

Primer coating + Finish coating

Primer coating or single back coating

2/1

Primer coating + Finish coating

Primer coating + Finish back coating

2/2

Note: Protect film available





5.FAQ

 1. What’s the application of this product?

Roof, roof structure, surface sheet of balcony, frame of window, etc.

2. What’s the brand of the paint?

We use the best brand of all of the word—AKZO.

3. How to guarantee the quality of the products

We have established the international advanced quality management system,every link from raw material to final product we have strict quality test;We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance.
