Loading Port:Qingdao
Payment Terms:TT OR LC
Min Order Qty:1 set
Supply Capability:20 set/month
Abstract:

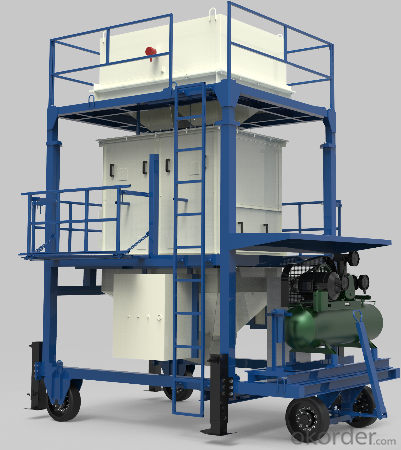

Pre-determined weight packing scale (also called packing scale or filling scale) is a kind of automatic scale which divides bulk material into smaller load with equal weight according to pre-set program and weigh.
Main uses:
It is suitable for weighing material in the industries such as grain, fodder, petroleum, metallurgical, chemical, building material and port.
Characteristics of product
Various interfaces；
Automatic and manual taring;
Total weights display and total bags display;
Various functions such as weight-setting, storage and revision;
The zero-setting function and automatic zero tracking function;
Having coarse and fine feeding, precise weight and high accuracy.
Type | LCS-10-DL | LCS-25-DL | LCS-50-DL | LCS-100-DL | |
Weighing range (kg) | 5-10 | 10-25 | 20-50 | 40-100 | |
Division (g) | 2 | 5 | 10 | 20 | |
Air resource | Pressure (MPa) | 0.5-0.8 | |||
Consumption (m3/hour) | 5 | 8 | 10 | 20 | |
Operating conditions | Temperature (℃) | -20 - +45 | |||
Relative humidity | ≤90%RH | (No condensation) | |||
Our company also produces load cell, strain gauge, weighing indicator and scales such as truck scale, platform scale and hopper scale.
