Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:20 unit/month

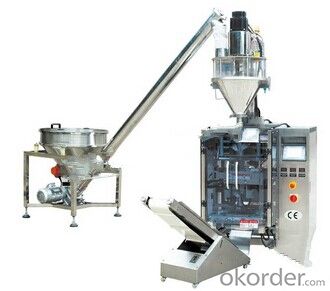

Powder Automatic Vertical Form-Fill-Seal Machine(SK-200FT/SK-220FT)
Applications:
Suitable for packing milk powder, coffee powder,flour,starch,washing powder,chocolate powder,cocoa powder,ice cream powder,nutrient additives,food ingredient,chili powder,pharmaceutical powder and so on.
Features:
1. Auger filler is driven by servomotor to reach the goal of mixing,metering and filling material. Have advantage of sensitive operation, quick measuring, high precision and stable performance.
2. Stainless steel open type material box,which is convenient to clean and meet the requirements of enterprise safety and health management.
Optional Function:
1. Hole punch device
2. Tear notch device
3. Link bag device
4. Flip device
5. Gusset bag
6. Dust collected device
7. Static charge Eliminator
8. PE bag device
Optional External Device:
1. Air Compressor
2. Check weigher
3. Metal detector
Model | SK-200FT | SK-220FT |
Air Consumption | 0.65Mpa,2.5M3/min,6kg/cm2 | 0.65Mpa,3M3/min,6kg/cm2 |
Metering Device | Auger filler | |
Metering Accuracy | ±2g (depend on products) | |
Take Away Speed | Max 60bags/min | |
Packing Film Width | 120-380mm | 180-420mm |
Bag Length | 80-240mm | 80-300mm |
Bag Width | 50-180mm | 80-200mm |
Packing Film Roll Diameter | Max.360mm | |
Packing Speed | 5-60bags/min | |
Packing Film Thickness | 0.04-0.08mm | |
Packing Film Material | OPP/CPP,OPP/PE,BOPP/VMPET/PE etc. | |
Power of SK-200 | 220V,50/60Hz,2.4Kw | |
Power of Screw Material Elevator | 380V,50Hz,750W | |
Power of SK-130 | 220V,50/60Hz,40W | |
Kindly reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame

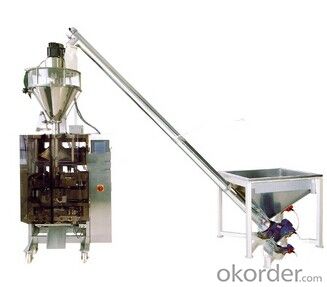

Vertical Form-Fill-Seal Machine for powder (SK-420FT)
Model | SK-420FT |
Air Consumption | 0.65Mpa,3M3/min,6kg/cm2 |
Metering Device | Auger filler |
Metering Accuracy | ±2g (depend on products) |
Take Away Speed | Max 60bags/min |
Packing Film Width | 180-420mm |
Bag Length | 80-300mm |
Bag Width | 80-200mm |
Packing Film Roll Diameter | Max.360mm |
Packing Speed | 5-60bags/min |
Packing Film Thickness | 0.04-0.08mm |
Packing Film Material | OPP/CPP,OPP/PE,BOPP/VMPET/PE etc. |
Power of SK-420 | 220V,50/60Hz,2.4Kw |
Power of Screw Material Elevator | 380V,50Hz,750W |
Power of SK-130 | 220V,50/60Hz,40W |
Kindly reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame
Powder Automatic Vertical Packaging Machine (SK-520FT,SK-620FT,SK-720FT)
Model | SK-520FT | SK-620FT | SK-720FT |
Air Consumption | 0.65Mpa,3M3/min,6kg/cm2 | ||
Metering Device | Auger filler | ||
Metering Accuracy | ±1-2g | ||
Take Away Speed | Max 60 bags/min | ||
Packing Film Width | Max 520mm | Max 620mm | Max 720mm |
Bag Length | 80-350mm | 100-400mm | 180-450mm |
Bag Width | 100-250mm | 150-300mm | 180-350mm |
Packing Film Roll Diameter | Max.360mm | ||
Packing Speed | 5-50bags/min | ||
Packing Film Thickness | 0.04-0.08mm | ||
Power of SK-520/620/720 | 220V,50/60Hz,3Kw | ||
Power of Screw Elevator | 380V,50Hz,750W | ||
Power of SK-130 | 220V,50/60Hz,40W | ||
Kindly reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details
2. Bag width & bag length
3. Bag shape
4. Packing film material
5. Machine frame
