Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:10000 PCS
Supply Capability:50000000 PCS/month
Product Description
Solar Polycrystalline Series Panels
Introduction of our company
We are internationally acclaimed enterprise which specializes in manufacturing of PV solar modules. It is part of our companies, boasting of a glorious history of over 40 years in engineering and manufacturing activities.
Headquartered in wuxi we own one of the most technologically advanced solar PV module manufacturing facilities in India. Our ISO 9001-2008 accredited manufacturing plant, located in the Special Economic Zone (SEZ) of Falta, West Bengal, is spread over a sprawling 40,000 sq ft area and boasts of a 150 MW installed production capacity.
Having built a strong foundation in the sustainable energy market and being one of the front-runners among leading solar PV module manufacturers, Our company has not only fostered innovation but has built trust, honesty and social responsibility.
Customer satisfaction is considered to be the first priority in our organization. We are known for our innovation, technology, skill and dedication.
We believes that Innovation is the key factor to success, starting with module manufacturing and then gradually expanding into system integration and providing turnkey power solution for both on and off grid applications. As a part of our expansion plan to be among the largest solar module manufacturers, we look forward to include solar cells and wafers into our manufacturing base.
Characteristics of Polycrystalline Solar Panels
I Solar Cell : High efficiency crystalline solar cell. Even if under the weak light, the solar module can produce maximum power output.
II Tempered glass (toughened glass): Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.
III EVA and TPT: Using high quality EVA and TPT to prevent destroying and water.
IV AI frame: Without screw, corner connection. 6 holes on the frame can be installed easily.

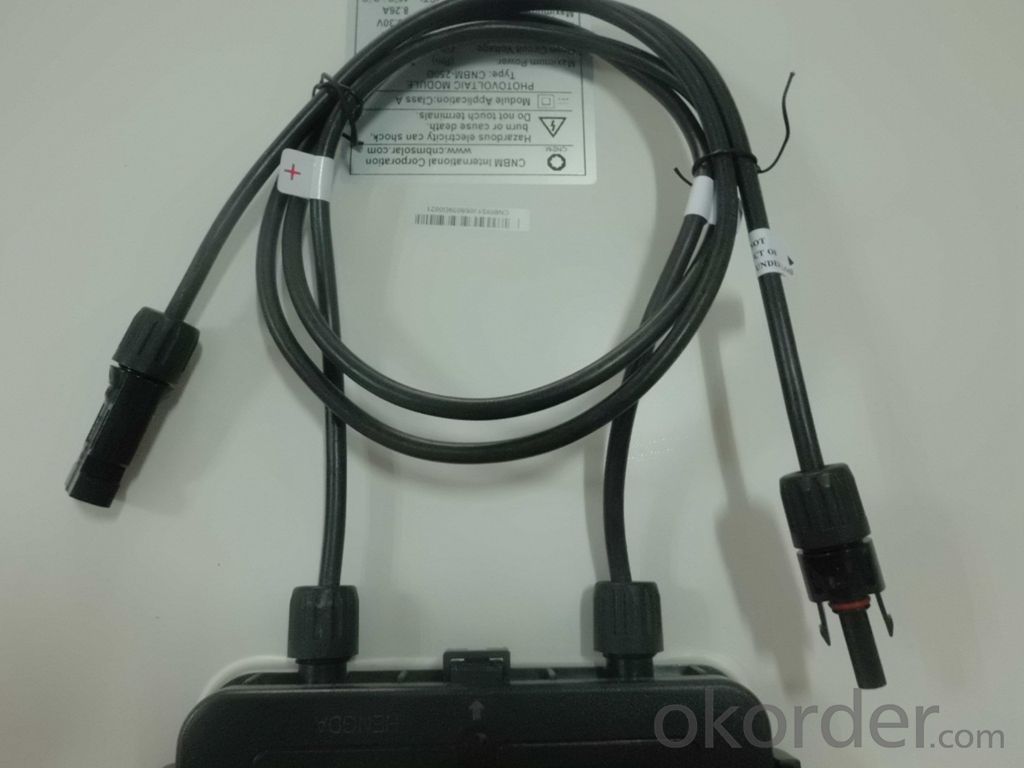

V Junction box: Multi function junction box with water proof.
VI Long lifetime: ≥25 years; Less power decrease
VII Good performance of preventing from atrocious weather such as wind and hails.
VIII Resisting moisture and etching effectively, not effected by geology.
Standard Test Conditions of Polycrystalline Solar Panels
The opto-electrical specifications shown below are stabilized values being measured at Standard Test Conditions, Irradiance: 1000W/m2, Spectrum: AM1.5 at 25°C, The info below is subject to manufacturing tolerances. Where appropriate minutes of measurement are available and are used for the dimensioning of the installation.
Advantages of Polycrystalline Solar Panels
1.High reliability with guaranteed -3% to +5% power output tolerance, ensuring return on investment
2. High conversion efficiency based on leading innovative photovoltaic technologies
3. Withstands high wind-pressure and snow load, and extreme temperature variations
4. Attractive appearance Unique frame design, high mechanical strength, and easy Installation
Characteristics of Polycrystalline Solar Panels
Max Power Voltage Vmp (V) | 17.6V | 17.4 V |
Max Power Current Imp (A) | 6.82A | 6.33A |
Open Circuit Voltage Voc (V) | 22.6V | 22.4V |
Short Circuit Current Isc (A) | 7.26A | 6.87A |
Max Power Pm (W) | 145W | 145W |
Temperature Coefficient of Cells
NOCT | 47℃±2℃ |
Temperature Coefficients of Isc (%/℃) | 0.06 |
Temperature Coefficients of Voc (%/℃) | -0.33 |
Temperature Coefficients of Pmp (%/℃) | -0.45 |
Mechanical Data Solar Polycrystalline Series
Power | 120W/120W |
Dimension | 1219×670×30mm/1120×670×30mm |
Weight | 7.7 kg/8.4kg |
Tolerance | ±3% |
The dimension of the modules can be changed according to the demand of clients Limits.
Operating Temperature | –45 °C to +80°C |
Storage Temperature | –45 °C to +80°C |
Max System Voltage | 700V |
Guarantee Solar Polycrystalline Series Panels
Products Guarantee | 2 years free from defects in materials and workmanship |
Performance Guarantee | No less than 90% within 10yrs and no less than 80% within 25yrs |
Certificates | IEC, ISO, TUV, CE |
Dimension of Solar Polycrystalline Series Panels
FAQ
We have organized several common questions for our clients，may help you sincerely：
1. What’s price per watt?
A: It’s depends on the quantity, delivery date and payment terms of the order. We can talk further about the detail price issue. Our products is high quality with lower price level.
2. Can you tell me the parameter of your solar panels?
We have different series of cells with different power output, both from c-si to a-si. Please take our specification sheet for your reference.
3. How do you pack your products?
We have rich experience on how to pack the panels to make sure the safety on shipment when it arrives at the destination.
4. What is your warranty system?
Our product performance guarantees for 25 years
• 12 years guarantee for workmanship
• Timeliness of delivery
• Quality Products certified (TÜV, UL, CE, ISO)
5. How do you pack your products?
We have rich experience on how to pack the panels to make sure the safety on shipment when it arrives at the destination.
