Loading Port:Tianjin
Payment Terms:TT or LC
Min Order Qty:4200 watt
Supply Capability:600000 watt/month
Specifications of Poly Solar Cells
Format | 156 mm × 156 mm ± 0.5 mm |
Thickness- | 210μm ± 40 μm |
Front (-) | 1.5mm bus bars (silver),blue anti-reflection coating (silicon nitride) |
Back (+) | 2.5mm wide soldering pads (silver) back surface field (aluminium) |
Temperature Coefficient of Poly Cells
Voc.Temp .coef.%/K | -0.351%/K |
| Isc.Temp .coef.%/K | +0.035%/K |
| Pm.Temp. coef.%/K | -0.47%/K |
Electrical Characteristic of Poly Cells
Efficiency | Efficiency | Pmax(W) | Average | Impp(A) | Vmpp(V) | Isc(A) | Voc(V) |
1720 | 17.20~17.40 | > 4.186 | > 4.186 | 7.94 | 0.528 | 8.515 | 0.626 |
1700 | 17.00~17.20 | 4.137~4.186 | 4.161 | 7.905 | 0.525 | 8.482 | 0.624 |
1680 | 16.80~17.00 | 4.088~4.137 | 4.113 | 7.863 | 0.521 | 8.402 | 0.623 |
1660 | 16.60~16.80 | 4.040~4.088 | 4.064 | 7.825 | 0.519 | 8.358 | 0.622 |
1640 | 16.40~16.60 | 3.991~4.040 | 4.015 | 7.769 | 0.517 | 8.304 | 0.621 |
1620 | 16.20~16.40 | 3.942~3.991 | 3.967 | 7.713 | 0.514 | 8.248 | 0.619 |
1600 | 16.00~16.20 | 3.894~3.942 | 3.918 | 7.67 | 0.511 | 8.204 | 0.616 |
Advantages of Poly Solar Cells
1. High efficiency and High power.
2. Long-term electrical stability.
3. Lowest price and Fastest delivery.
4. Good quality and good service.
5. Bulk supply
6. Good Warranty
7. Big Sale
8. More than 25 years on the lifetime.
Usage and Applications of Poly Cells
Solar cells are often electrically connected and encapsulated as a module.
Photovoltaic modules often have a sheet of glass on the front (sun up) side, allowing light to pass while protecting the semiconductor wafers from abrasion and impact due to wind-driven debris, rain, hail, etc. Solar cells are also usually connected in series in modules, creating an additive voltage.
Connecting cells in parallel will yield a higher current;our solar cells have passed IEC Certification.
With high quality and stable quality. Our Cells can greatly improve the performance of Solar Modules.
Packaging & Delivery of Poly Cells
Carton Box Package and Deliver by air. It should be noticed that it should be avoid water, sunshine and moist.

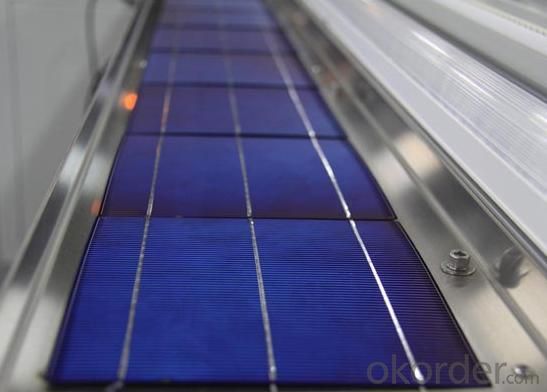

Factory Picture of Poly Cells

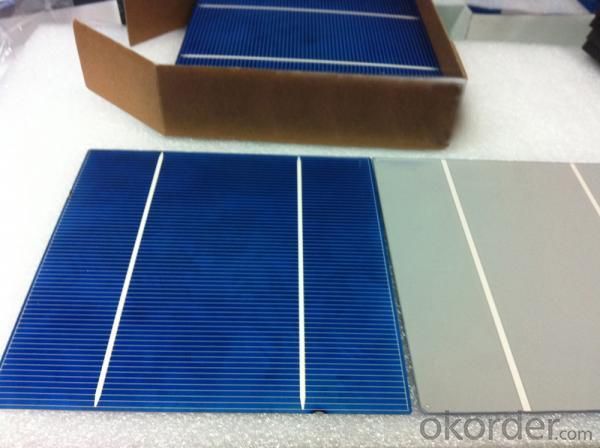

Package Picture of Poly Cells
Polycrystalline solar cells 2BB/3BB combines the high conversion efficiency monocrystalline silicon cells and preparation of amorphous silicon thin film materials as well as long-life battery, etc. relatively simplified new generation of batteries, the conversion efficiency is generally about 12%, slightly lower than the silicon solar cells, there is no obvious efficiency recession, and may be prepared on an inexpensive substrate material, the cost is much lower than silicon cells, and more efficient than amorphous silicon thin film batteries.
From the production cost, than monocrystalline silicon solar cells cheaper, simple materials, saving power consumption, lower overall production costs, and therefore get a lot of development. In addition, Polycrystalline solar cells 2BB/3BB battery life is also shorter than the single crystal silicon solar cells.
Monocrystalline silicon solar cell production requires large amounts of high-purity silicon material and manufacturing process complexity of these materials, power consumption is large, the total production cost of solar cells has over one-half. Coupled with cylindrical silicon rods drawn, sliced wafer production of solar cell is composed of low solar plane component. Therefore, since the 1980s, some European and American developed countries put Polycrystalline solar cells 2BB/3BB.
Has been the focus of a single crystal to polycrystalline direction, mainly due to; [1] can supply less and less solar cell material end to end; [2] in terms of solar cell, a square substrate is more cost-effective, and by casting method polysilicon direct solidification method can be directly obtained rectangular materials; the production process [3] polysilicon continue to make progress, automatic casting furnace each production cycle (50 hours) can produce over 200 kg ingots, grain size reaches cm level; [4] Since the last decade of research and development of single-crystal silicon technology quickly, which technology has also been applied to the production of polycrystalline silicon cells, such as selective etching the emitter, back surface field, corrosion suede, surface and bulk passivation , thin metal gate electrode, using screen printing technology allows the width of the gate electrode is reduced to 50 m, height of 15 m or more, rapid thermal annealing technology for polysilicon production process can significantly shorten the time, single-chip thermal process time can be less than a minute to complete, using the technology in the 100 cm2 polycrystalline silicon sheet made cell conversion efficiency over 14%. According to reports, the 50 to 60 micron substrate made of polysilicon cell efficiency of over 16%. The use of mechanical groove, screen printing technology in 100 square centimeters crystal efficiency more than 17%, no mechanical groove in the same area on the efficiency of 16%, using buried gate structure, mechanical groove in the 130 cm2 polycrystalline on the cell efficiency reached 15.8%.
