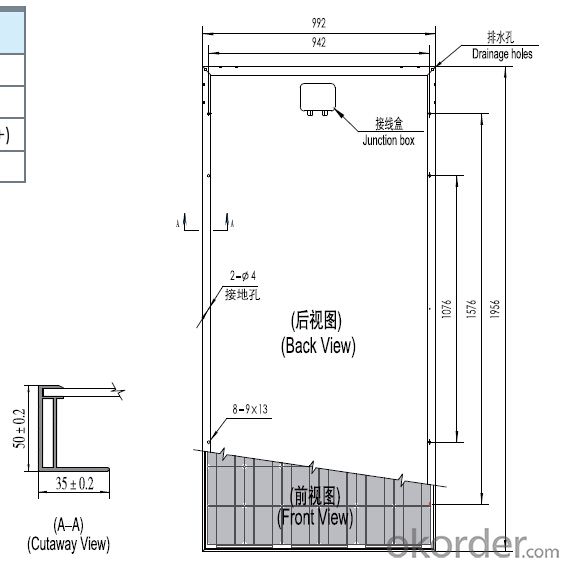

1. Structure of Polycrystalline Silicon Solar Panel Type CR290P-CR250P
Solar modules, which are widely used in ground mounted utility-scale PV plants, large-scale and small civil and commercial power generating system such as BIPV combined to the grid, roof-mounted PV power system, rural electrification, communications, emergency auxiliary power.
Solar PV module is comprised of some solar cells which are connected in serial with high efficiency and enhanced reliability.
2.Professional Certificate of Polycrystalline Silicon Solar Panel Type CR290P-CR250P:
3. Main Features of Polycrystalline Silicon Solar Panel Type CR290P-CR250P
High wind-pressure and snow load, and easy installation
Water resistant junction box
Design to meet unique demand of customer
25 year poweroutput warranty
4.Polycrystalline Silicon Solar Panel Type CR290P-CR250P Images
5. Polycrystalline Silicon Solar Panel Type CR290P-CR250P Specification
Module type | CR290P | CR280P | CR270P | CR260P | CR250P |
Cell type | 156mm × 156mm | ||||
No. of cells and connections | 72(6×12) | ||||
Dimension of module (mm) | 1956×992×50 | ||||
Weight of module (kg) | 23.5 | ||||
Maximum Power (Pm) | 290W | 280W | 270W | 260W | 250W |
Open-circuit voltage (Voc) | 44.2V | 44.0V | 44.0V | 43.8V | 43.6V |
Short-circuit current (Isc) | 8.75A | 8.56A | 8.42A | 8.35A | 8.30A |
Volatage at Pmax (Vmp) | 36.2V | 35.8V | 35.4V | 35.0V | 34.4V |
Current at Pmax (Imp) | 8.02A | 7.83A | 7.63A | 7.43A | 7.27A |
Maximum system voltage | 1000VDC | ||||
Operating temperature | -40℃ to +85℃ | ||||
Polycrystalline Silicon Solar Panel Type CR290P-CR250P I-V Characteristics Graph
6. FAQ of Polycrystalline Silicon Solar Panel Type CR290P-CR250P
(1) Can you offer the test report of the module?
Sure. All the solar modules must pass necessary tests including EL test and ultra-red test and other visual test of the apperance, and the test report presents all the detailed data of the modules.
(2) How to confirm about the quantity and the type of solar module?
It depends on the solar system where you want to put into use the solar modules. We have experienced engineers to design for your order and you need to give more information to fix the details.
