Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:5000 watt
Supply Capability:200000000 watt/month
1.Product Description
Dimension | 156mmx156mm±0.5mm |
Thickness(Si) | 180µm ±20µm, 200µm±20µm |
Front | Blue silicon nitride anti-reflective coatings 1.4mm silver busbar |
Back | Full-surface aluminum back-surface field 2.5mm(silver/aluminum discontinuous soldering pads) |
2.Features
1).High efficiency resulting in superior power output performance
2). Outstanding power output even in low light or high temperature conditions
3).Optimized design for ease of soldering and lamination
4).Long-term stability,reliability and performance
5). Low breakage rate
6) Color uniformity
7).Lowest price
8).Certification: CE,ROHS,IEC,TUV,UL.
9). Prompt delivery
3.Production and Quality Control
1).Precision cell efficiency soring procedures
2).Stringent criteria for color uniformity and appearance
3).Reverse current and shunt resistance screening
4).REACH-SVHC test passed, IS09001,ISO14001 and OHSAS 18001
certificated
5). Calibrated against Fraunhofer ISE
4.Electrical Performance
Efficiency code | 182 | 180 | 178 | 176 | 174 | 172 | 170 | |
Efficiency | Eff(%) | 18.20 | 18.00 | 17.80 | 17.60 | 17.40 | 17.20 | 17.00 |
Power | Ppm(W) | 4.43 | 4.38 | 4.33 | 4.28 | 4.23 | 4.19 | 4.14 |
Max. Power current | Ipm(A) | 8.26 | 8.22 | 8.17 | 8.12 | 8.08 | 8.05 | 7.99 |
Short Circut Current | Isc(A) | 8.71 | 8.68 | 8.63 | 8.60 | 8.56 | 8.53 | 8.49 |
Max. Power Voltage | Vpm(V) | 0.536 | 0.533 | 0.530 | 0.527 | 0.524 | 0.521 | 0.518 |
Open Cirtuit Voltage | Voc(V) | 0.634 | 0.632 | 0.630 | 0.627 | 0.625 | 0.622 | 0.620 |
Efficiency code | 168 | 166 | 164 | 162 | 160 | 158 | 156 | |
Efficency | Eff(%) | 16.80 | 16.60 | 16.40 | 16.20 | 16.00 | 15.80 | 15.60 |
Power | Ppm(W) | 4.09 | 4.04 | 3.99 | 3.94 | 3.89 | 3.85 | 3.79 |
Max. Power Current | Ipm(A) | 7.94 | 7.90 | 7.85 | 7.80 | 7.75 | 7.71 | 7.68 |
Short Circuit Current | Isc(A) | 8.45 | 8.41 | 8.38 | 8.35 | 8.32 | 8.25 | 8.22 |
Max. Power Volgate | Vpm(V) | 0.515 | 0.512 | 0.509 | 0.507 | 0.505 | 0.504 | 0.502 |
Open Circut Voltage | Voc(V) | 0.618 | 0.616 | 0.614 | 0.613 | 0.612 | 0.610 | 0.609 |

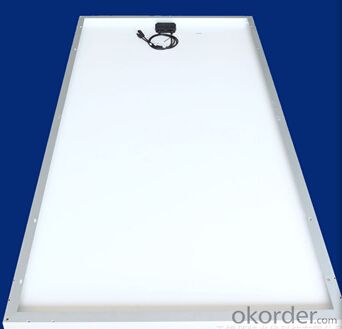

5. Solar Panel Images
6.FAQ
1.How about your company？
CNBM Solar photovoltaic (PV) Panel has various wattage from 1.5W to 315W to meet the demand of every customer. It is the optimal choice for both on-grid and off-grid power systems. CNBM Solar panel offers high performance of power warranty and good after sale service, we have professional people to reply your problem anytime.
CNBM International Corporation's products including Monocrystalline Solar Panel, Polycrystalline Solar Panel have received and enjoyed famous reputation in many countries and regions in the world .As a solar panel supplier in China, we strive to provide our customers with excellent service, superior products and unmatched value.
2.How to guarantee the quality of the products？
CNBM Solar performance guarantees for 25 years
• 12 years guarantee for workmanship
• Timeliness of delivery
• Quality Products certified (TÜV, UL, CE, ISO)
3.How long can we receive the product after purchase?
In the purchase of product within three working days, We will arrange the factory delivery as soon as possible. The pecific time of receiving is related to the state and position of customers.Commonly 7 to 10 working days can be served.
