Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:50000 watt
Supply Capability:200000000 watt/month
Specifications
1.100% TUV standard power pv solar panel
2.High quality photovoltaic solar panel
3.CE,TUV,SGS Certificate
4.25 years warranty
Product Description
1.Descprition:

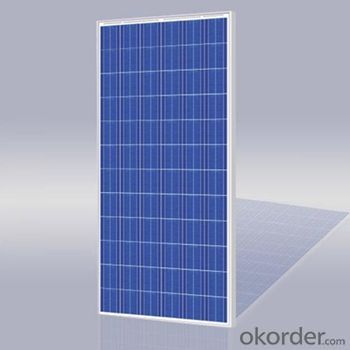

CNBM Series solar panel is connected in series by 60 pieces of 156mm×156mm Poly Crystalline silicon cells. Includes 230W, 235W, 240W.245W,250W,260W
2.Characteristics
1)Manufactured according to international quality and Environment Management
System (ISO9001, ISO14001)
2)High efficiency crystalline silicon solar cells
3)High transmission Iow iron tempered glass, strong mechanical resistance
4)Anti-ageing EVA and excellent anti-climate back sheet
5)Anodized aluminum frame improves load resistance capabilities for heavy wind loads.
6)Standard waterproof junction box
7)High endurance to different weather
8)Good and friendly package with less transportation and storage space.
3.Warranty
1)10 years limited manufacturing warranty
2)10 years for 90% of warranted minimum power
3)25 years for 80% of warranted minimum power
4.Electric Characteristics
CELL TYPE | 156*156mm Poly Solar Cell | ||||
Power | 230Wp | 235Wp | 240Wp | 245Wp | 250Wp |
Voc(V) | 37.2 | 37.4 | 37.7 | 37.9 | 38.2 |
Isc(I) | 8.4 | 8.55 | 8.7 | 8.85 | 9 |
Vm(V) | 30 | 30.2 | 30.4 | 30.6 | 30.8 |
Im(I) | 7.67 | 7.78 | 7.90 | 8.02 | 8.14 |
Cell Efficiency | 16.24% | 16.59 % | 16.94% | 17.29% | 17.64% |
Module Efficiency | 14.17% | 14.47% | 14.78% | 15.09% | 15.40% |
Fuse | 15A | ||||
Max Voltage | 1000VDC | ||||
Cell No. | 60pcs | ||||
Tolerance | 0/+3% | ||||
Module size | 1640*990*35(mm) | ||||
Weight | 17KGS | ||||
Cable length | 0.9m | ||||
Connector | MC4 or compatible connector | ||||
5.Certifications
6.FAQ
1. What’s price per watt?
A: It’s depends on the quantity, delivery date and payment terms of the order. We can talk further about the detail price issue. Our products is high quality with lower price level.
2. Can you tell me the parameter of your solar panels?
We have different series of cells with different power output, both from c-si to a-si. Please take our specification sheet for your reference.

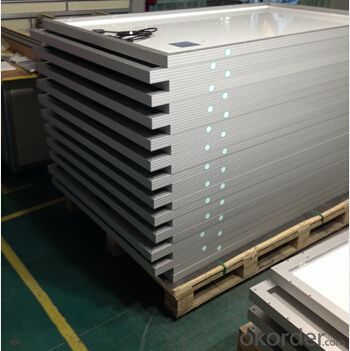

3. How do you pack your products?
We have rich experience on how to pack the panels to make sure the safety on shipment when it arrives at the destination.
4. Can you do OEM for us?
Yes, we can.
5. How long can we receive the product after purchase?
In the purchase of product within three working days, We will arrange the factory delivery as soon as possible. The perfect time of receiving is related to the state and position of customers. Commonly 7 to 10 working days can be served.
