1. Structure of Polycrystalline Silicon Solar Modules 48Cell-195W Description
Solar panel refers either to a photovoltaics (PV) module, a solar hot water panel, or to a set of solar photovoltaics modules electrically connected and mounted on a supporting structure. A PV module is a packaged, connected assembly of solar cells.
Solar panels can be used as a component of a larger photovoltaic system to generate and supply electricity in commercial and residential applications.
Each module is rated by its DC output power under standard test conditions, and typically ranges from 100 to 320 watts.
The efficiency of a module determines the area of a module given the same rated output – an 8% efficient 230 watt module will have twice the area of a 16% efficient 230 watt module.
There are a few solar panels available that are exceeding 19% efficiency.
A single solar module can produce only a limited amount of power; most installations contain multiple modules.
2. Main Features of the Polycrystalline Silicon Solar Modules 48Cell-195W
• WARRANTIES
- Limited power warranty1: 1 year at 98% of the minimal rated power output, 10 years at 92% of the minimal rated power output, 25 years at 82% of the minimal rated power output.
1In compliance with our Warranty Terms and Conditions.
*QUALIFICATIONS & CERTIFICATES
IEC 61215, IEC 61730, MCS, CE, ISO 9001:2008, ISO 14001:2004, BS OHSAS 18001:2007, PV Cycle, SA 8000
.

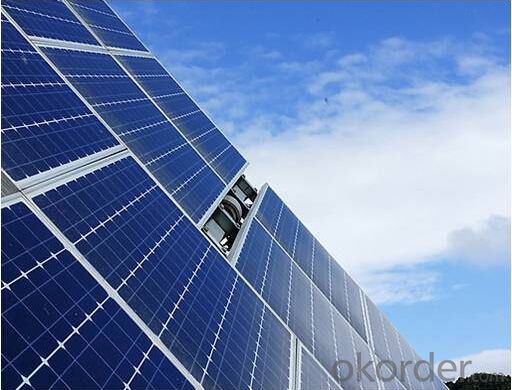

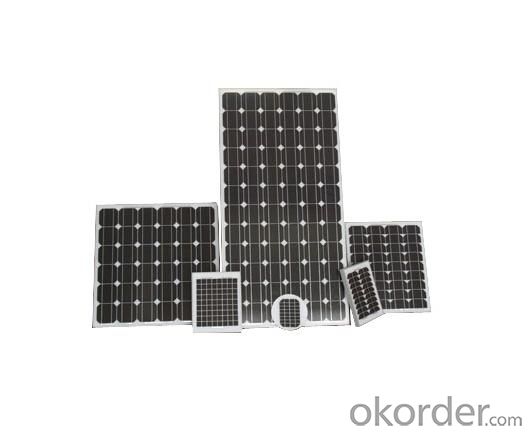

3. Polycrystalline Silicon Solar Modules 48Cell-195W Images
4. Polycrystalline Silicon Solar Modules 48Cell-195W Specification
ELECTRICAL PERFORMANCE | |||
Power output | P max | W | 195 |
Power output tolerances | ΔP max | W | 0/+5 |
Module effi ciency | η m | % | 14.7 |
Voltage at Pmax | V mpp | V | 23.7 |
Current at Pmax | I mpp | A | 8.03 |
Open-circuit voltage | V oc | V | 30.1 |
Short-circuit current | I sc | A | 8.65 |
5. FAQ of Polycrystalline Silicon Solar Modules 48Cell-195W
Q1:Can we visit your factory?
A1:Sure,welcome at any time,seeing is believing.
Q2:Which payment terms can you accept?
A2:T/T,L/C,Moneygram,Paypal are available for us.
Q3:How to guarantee the Quality of the products？
A3:We have established the international advanced Quality management system，every link from raw material to final product we have strict
Quality test；We resolutely put an end to unQualified products flowing into the market. At the same time, we will provide necessary follow-up
service assurance.
