Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:1 pc watt
Supply Capability:10000 pcs per month watt/month

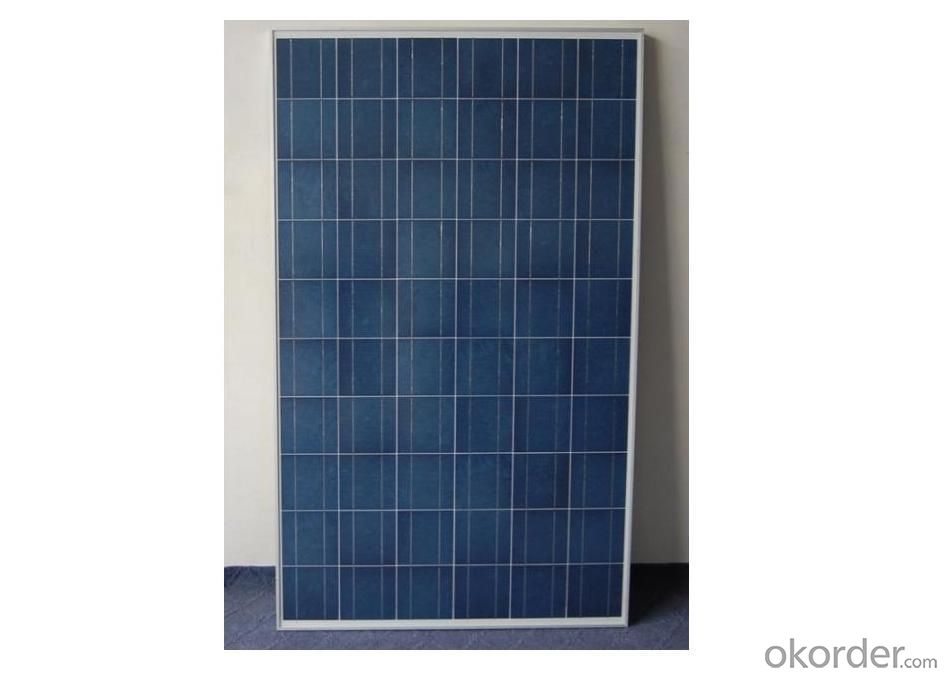

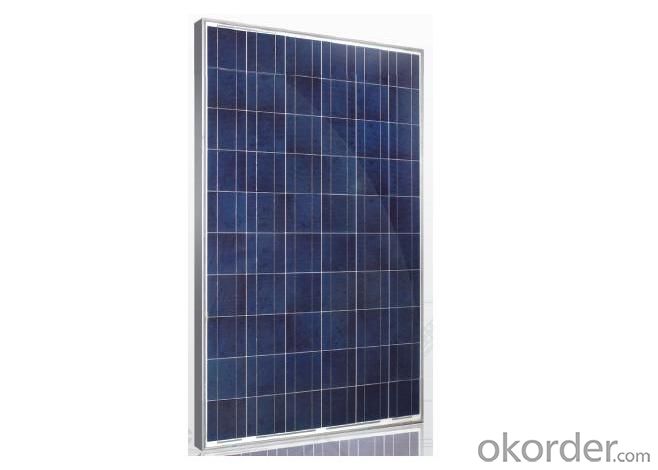

Introduction of Poly Solar Panels CNBM (250W-260W)
Poly Solar Panels CNBM (250W-260W) is designed for large electrical power requirements. It is the optimal choice for both on-grid and off-grid power systems. CNBM Solar panel offers high performance of power per square foot of solar array. Poly Solar Panels CNBM (250W-260W) of Monocrystalline silicon(c-Si): often made using the Czochralski process. Single-crystal wafer cells tend to be expensive, and because they are cut from cylindrical ingots, do not completely cover a square solar cell module without a substantial waste of refined silicon.If you have interest in Poly Solar Panels CNBM (250W-260W) ,please contact us!
Characteristics of Poly Solar Panels CNBM (250W-260W)
I.Solar Cell : High efficiency crystalline solar cell. Even if under the weak light, the solar module can produce maximum power output.
II.Tempered glass (toughened glass): Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.
III.EVA and TPT: Using high quality EVA and TPT to prevent destroying and water.
IV.AI frame: Without screw, corner connection. 6 holes on the frame can be installed easily.
V.Junction box: Multi function junction box with water proof.
VI.Long lifetime: ≥25 years; Less power decrease.
VII.Good performance of preventing from atrocious weather such as wind and hails.
VIII.Resisting moisture and etching effectively, not effected by geology.
IX.The certificate issued by international authority: UL, TUV, IEC, VDE, CE.
Standard Test Conditions of Poly Solar Panels CNBM (250W-260W)
The opto-electrical specifications shown below are stabilized values being measured at Standard Test Conditions, Irradiance: 1000W/m2, Spectrum: AM1.5 at 25°C, The info below is subject to manufacturing tolerances. Where appropriate minutes of measurement are available and are used for the dimensioning of the installation.
Advantages of Poly Solar Panels CNBM (250W-260W)
• CNBM Solar performance guarantees for 25 years
• 10 years guarantee for workmanship
• Timeliness of delivery
• Quality Products certified (TÜV, UL, CE, VDE, ISO)
CNBM International Corporation's products including Monocrystalline Solar Panel, Polycrystalline Solar Panel have received and enjoyed famous reputation in many countries and regions in the world .As a solar panel manufacturer in China, we strive to provide our customers with excellent service, superior products and unmatched value.
Datasheet of Poly Solar Panels CNBM (250W-260W)
Characteristics of Poly solar panels CNBM (250W-260W) | |||
Max Power Voltage Vmp(V) | 30.1 | 30.2 | 30.4 |
Max Power Current Imp(A) | 8.32 | 8.44 | 8.55 |
Open Circuit Voltage Voc(V) | 37.5 | 37.6 | 37.7 |
Short Circuit Current Isc(A) | 8.87 | 8.99 | 9.10 |
Max Power Pm(W) | 250 | 255 | 260 |
Temperature Coefficient of Cells of Poly Solar Panels CNBM (250W-260W) | |
NOCT | 45℃ ± 2℃ |
Temperature Coeffucients of Isc (%/℃) | 0.0492 |
Temperature Coeffucients of Voc (%/℃) | -03374 |
Temperature Coeffucients of Voc (%/℃) | -0.4677 |
Mechanical Data of Poly Solar Panels CNBM (250W-260W) | |
Dimension | 1638 × 982 × 40 mm |
Weight | 19.5 kg |
No. of Cells and Connections | 60 (6 ×10) |
Tolerance | 0 ~ + 5 W |
Cell | Monocrystalline Cell 156 × 156 mm |
Packing | 720 Pcs/40ft(H) Container |
Limits of Poly Solar Panels CNBM (250W-260W) | |
Operating Temperature | -40℃ to +85℃ |
Storage Temperature | -40℃ to +85℃ |
Max System Voltage | 1000VDC(IEC) / 600VDC(UL) |
Guarantees of Poly Solar Panels CNBM (250W-260W) | |
Products Guarantee | 10 yrs free from defects in materials and workmanship |
Performance Guarantee | No less than 90% within 10yrs and no less than 80% within 25yrs |
Certificates | TUV(IEC61215&IEC61730),VDE(IEC61215&IEC61730),UL,CE |
IV Curve of Poly Solar Panels CNBM (250W-260W)
The data does not refer to a single module and it is not part of the offer
It is only for comparison only to different module types.
Test Conditions of Poly Solar Panels CNBM (250W-260W)
The opto-electrical specifications shown below are stabilized values being measured at Standard Test Conditions, Irradiance: 1000W/m2, Spectrum: AM1.5 at 25°C, The info below is subject to manufacturing tolerances. Where appropriate minutes of measurement are available and are used for the dimensioning of the installation.
Picture 1. The Factory Indoor Sight of Poly Solar Panels CNBM (250W-260W)
Picture 2 The Package of Poly Solar Panels CNBM (250W-260W)
