Solar Panels Highlands Ranch 100w Poly-Crystalline Solar Modules & Panels

Product Description:

1.Structure of Solar Module Description

A solar cell module of the present invention was made to improve adhesion between electrodes, which is formed with thermosetting resin containing silver paste, of a solar cell element and connecting tabs coated with lead (Pb) free solder. To achieve this purpose, the solar cell module is comprised of a front surface member, a rear surface protective member, a plurality of solar cell elements provided between the front surface member and the rear surface protective member, and connecting tabs for electrically connecting the solar cell elements to each other through electrodes with the use of lead free solder. The electrodes of the solar cell elements are made of silver paste containing thermosetting resin and silver powder. The thermosetting resin contains epoxy resin at volume ratio of 70% or more having a glass transition rate of 80° C. to 200° C. measured by a TMA method. The connecting tabs coated with lead free solder are soldered to the electrodes.

2.Main Features of the Solar Module

Solar PV module is comprised of some solar cells which are connected in serial with high efficiency and enhanced reliability. The solar cells are laminated between sheets of ethylene vinyl acetate (EVA) and high-clarity low-iron tempered glass.

Solar panel pv module manufacturer
High efficiency: mono panel 18% poly panel 17%
30W-300W mono solar panel poly solar module

Mono-crystalline Solar Panel / Poly-crystalline Solar Panel

We Are Manufacturer

We manufacture mono solar panel and poly solar panel from 30W-300W

We produce Solar PV module from solar cell to solar module

We are capable to produce 2MW solar panels per month

Warranty

5 years material and workmanship warranty

10 years at 90% of the minimal rated power output

25 years at 80% of the minimal rated power output

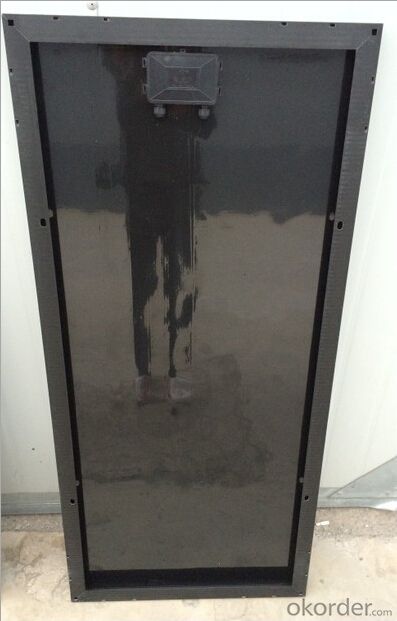

3.Solar Module Images

4.Solar Module Specification

Specifications

Product Details

Advanced EVA encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation

Anodized aluminum frame: The sturdy, anodized aluminum frame allows the modules to be mounted on a variety of standard racking systems and to withstand harshest conditions

Ultra reliable bypass diodes prevent damage through overheating due to shaded or defective cells

Packing method: Innovative, environmentally friendly packing method using pile-edges insures modules arrive in perfect condition

New frame design incorporating hexagonal shaped Drainage holes, with more grounding holes, provide flexible installation and using

Waterproof Battery Box

Waterproof battery box, ideal for high humidity area

Air-bleed vent design, specially for gel and lead acid battery

High strength: PVC plastic box and wire reinforced PVC conduit

5.FAQ of Solar Module

1. Q: Do you have your own factory?
    A: Yes, we have. Our factory located in Jiangyin city, jiangsu province.
 2. Q: How can I visit your factory?
    A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
 3. Q: Do you provide free sample?
    A: Usually we do not offer free sample
 4. Q: Could you print our company LOGO on the nameplate and package?
    A: Yes, we can do that.
 5. Q: Do you accept custom design on size?
    A: Yes, if the size is reasonable.
