Plcc2 5730 Series T0.8Mm 0.5Watt White Surface Middle Power White Color Type SMD LED

Product Description:

• The PLCC2 5730 Series T0.8mm 0.5Watt White Surface Middle Power White Color type SMD LED utilizing advanced InGaN chip technology.

• The PLCC2 5730 Series T0.8mm 0.5Watt White Surface Middle Power White color type SMD LED which was fabricated using a blue LED and a phosphor, and the phosphor is excited by blue light and emits yellow fluorescence the mixture of blue light and yellow light results in white emission

• The low current requirement makes the device ideal for portable equipment or other application where power is at a premium.

Features:

• Longer Life Span

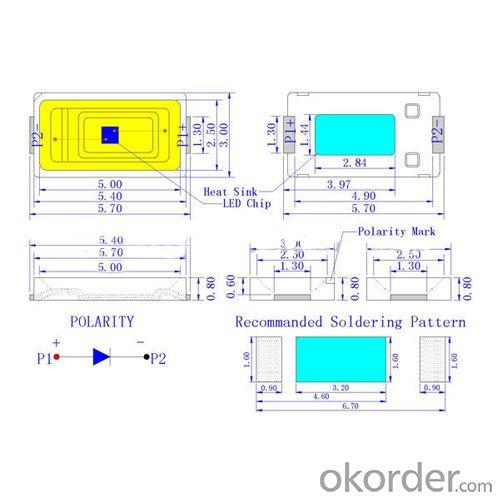

• PLCC2 package

• Heatproof design

• Faster Turn-on time

• High flux output

• High current capability

• Lower Maintenance Cost

• White package

• Optical indicator

• Colorless clear window

• Ideal for Tube lamp, backlight and light pipe application

• Inter reflector

• Wide Viewing Angle

• Suitable for automatic placement requipment

• Suitable for reflow and wave solder processes

• Available on tape and reel (12mm tape)

• Pb free

• Rohs compliant

Applications:

• Indicator and backlight for audio and vedio equipment

• Indicator and backlight for office and family equipment

• Flat backlight for LCD's, switches and symbols

• Light pipe application

• General use

Packing:

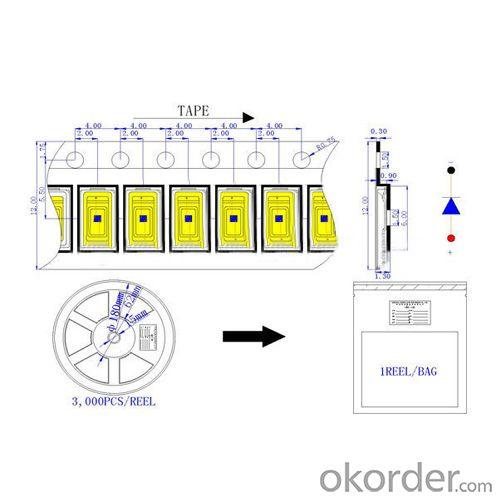

• 3,000PCS/Reel, Reel Diameter: 180mm

• 1Reel/Bag, Gross Weight: 0.13KG

• 10Bags/Box, Box Size: (L)25cm(W)20cm(H)13cm, Gross Weight: 1.5KG

• 5Boxes/CTN, CTN Size: (L)67mm(W)26cm(H)20cm, Gross Weight: 8KG

Notice:

• It is recommended to store the products in the following conditions: Humidity: 60% RH, Max Temperature: 5°C ~ 30°C (41°F ~ 86°F)

• Shelf life in sealed bag: 12month at<40°C and <90%RH.

• After the bag is opened, devices that will be subjected to infrared reflow, vapor-phase reflow, or equivalent processing must be: Mounted within 1 year at factory conditions of<30°C / 60%RH, or stored at <20%RH within zip-lock sealed.
