Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1 unit
Supply Capability:10 unit/month
1. Application of Plastic Mixing Dryer
Mixer unit widely used in mixing drying, coloring and other industrial art. It’s an ideal equipment for producing profile and pipe. The hot mixer has self-friction, electric heating of heating method
The mixer has three layers of sealing in the pot cover. Pot cover of cooling mixer adopts arch cover, which can avoid deforming. The mixer unit has features of compact construction, good performance. All of the blades have passed the test of dynamic
balance and static equilibrium
2. Features of Plastic Mixing Dryer
.Using dispersed air of highperformance air diffusion device,to maintain uniformity of drying temperature presses to improve drying efficiency.
.Unique curved design of hot air tube, to avoid accumulation of powder layer atthe bottom of the heater caused by combustion.
.Barrel in and all stainless steel internal parts, barrel and the bottom of the separation of material easy to clean, quickly refueling to ensure that material is not contaminated.
.All kinds of models of Plastic Industry plastic mixingdryecan offer a warm timing device, microcomputer control and choice of double insulation barrel.

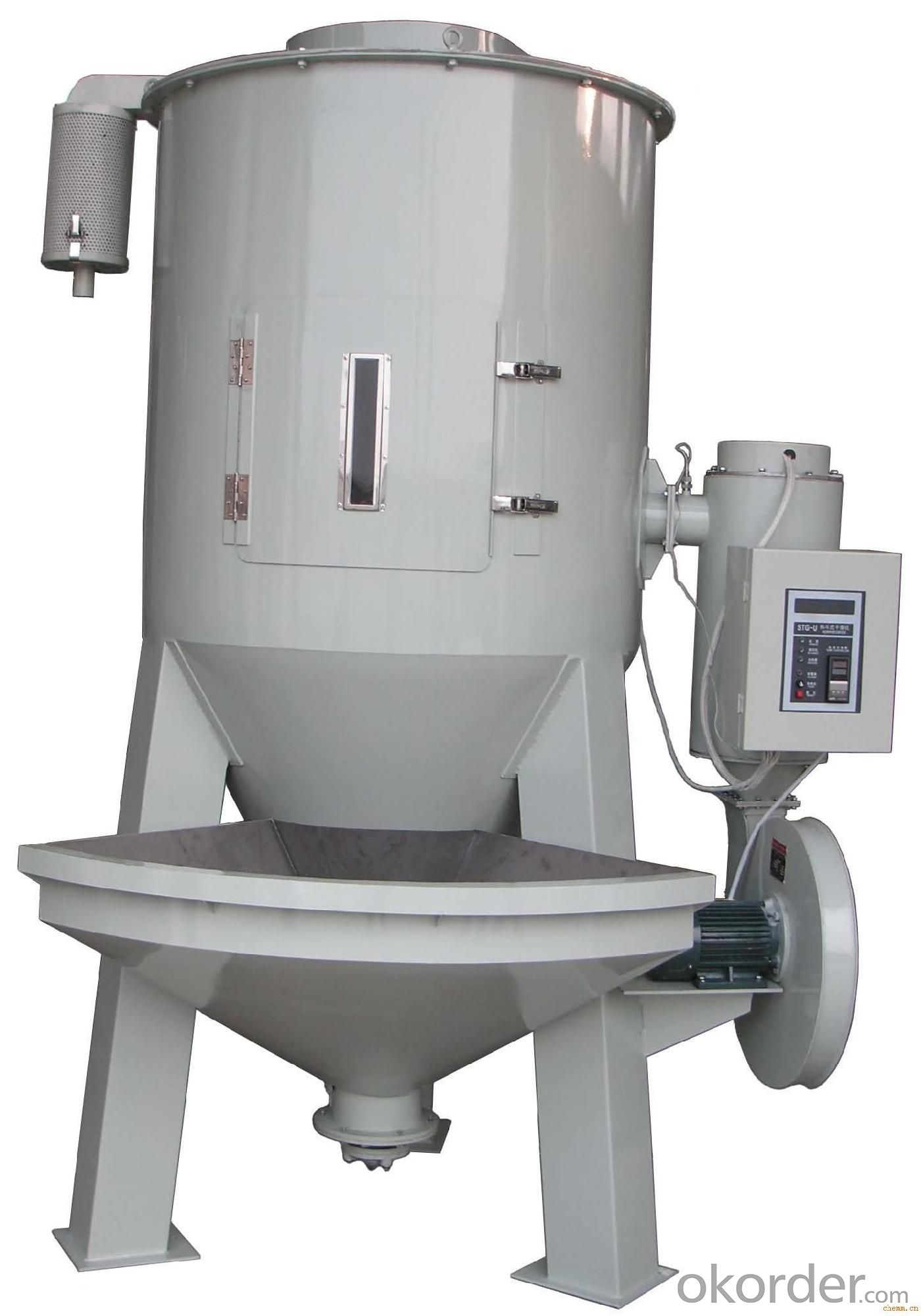

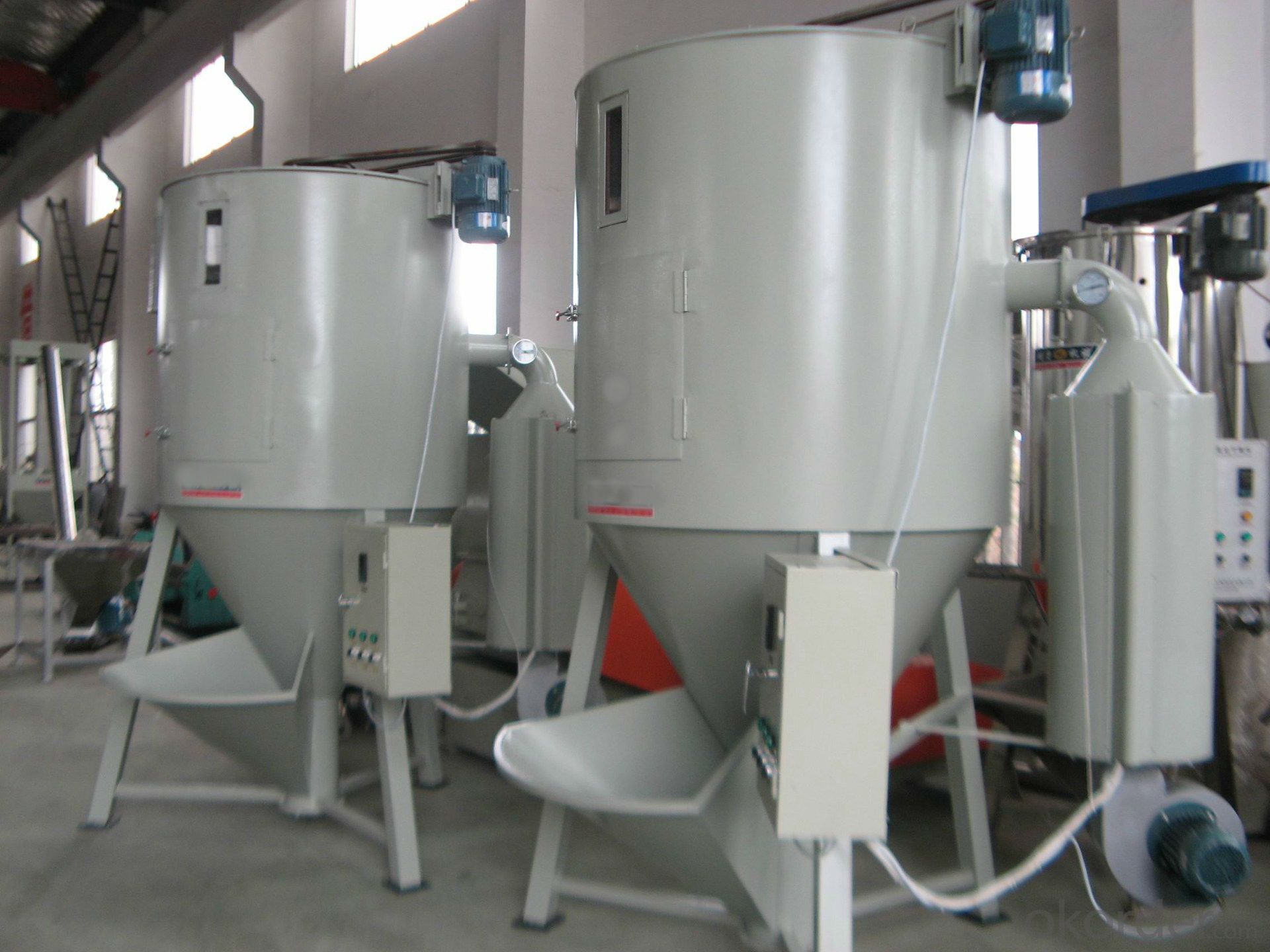

3.Images of Plastic Mixing Dryer
4. Specification of Plastic Mixing Dryer
Model | Material Weight(KG) | Electric Power(KW) | Fan | Power Supply(V) | Dimension(CM) | Mount Dimension (CM) | Net weigh(KG) |
FHD-12 | 12 | 1.8 | 50 | 220/1 | 63x40x83 | 11x11x4 | 32 |
FHD-25 | 25 | 3.5 | 90 | 220/1 | 76x50x104 | 16x16x6.2 | 34 |
FHD-50 | 50 | 4.5 | 100 | 220/1 | 87x54x121 | 16x16x7 | 45 |
FHD-75 | 75 | 6.5 | 250 | 380/3 | 94x60x131 | 16x16x8 | 56 |
FHD-100 | 100 | 6.5 | 250 | 380/3 | 101x70x141 | 18x18x8.8 | 68 |
FHD-150 | 150 | 9 | 350 | 380/3 | 110x74x162 | 20x20x11.5 | 78 |
FHD-200 | 200 | 12 | 350 | 380/3 | 118x84x176 | 23x23x 12 | 110 |
FHD-300 | 300 | 15 | 750 | 380/3 | 142x100x183 | 27.5x27.5x 12 | 152 |
FHD-400 | 400 | 15 | 750 | 380/3 | 148x106x202 | 27.5x27.5x 13.5 | 170 |
5. Information of Plastic Mixing Dryer
horizontal mixer with cylindrical drum and horizontally installed mixing shaft.
Plough shape shovels mounted on a central shaft with its sharp ends easliy penetrate through the dense powder and thick pasty mass. extra shear can be attained by adding side mounted choppers.
The mixer is designed for heavy duty blending of both dry and wet material.
The arrangement of mixing tools is the result of many years of development by JINHE process equipments combined with experience based on mixing trials and practical scientific work.
The use of high speed choppers futher reduce the product particle size thus resulting in a better mix.
They can used for dispersing lumps which are either in the original product or which forms during process. they chop pasty additives or prevent the formation of agglomeration when liquid is introduced to the mix.
The number and type of choppers whcih are installed are governed by the size of the mixer and the purpose for which it is used.
