Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:1X20' FCL m³
Supply Capability:5000 CBM per month m³/month
Specification of the Pine H20 Wood Beam
Flange: | solid sawn pine lumber, thickness of middle LVL board is 27mm |
Size of LVL bar | 40x80mm |
height: | 160mm |
Density: | 5.0-6.0kg/m |
Raw Material | pine LVL |
Water Content | 8--12% |
Glue | WBP |
Painting | yellow waterproof painting or as per request |
Usage | construction formwork system |
Standard lengths | 2.45/2.90/3.30/3.90/4.90/5.90m(Max.length:6.00m) |
Modulus of elasticity | E 11.000N/mm2 |
Shear modulus | G600N/mm2 |
The usage of the Pine H20 Wood Beam
The Pine H16 Wood Beam is main used to construction formwork, it is widly applied to slab/table
formwork system, wall formwork system, timber structures and temporary bearing structures.
Characteristics of the Pine H20 Wood Beam
A) Treated by WBP Glue(water-proof)
B) With high standardization, universal property, fast operation
C) High stiffness, light weight, strong load-carrying capability
D) Low cost and recycle resource
Best quality and great service of the Pine H20 Wood Beam
As a professtional company in this products, we supply products with the best quality and
competitive price. we have our professional workers and experienced team to promise the quality
and delivery date.

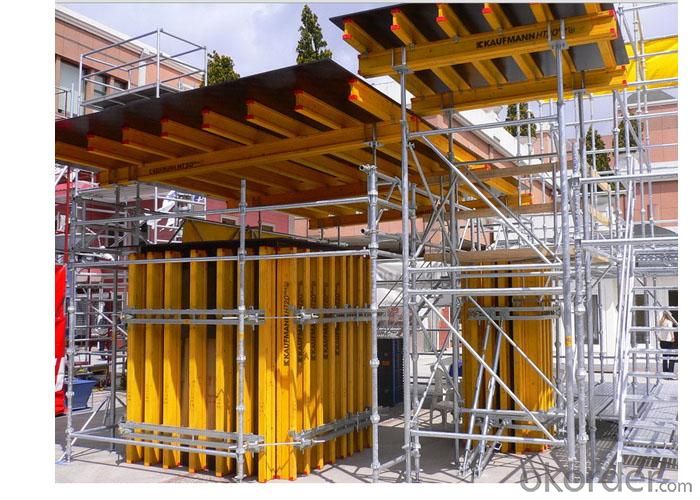

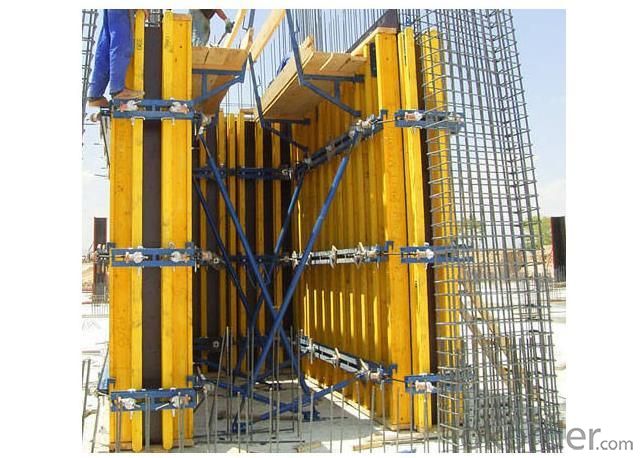

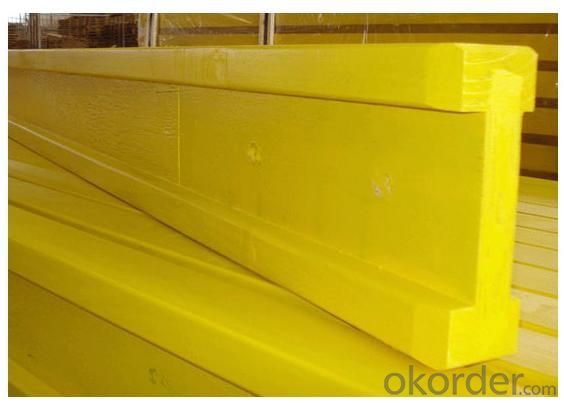

The following pictures of the Pine H20 Wood Beam for reference:
