Paper Roll Rewinding and Slitting Machine

Loading Port:China main port

Payment Terms:TT or LC

Min Order Qty:1 set

Supply Capability:10 set/month

Product Description:

Paper Roll Rewinding and Slitting  Machine Feature



1.Structure of Description

1.A pair of thick knives cutting.

2.Plate and smooth on the both sides of the paper strap after cutting .

3.Non-raw edge of paper trap and non paper coiling solid structure

4.Nectify deflexion automatism.

5.All operation concentrate on the panel ,convenient to operate.

6.High output can offer three coiling tube machine to use.

7.Armor plate structrure ,fine precision.

8.Unload the meterial pneumatic,simple to operate.



2. Main Features

Steady and high quality

Fast shipment

Good experience for export work

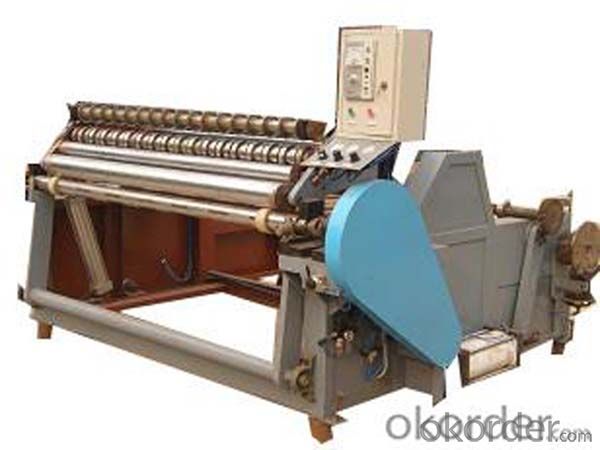

3. Images





4. Specifications

 parameter

Size (mm)

Jumbo roll max-width

1600mm

Unwind :L*W*H :

2900*1600*1450mm

Finish roll min-width

35mm

Rewind:L*W*H

2700*1500*1250mm

Jumbo roll unwind diameter

1500mm

Up knife

4*105*70mm

Finish roll max diameter

1000mm

down knife

4*105*70mm

Slitting speed

0-150m/min

weight

2260kg

Slitting range

30-600gsm

Control system

Quantity of blade

21 sets

Edge correcting controller

Paper giving way

 Electrical drag hook

Actuator

CHNT

Speed regulation control

Speed adjusting motor

Signal component

Omron

Power supply

380V three phase four lines

pneumatic component

Airtac

Winding way

Air shaft winding

Component

Driving system

Unload

pneumatic

Main motor

4Kw

Edge-correction

Electrical

Moving speed

1400r/min

Tension adjust

By pneumatic

Power of feeding paper motor

2.2kw

Rewind unwind

two air compressor bearing

Edge correction motor

Y110 60:1

A pair of thicken knives cutting system

Rewind reduction box type

WPA12 Cazenove

Free components

Load reduction box type

WPA100  Cazenove

Useful tools

Pneumatic gun (1 set),

T type of spanner ( 1 set),

cap spanner ( 1 set),

inner hexagon spanner(1 set )

buckle (1 set),

gas nipple (2 pieces)

Driving way

Connected bearing

Bearing

Wan xiang

Air compressor
