Off-Grid Low Frequency PV Inverter EP3200 Series 4KW-6KW

Loading Port:China main port

Payment Terms:TT or LC

Min Order Qty:50 unit

Supply Capability:1000 unit/month

Product Description:

1. Structure of Off-Grid Low Frequency PV Inverter Description

EP3200 series off-grid low frequency PV inverter adopt very new model copper transformer so the efficiency reach to 90% and lower

 consumption (NEW !)

Pure sine wave solar hybrid inverter for solar system and home appliances . EP3200 series off-grid low frequency PV inverter developed on

 the base of our very popular EP3000 series . EP3200 has achieved significant improvements on battery charging , AC transfer , bypass

etc .

By adopting DIP(Dual-in-line) switch , EP3200 series off-grid low frequency PV inverter provides more smarter options for users to

customize the performance of the device . Main for home solar system including air conditioner , refrigerator , washing machine , water

pump , fans , tv , lights etc.



2. Main Features of the Off-Grid Low Frequency PV Inverter

•  High overload ability of our EP3200 charger is up to 300% rated power

• EP3200 pure sine wave inverter adopts low quiescent current, and power saver mode to reduce power consumption to 3W . It can extract

 max. power from various batteries with different protections, and low voltage trip can be selected (10V/10.5V/11V).

• Uses PFC (power factor correction) for charger, which has less power consumption than conventional units.

• It has 10s delay before transfer when AC resumes, and overload protection when our APC pure sine wave inverter equips with generator.

• 10ms typical transfer time between battery and AC, which guarantees power continuity of EP3200 charger. Uses selectable input AC

voltage (185-265V or 155-255V) for different kinds of loads.

• Our EP3200 charger allows start up and through power with depleted batteries. Its powerful charge rate up to 70Amp.

• It can offer 3-step intelligent battery charging, and equipped with 6 preset battery type selector for totally flat batteries.

• LCD status display, battery/AC priority switch, RS232 communication port are available for our EP3200 pure sine wave inverter, it also

has 17 alarms/warnings for easier operation and trouble-shooting, and ability to switch the unit on/off. In addition, select/deselect power

saver mode can be used too.

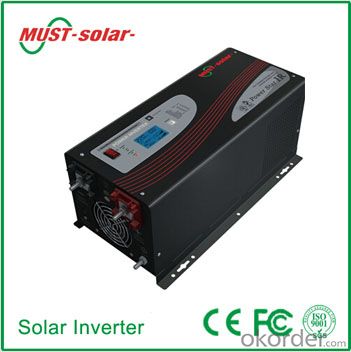

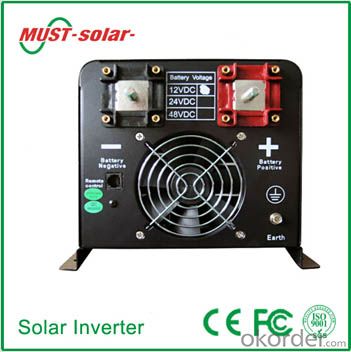

3. Off-Grid Low Frequency PV Inverter Images

Off-Grid Low Frequency PV Inverter EP3200 Series 4KW-6KW

Off-Grid Low Frequency PV Inverter EP3200 Series 4KW-6KW

Off-Grid Low Frequency PV Inverter EP3200 Series 4KW-6KW

Off-Grid Low Frequency PV Inverter EP3200 Series 4KW-6KW



4. Off-Grid Low Frequency PV Inverter Specification

Rated Capacity

4000W

5000W

6000W

Efficiency

>90%

Input

Model

120v Models

230v Models

Nominal Voltage

100V/110V/115V/120VSelectable

200V/220V/230V/240V Selectable

Output

Rated Power

4000W

5000W

6000W

Output Voltage

100V/110V/115V/120V Selectable

200V/220V/230V/240V Selectable

Voltage Waveform

Pure Sine Wave

Crest Factor

3:01

Transfer Time

Transfer Time : AC To DC : 10ms (Typical)

Transfer Time : DC To AC : 10ms(Typical )

Max Bypass

30A

Overload Current

Input

Nominal Voltage

DC24V/48V

DC48V

DC48V

Over Current Protection

By Re-Settable Over Current Protector

Output

Regulation (Nominal)

±10% Typical Of Nominal Voltage

Nominal Input Voltage

230Vac

Input Voltage Range

185-265Vac

Nominal Output Voltage

According To The Battery Type

Nominal Charge Current

30Amp-70Amp

Battery Type

Lead-Acid 12Ah ~ 250Ah

Typical Backup Time

No Limit

Charging Method

Smart Pulse Charging With Two Charging Modes:

Quick Charging When Battery Is Not Fully Charged,

Trickle Charging When Battery Is 90% Fully Charged.

Average Charging

65A/35A

70A/40A

50A

Current

Battery Voltage options

Options 7

Battery low trip to bypass 11v , high trip to battery 14v

Options 8

Battery low trip to bypass 10.5v , high trip to battery 13.5v

Options 9

Battery low trip to bypass 10v , high trip to battery 13v

Communications & Management

Control Panel

LCD/LED Option

Audible Alarm

Alarm On Battery:

Low Battery & Battery Over Voltage

Alarm On Abnormal Operation:

Over Load, Short-Circuit, & Over Heat

Environment And Safe

Operating

0℃ To 40℃ (32℉ To 104℉)

Temperature

Transit/Storage

-15℃ To 60℃

Temperature

Audible Noise

60 Dba Max at 1m

Quality Control System

ISO 9001,FCC,CE

Physical

Dimensions: (H×D×W)

755*320*310mm

G.W (Kg)

37.5

47.5

47.5

Packing

Export Carton For Each Unit Per Carton

5. FAQ of Off-Grid Low Frequency PV Inverter

Q1. What is the difference between inverter and Off-Grid Low Frequency PV Inverter?
A1. Inverter only has AC inpput, but Off-Grid Low Frequency PV Inverter both connect to AC input and solar panel, it saves more power.

Q2. What is the difference between MPPT&PWM?
A2. MPPT has higher efficiency, it can track the max power point and won't waste energy.

Q3. What is the waranty of product?
A3. 12 months.
