Loading Port:Shanghai
Payment Terms:TT or LC
Min Order Qty:1000 watt
Supply Capability:200000 watt/month
| Material: | Monocrystalline Silicon | Size: | 505*1005*70mm | Number of Cells: | 36pcs |
| Max. Power: | 160Wp | Certificates: | TUV, IEC, CE, ISO9001/14001 and RoHS | Modes of Supply: | Factory Directly Supply |
| OEM panel solar: | Acceptable | Cell Brand: | Taiwan solar cells | Cell efficiency: | 15.94%-18.10% |
| Frame: | Aluminium Alloy |
| Packaging & Delivery | |
| Packaging Detail: | carton box & wooden pallet [ solar panels ] |
| Delivery Detail: | 10-15working days after order confirmed |

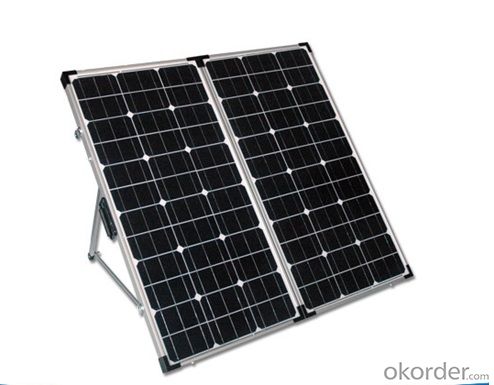

OEM poly sun power solar panels --- Factory direct sale
Product Description
1.with controler, cable, mounting and bag, ready to use
2.High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3.Unique frame design with high mechanical strength for easy Installation.
4.Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions
5.Outstanding electrical performance under high temperature and low irradiance conditons
6.it can be widely used for home, for camping, for emergency
Electrical Character
| Electrical Characteristics | |
| Model | SGM-2F-2x80W |
| Cells size (mm): | 156*78 |
| Cells per module: | 36pcs |
| Module size (mm): | 505*1005*70mm |
| Power tolerance: | +/-3% |
| Nominal peak power(WP): | 160w |
| Nominal voltage(V): | 17.7 |
| Nominal current (A): | 9.03 |
| NOCT: | 45+/-2degree |
| Voltage temperature coefficient: | -0.33%/degree |
| Current temperature coefficient: | +0.05%/degree |
| Power temperature coefficient: | -0.23%/degree |
| Open circuit voltage (Voc): | 21.6 |
| Short cirsuit current(Isc): | 9.76 |
| Conversion efficiency: | 18.40% |
| Product name : | protable solar panel |
| Max system voltage: | 1000V DC |
| Surface Maximum Load Capacity | 60m/s(200kg/sq. m) |
We can produce solar panel and solar module from 3W-320w (3w,, 5w, 50w,80w,100w,150w,200W.250w.300.320W), according to customers requirement.
FAQ
We have organized several common questions for our clients，may help you sincerely：
①what price for each watt?
it depends on the quantity, delivery date and payment terms,
②what is your size for each module? can you tell me the parameter of your module?
we have different series of panels in different output, both c-si and a-si. please take the specification sheet for your reference.
③Can you provide the peripheral products of the solar panels, such as the battery, controller, and inverter? If so, can you tell me how do they match each other?
Yes, we can, we have two companies for solar region, one is CNBM International, the other is CNBM engineering Co.
We can provide you not only the solar module but also Solar Cells, the off grid solar system, we can also provide you service with on grid plant.
④What is your warranty system?
Our product performance guarantees for 25 years
• 12 years guarantee for workmanship
• Timeliness of delivery
• Quality Products certified (TÜV, UL, CE, ISO)
⑤How do you pack your products?
We have rich experience on how to pack the panels to make sure the safety on shipment when it arrives at the destination.
⑥ Can you do OEM for us?
Yes, we can.
⑦How long can we receive the product after purchase?
In the purchase of product within three working days, We will arrange the factory delivery as soon as possible. The pecific time of receiving is related to the state and position of customers. Commonly 7 to 10 working days can be served.
