Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:10000 watt/month
Detailed description

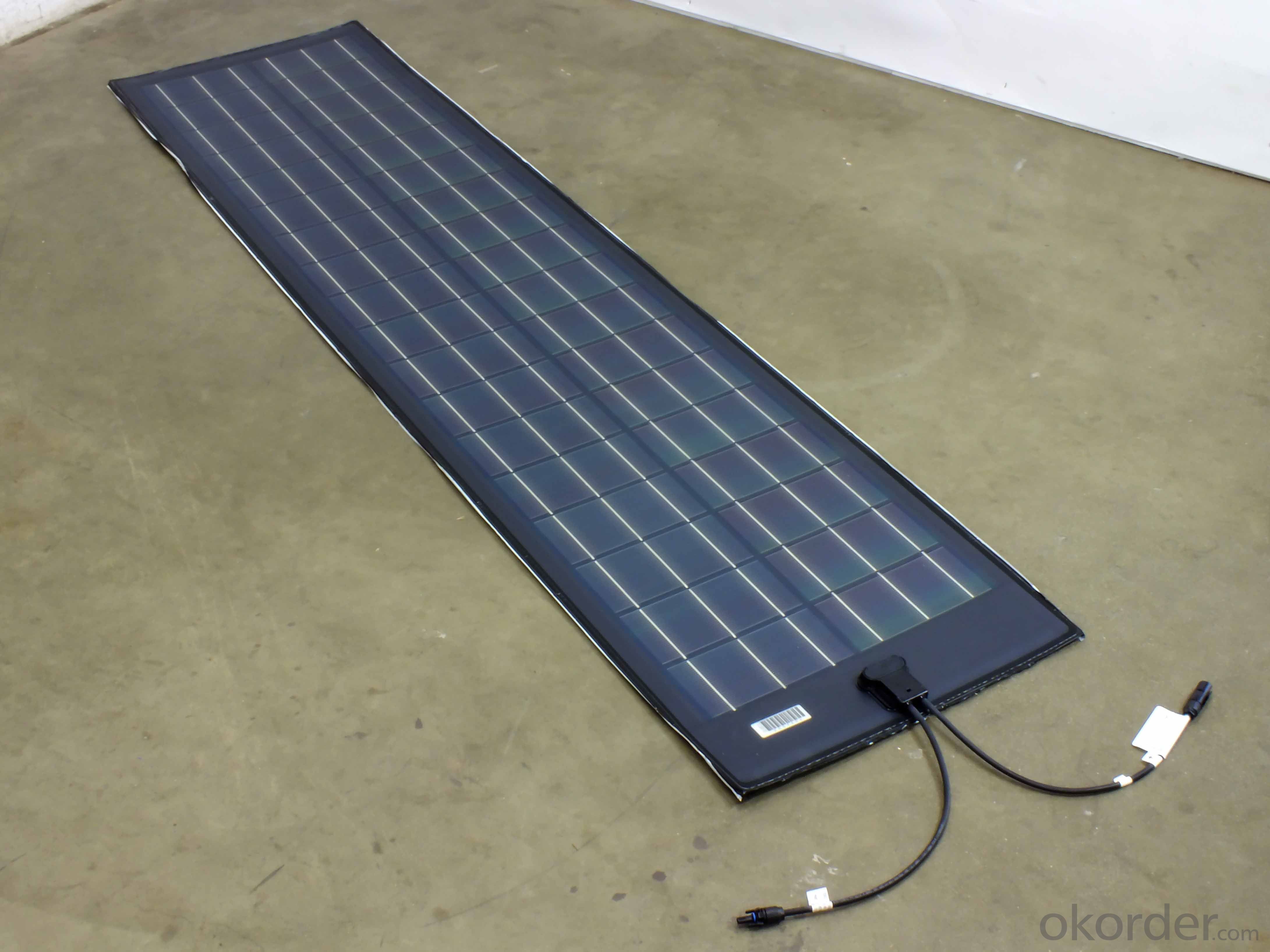

Semi-flexible Crystalline 100w Solar Panels
Solar High efficiency (bendable) solar module are made by high effiiciency Crystalline wafer
importedfrom USA Sunpower,up to 22% or higher,which enable 25-30% high power generation than
the conventional PV modules at the same size.
By adopting the back contact technical,the wafe be coated with the flexible material ,
this semi-flexible solar panel are widely used in field of Electric Golf Car,Patrol Car,
Travel Tourism Car,Yacht.Roof pow er generation,Backpack,Tent and so on.
Specification of 18-135W Bendable Solar panels

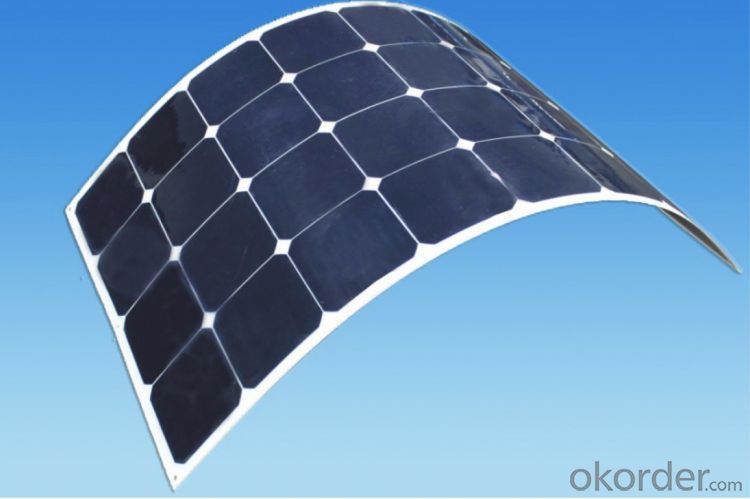

30degree bent angle.
| Module size (mm): | 535*1050 |
| Cell Type | 125x125 |
| Weight(kg) | 3 |
| Power tolerance: | +/-3% |
| Nominal peak power(WP): | 100 |
| Nominal voltage(V): | 17.6 |
| Nominal current (A): | 5.68 |
| NOCT: | 45+/-2°C |
| Voltage temperature coefficient: | -0.33%/°C |
| Current temperature coefficient: | +0.05%/°C |
| Power temperature coefficient: | -0.23%/°C |
| Open circuit voltage (Voc): | 20.8 |
| Short cirsuit current(Isc): | 6.14 |
| Conversion efficiency: | 20.41% |
| Operating temperature: | -40 to+85°C |
| Max system voltage: | 1000V DC |
