Loading Port:Shenzhen
Payment Terms:L/C,T/T
Min Order Qty:1 Pc pc
Supply Capability:100000 Pcs Per Month pc/month
Specifications for 5730 smd led white color
| Model | Power | color | intensity | voltage | current | view angle | CCT |
| SL-WZ5730-EM | 0.5w | white | 60-65lm | 2.8-3.5v | 150mA | 120deg | 5500-6000k |
| SL-IZ5730-EM | 0.5w | warm white | 55-60lm | 2.8-3.5v | 150mA | 120deg | 2850-3150k |
(5730)
Electro-Optical Characteristics(Ta=25°C)
Parameter | Test condition | Symbol | Value |
Forward voltage | If=150mA | Vf | 2.8-3.5v |
Luminous Flux | If=150mA | Φ | 60-65lm |
Viewing angle at 50% Iv | If=150mA | 2θ 1/2 | 120 Deg |
Reverse current | Vr=5v | Ir | 10µA |
Ra | If=150mA | Ra | 70/80/90 |
Absolute maximum ratings (Ta=25°C)
Parameter | Symbol | Value |
Power dissipation | Pd | 700mW |
Forward current | If | 200mA |
Reverse voltage | Vr | 5V |
Operation temperature range | Top | -35~+85°C |
Storage temperature range | Tstg | -40~+100°C |
Pulse forward current | Ifp | 250mA |
Electrostatic discharge | ESD | 2000(HBV)V |
Soldering temperature | Tsld | 260°C for 10 seconds |
Junction temperature | Tj | 105°C |
Feature

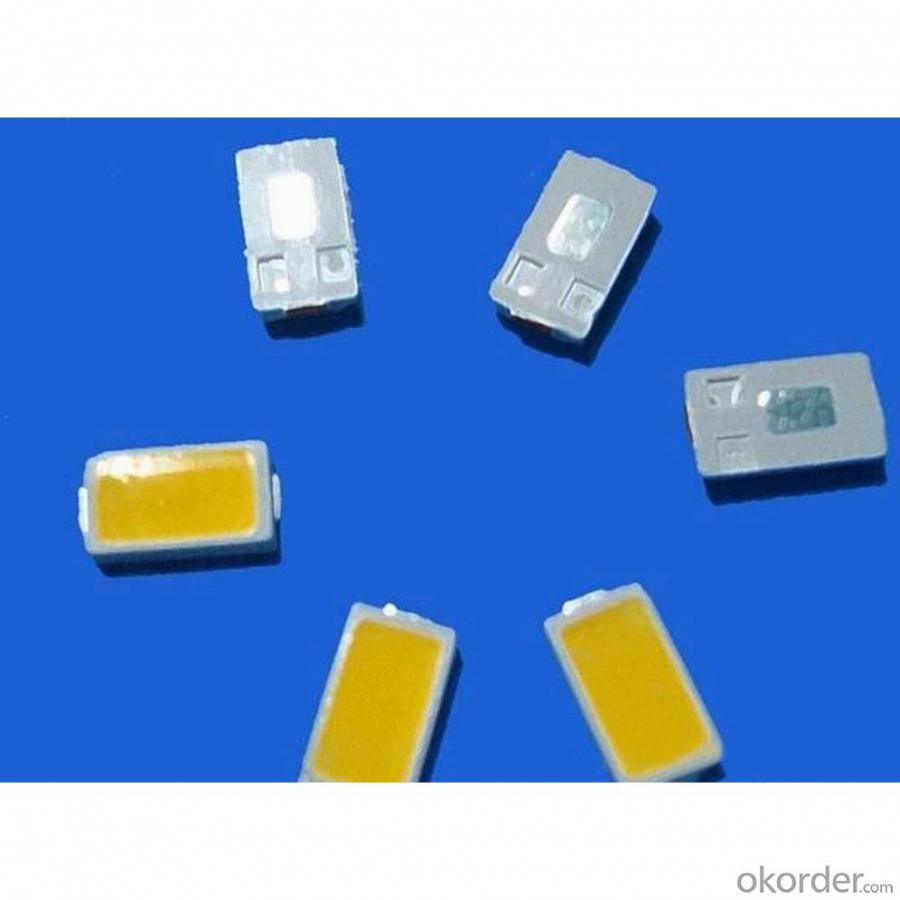

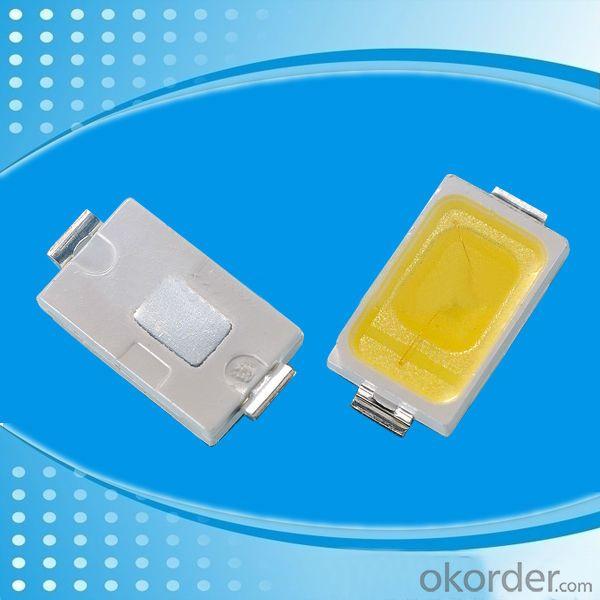

High Lumen 60-65Lm White SMD LED 5730 For LED Bulb
Brand New LED smd
These LED SMD chips are great for all kinds of led lights.
Our SMD LED is very high quality and produces super bright light output.
It emmits a stronger and warm white/ cool white/ pure wihte light colors.
Application
Lighitng for Bar, Hotel, Club , Coffee House, Garden or Freezing beer, Family decoration, downy light.
Packing and delivery
Package:
Standard packing inside, cartons outside
Delivery:
Shipping Service | Estimated Delivery Time |
DHL | 2-8 business days |
FedEx | 3-8 business days |
TNT | 2-10 business days |
UPS | 1-7 business days |
EMS | 6-14 business days |
ePacket | 7-12 business days |
China Post Air Mail | 7-15 business days |
China Post SAL | 14-30 business days |
By sea | 30-40 business days |
1. 3-10 business days for Sample Orders; 7-40 business days for Bulk Orders.
2. "Business days" means Monday-Friday, excluding holidays.
3. DHL and UPS cannot ship to military or P.O. boxes address.
4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.
