Loading Port:Shenzhen
Payment Terms:T/T
Min Order Qty:100 Meters m
Supply Capability:20000 Meters Per Week m/month
Feature:
1.Each RGB 5050 LED has a IC(WS2811) inserted in it.
2.Each LED on the led strip can be cut and controlled seperately.
3.Can design every kinds of lighting effect or even animation as you want
4.With a high grey levels.
5.60 or 30 leds/m, Each LED and one IC as one unit can be cuttable.
6.Gray level 256
Specification
Dimension | 1000x10x4mm | 1000x10x4mm |
LED qty(/m) | 30 | 60 |
Voltage | 5V DC | 5V DC |
View angle | 120 | 120 |
Current | 60 mA | 60 mA |
Watts | Max 9watts | Max 18watts |
Lumen | 360lm/m | 720lm/m |
Cuttable Unit | each 1 LED unit | each 1 LED unit |
Life | 30,000hrs | 30,000hrs |
Color | pixel | pixel |
Control IC Type | WS2811 | WS2811 |
Working Temperature | -20°C- 60°C
| |
Certificate | CE&RoHS | |
Warranty | 1 | 1 |
IP | IP20/IP65 | IP20/IP65 |
Part No. | 5050-30Z-03RGBA-2812 | 5050-60Z-03RGBA-2812 |

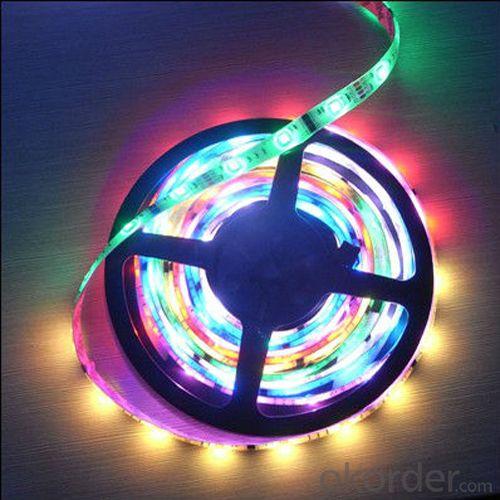

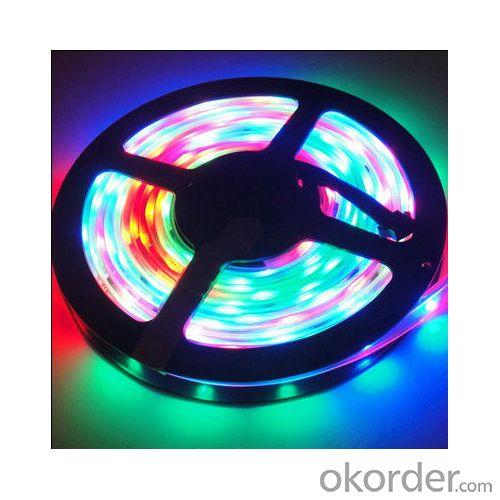

Appearence:
Customized options
Customize your strip light by picture or by technical datas.
Other products in our campany:
filament bulb
LED panel lights
LED module special for lightbox
Parylene coated IP66 LED strip
Packing & Delivery
Package:
plastic bag intside, cartons outside
Delivery:
Shipping Service | Estimated Delivery Time |
DHL | 2-8 business days |
FedEx | 3-8 business days |
TNT | 2-10 business days |
UPS | 1-7 business days |
EMS | 6-14 business days |
ePacket | 7-12 business days |
China Post Air Mail | 7-15 business days |
China Post SAL | 14-30 business days |
Air freight | 3-10 business days |
By Sea | 30-40 business days |
1. 3-5 business days for Sample Orders; 7-30 business days for Bulk Orders for Bulk Orders.
2. "Business days" means Monday-Friday, excluding holidays.
3. DHL and UPS cannot ship to military or P.O. boxes address
4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.
