Loading Port:Shenzhen
Payment Terms:L/C,T/T
Min Order Qty:10 Pcs pc
Supply Capability:20000 Pcs Per Month pc/month

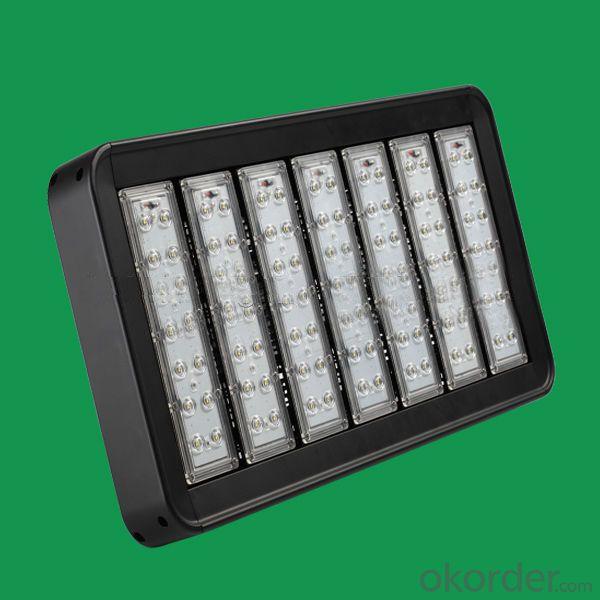

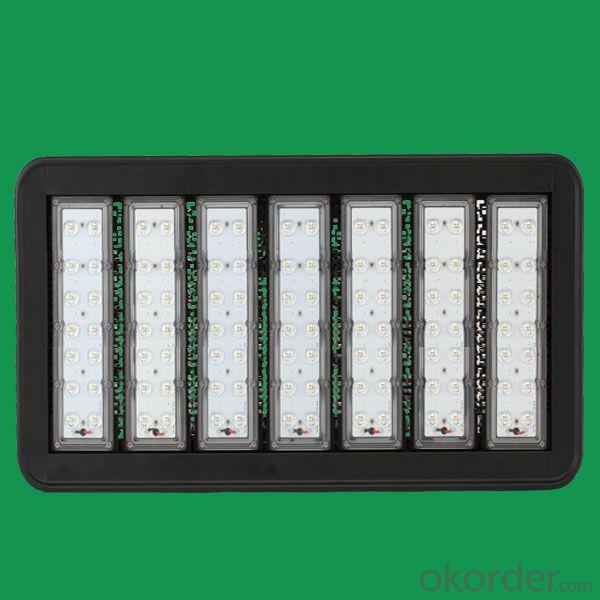

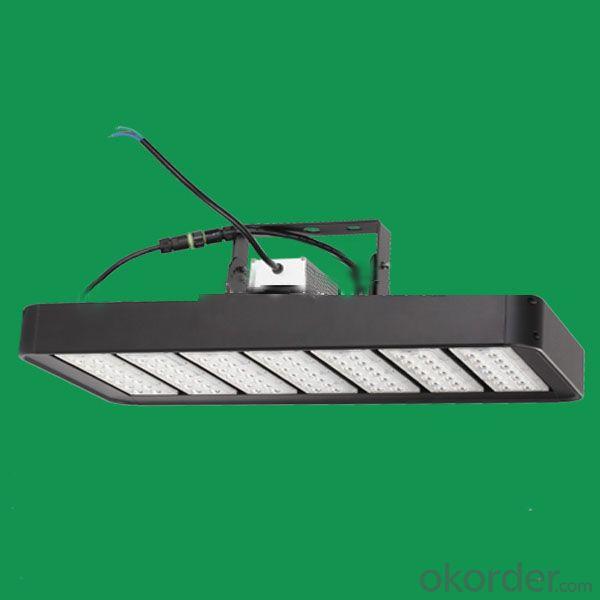

NEW Design TUV UL SAA CB 40W-280W Outdoor LED Flood Light
Model | Power | Luminous Flux: | Lamp Size | NW | Packing | GW |
AOK-40Wi | 40W | 4000lm | 303*151*183mm | 3.5kg | 370*300*255mm | 6.3kg |
AOK-80Wi | 80W | 8000lm | 303*232*183mm | 5.2kg | 380*300*255mm | 8.1kg |
AOK-120Wi | 120W | 12,000lm | 303*311*196mm | 6.15kg | 375*470*255mm | 9.3kg |
AOK-160Wi | 160W | 16,000lm | 392*303*196mm | 7.15kg | 375*500*255mm | 10.5kg |
AOK-200Wi | 200W | 20,000lm | 473*303*196mm | 8.5kg | 375*542*255mm | 11.8kg |
AOK-240Wi | 240W | 24,000lm | 554*303*196mm | 9.25kg | 375*625*255mm | 13.5kg |
AOK-280Wi | 280W | 28,000lm | 635*303*196mm | 10.5kg | 375*705*255mm | 14.25kg |
| Driver | Meanwell Driver |
| LED Chips | Philips Luxeon T chip |
| Operating Voltage | 90-305VAC |
| Operating Temperature | -40 ºC to +50 ºC |
| Operating Humidity | 10% to 90% |
| Power Fact | >95% |
| Power supply efficiency | >90% |
| CRI | Ra > 70 (>80 optional) |
| IP Rating | IP65 & IP67 outdoor led flood light |
| Guarantee | 5 Years Warranty Outdoor LED Flood Light |
| Color Temperature | 3000K-6500K |
| Heat Radiator | Anodized Aluninum |
| Face | Anti-static Coating |
| Flood Light LED Certifications | CE, RoHS, TUV, UL, SAA |
| Outdoor LED Flood Light Applications | 1. Warehouse lighting, Industrial lighting 2. Parking Lot Lighting, Garage Lighting 3. Airport, Train Station Lighting 4. Tunnel Lighting |
Applications:
Stage, Advertising Board, Gym, Stadium, Yard, Lawn, Garden, Park, Plaza,Shopping Mall,
Exhibition Hall,Dock, Highway Toll Station etc
Delivery:
Shipping Service | Estimated Delivery Time |
DHL | 2-8 business days |
FedEx | 3-8 business days |
TNT | 2-10 business days |
UPS | 1-7 business days |
EMS | 6-14 business days |
ePacket | 7-12 business days |
China Post Air Mail | 7-15 business days |
China Post SAL | 14-30 business days |
Air freight | 3-10 business days |
By Sea | 30-40 business days |
1. 3-5 business days for Sample Orders; 7-30 business days for Bulk Orders for Bulk Orders.
2. "Business days" means Monday-Friday, excluding holidays.
3. DHL and UPS cannot ship to military or P.O. boxes address
4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.
