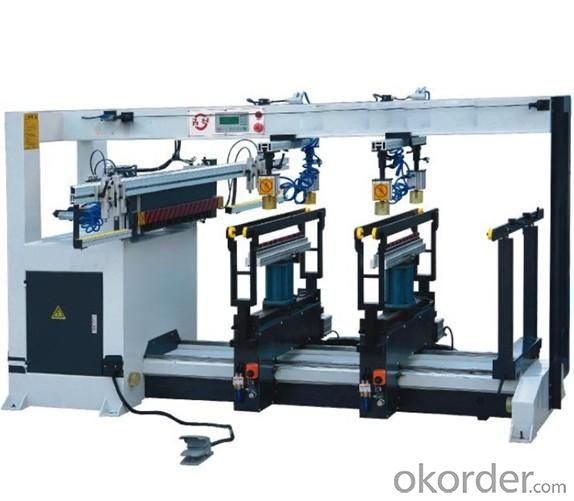

Multi-Head Multi-Row Boring Machine MZB73216

Product Description:

Introduction of Multi-Head Multi-Row Boring Machine MZB73216

1. Patented product, the very 1st creation in china.

2. Automatic loading, feeding, drilling unloading and pilling up working pieces.

3. Not only worked by single unit with automatic loading and unloading, but also linkage with other drilling machines drilling the side, top and bottom holes in one shot.

4. High efficiency: Process 13 pieces of board per minute by connective drilling.

5. Ease labor intensity: Loading and unloading automatically

Technical Parameters of Multi-Head Multi-Row Boring Machine MZB73216

1. Automatic loading and unloading standard height 640mm (custom-made needed for higher than 640mm)

2. Automatic loading and unloading maximum width 800mm

3. Automatic loading and unloading maximum length 2500mm

4. Automatic loading and unloading minimum width 160mm

5. Automatic loading and unloading minimum length 200mm

6. Process 13 pieces of board per minute for automatic loading, feeding, drilling and unloading.

Order Mode

1. Single machine (top-drilling and top-bottom drilling) with automatic loading and unloading device.

2. Linkage multiple machines with automatic loading and unloading device.

3. The number of drill rows, for example: 2 rows on the side, 4 rows on bottom and 4 rows on top.

Characteristic of Multi-Head Multi-Row Boring Machine MZB73216

1. Removable vertical drill rows, precision Italian gear and rack transmission, and Germany positioning digital display with "clear" and "reset" function.

2. Angular air lock of vertical drill rows, convenient and efficient.

3. German linear guides, Taiwanese drill rows.

4. Adjustment vertical drill rows drilling stroke (declining height), better efficiency.

5. Buffered function of the drill rows feeding avoided materials bulging out while at blind hole drilling.

Specification of Multi-Head Multi-Row Boring Machine MZB73216

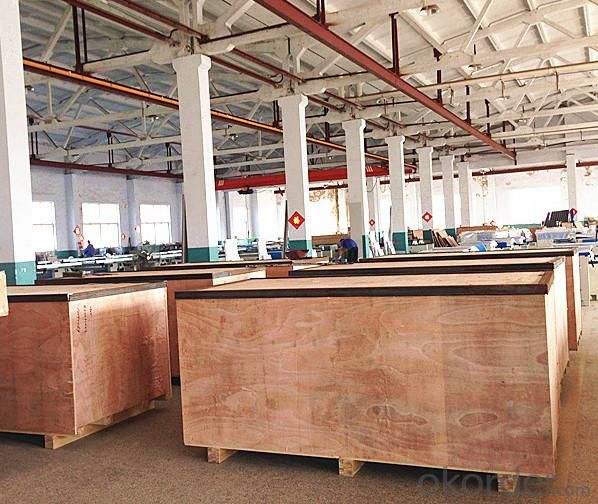

Packing for Multi-Head Multi-Row Boring Machine MZB73216
