Multi Core PVC Insulated and Sheathed Flexible Cable 300/300V & 300/500V

Product Description:

1.Product Description

The cable has the advantage of high mechanical strength,good ambient stress resistance,good electrical properties and anti-chemical corrosion. Flexible wiring, for switch control, instrumentation panels and for internal connection.

1. Voltage rating: 300/300V, 300/500V

2. Conductor area: 0.50~120 sqmm

3. Conductor type: class 5 fine annealed copper wires

4. Insulation and sheath:  PVC

5. Normal operating temp.: 70°C

6. Standard applied: IEC 60227, BS6500, VDE0281, GB/T 5023, JB/T8734

7. Core color: Brown, Grey, Black, Blue, Green/Yellow or others on request

8. OEM can be available

2.Specific Parameter

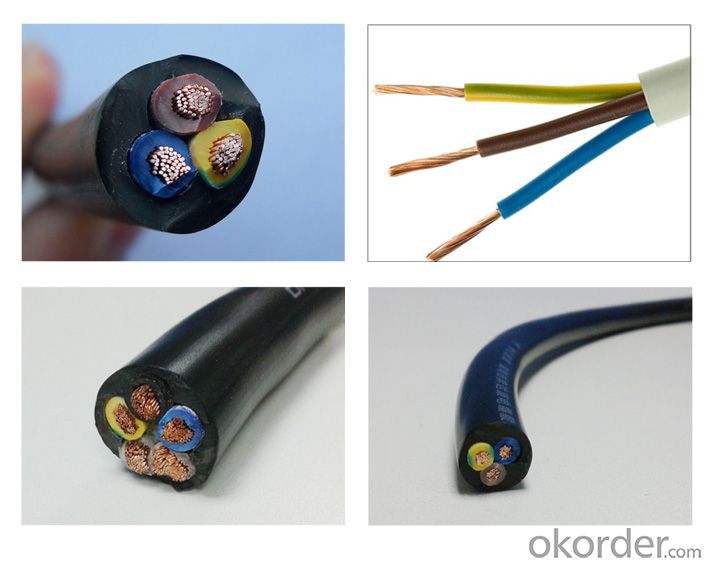

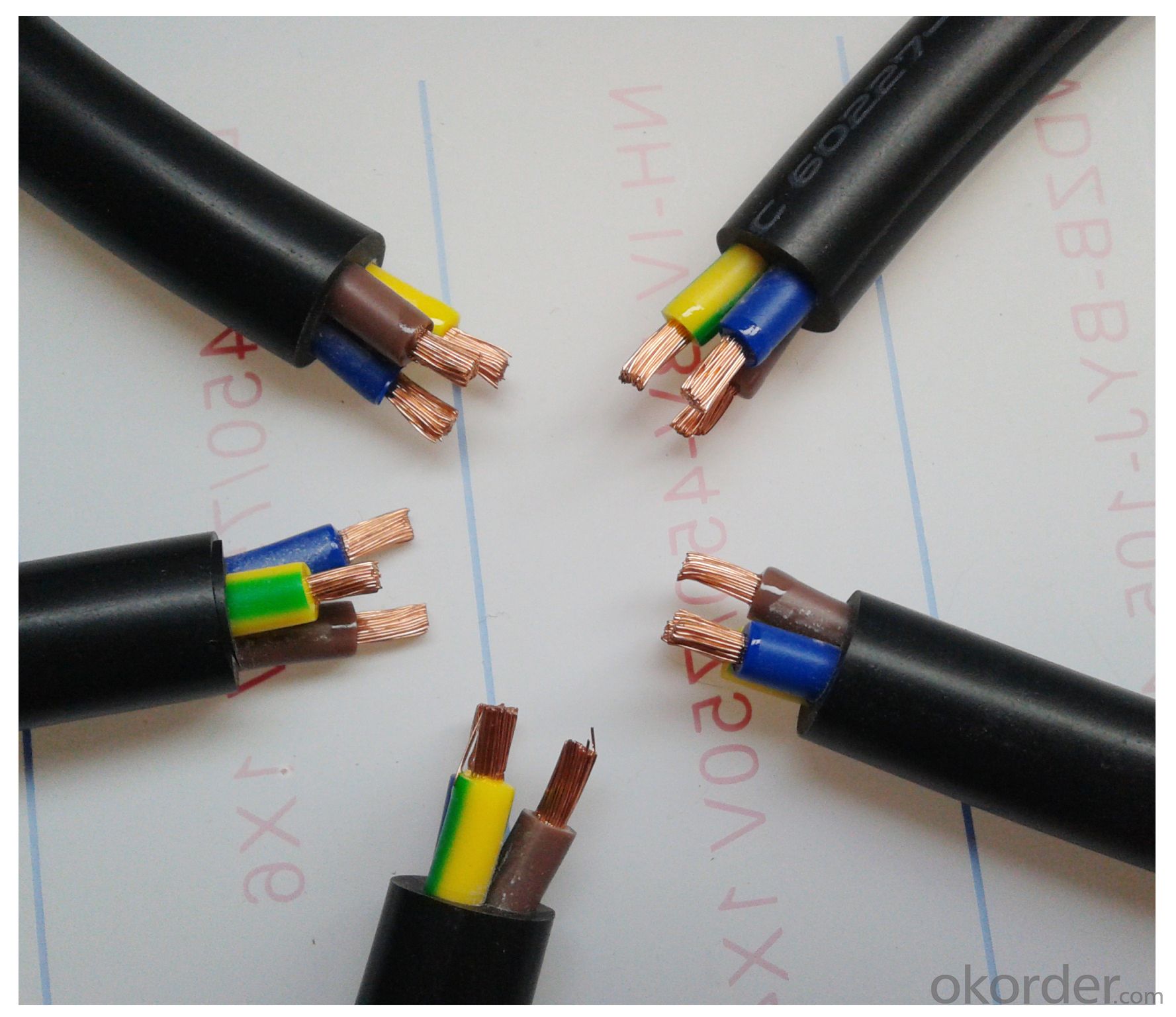

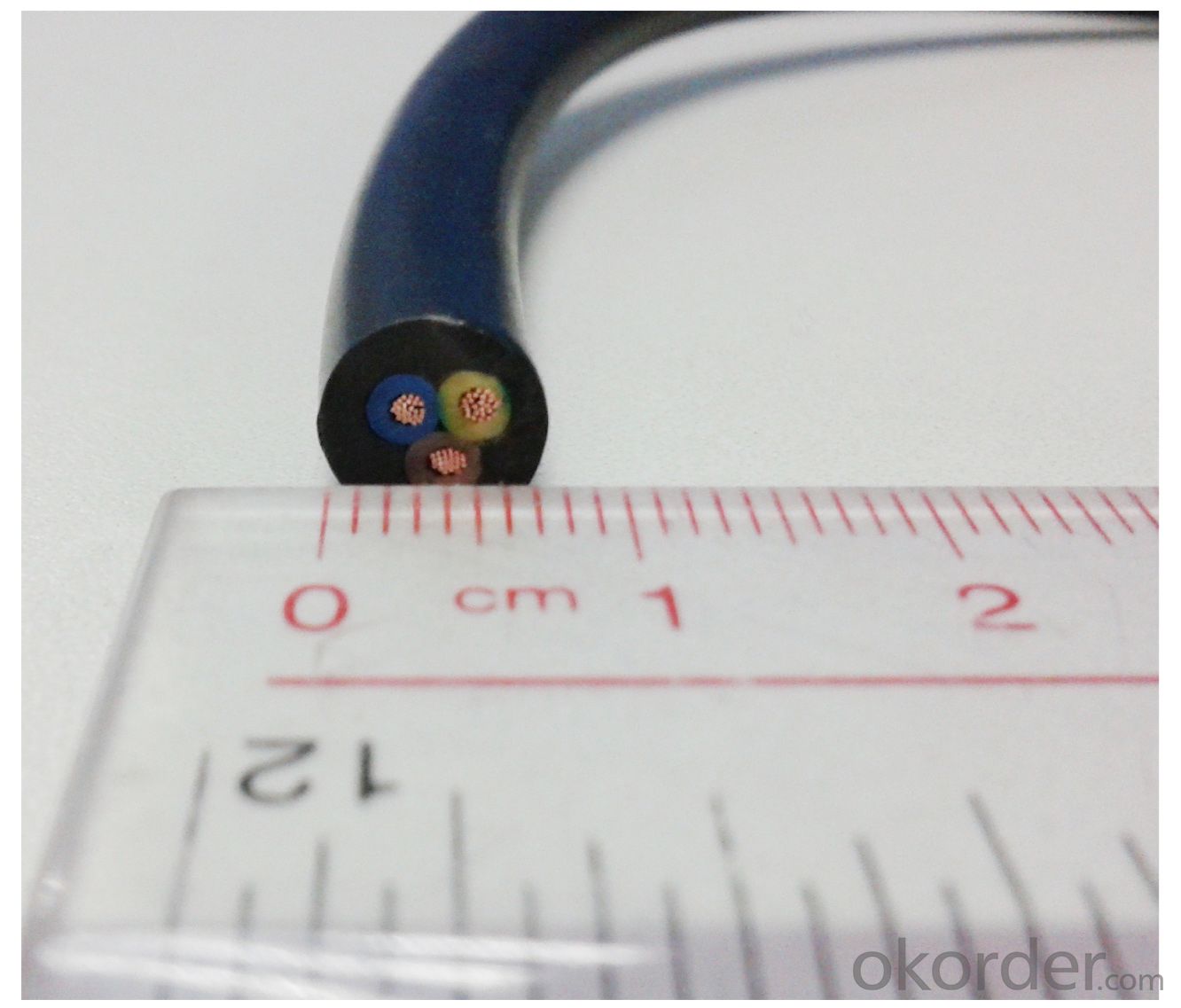

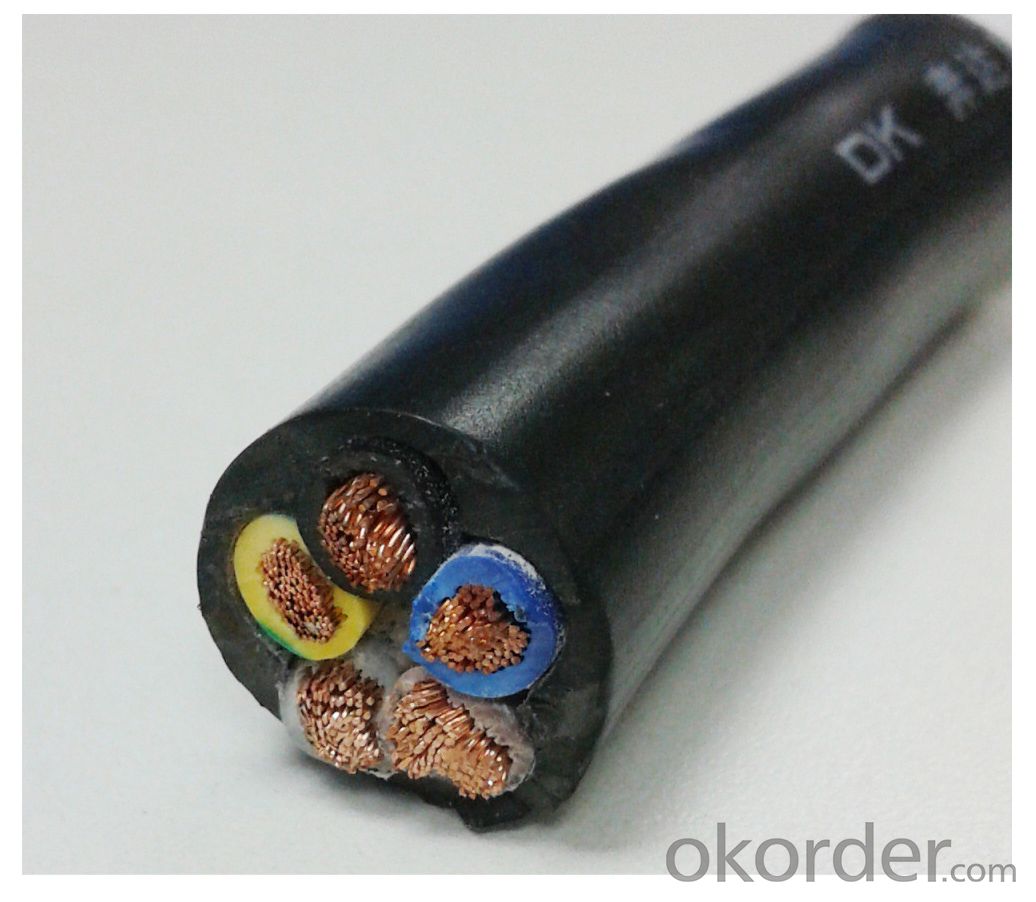

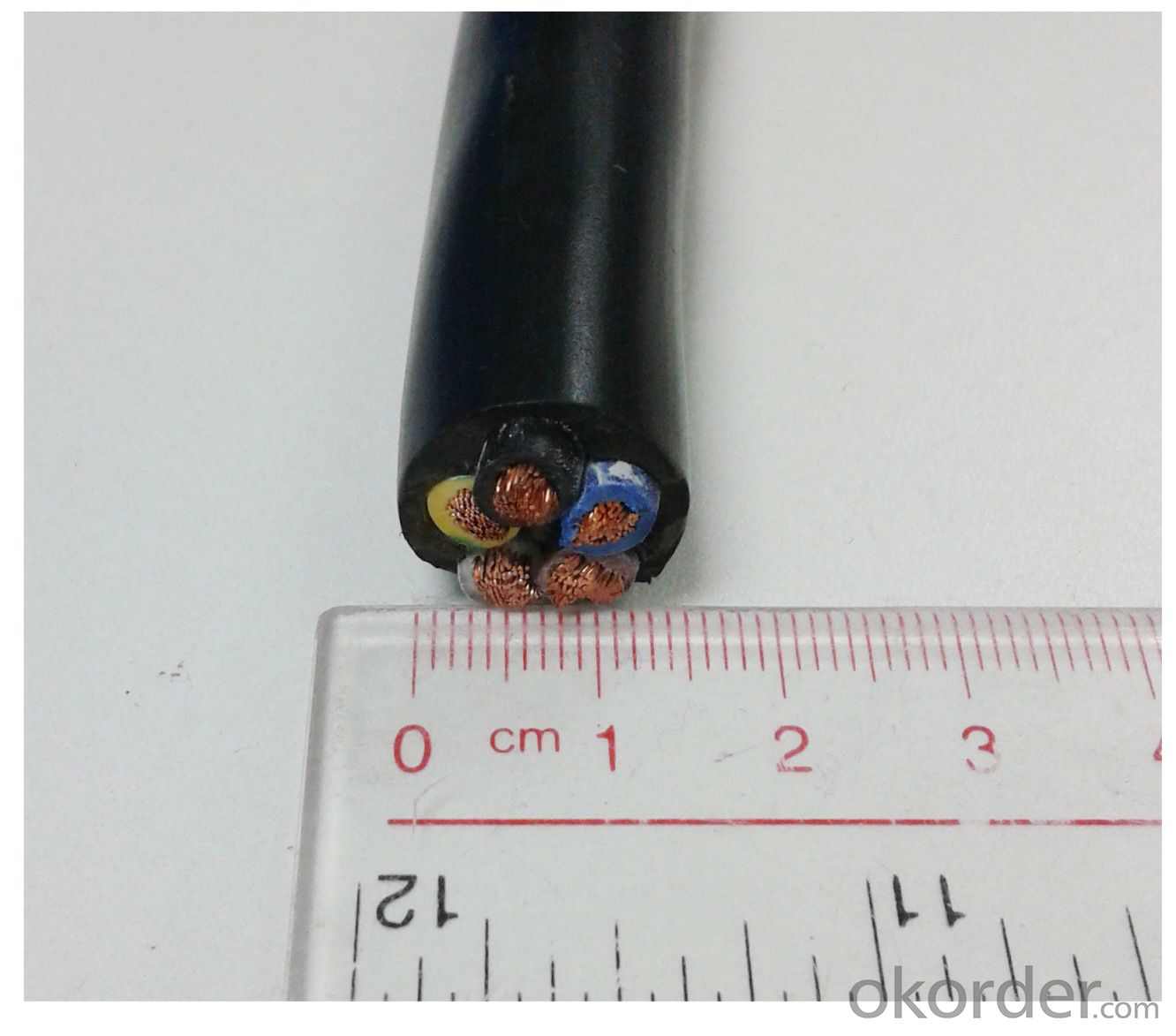

3.Product photo

4.Main manufacturing procedure:

Copper wire drawing and annealing --> Copper wire stranding --> Outer sheath extruding and labeling --> Spooling

5.Main Quality Inspection Equipment:

Sparker tester,Heating aging Chamber,High resistance machine, Oxygen index equipment, Partial discharge inspection instruments, Fireproof testing device,High-power voltage withstand tester,No-rotor Vulkameter,Pull tester,Analytical balance,Direct current bridge,Plastic tester,Projector, Punch machine,Cross-linked cutting machine,etc.

6.Quality Control

7.Company Overview
