Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:100 pc
Supply Capability:10000 pc/month

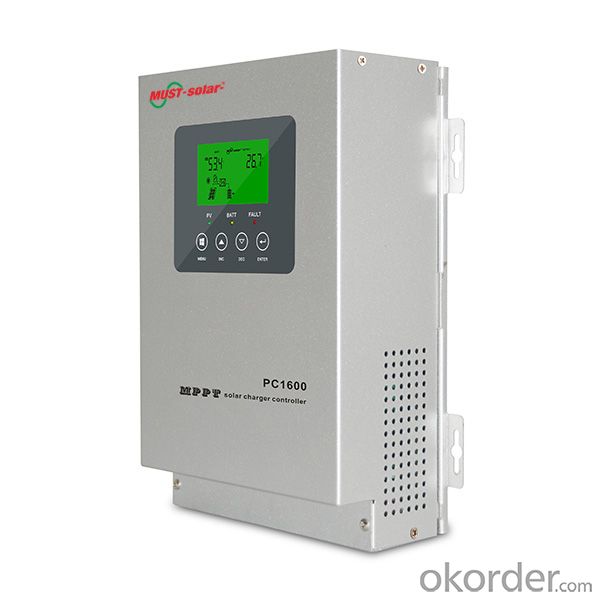

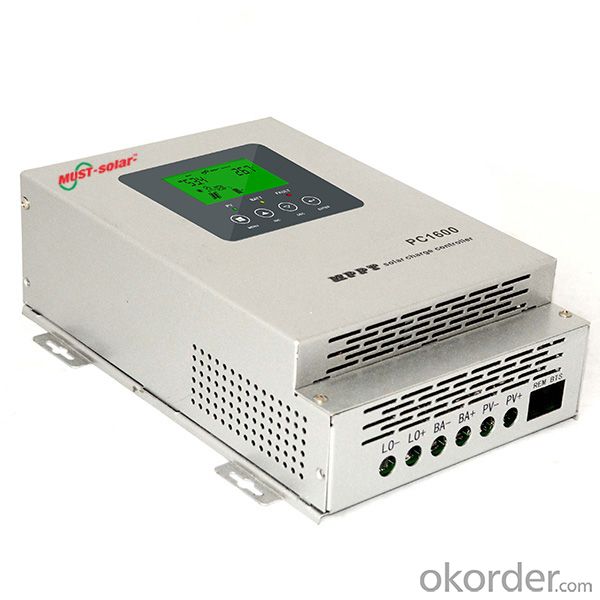

·45A/60A MPPT solar charge controller
·12V/24V/36V/48V auto work
·PV Output :145v Max
·Several seconds tracking speed
·High Tracking efficiency of 99%
·Multiphase synchronous rectification technology
·Peak conversion efficiency of 98%
·DSP processors architecture ensures high speed and performance
·Multifunction LCD displays system data and status
·Four stages charging optimizes battery performance
| Model | PC16-4515F | PC16-6015F | |
| Battery System Voltage | 12V/24V/36V/48 VDC (adjustable) | ||
| Charge Input | |||
| PV Open Circuit Voltage | Operational max = 145VDC temperature corrected VOC | ||
| Max PV Input Power(12V) | 600W | 800W | |
| Max PV Input Power(24V) | 1200W | 1600W | |
| Max PV Input Power(36V) | 1800W | 2400W | |
| Max PV Input Power(48V) | 2400W | 3200W | |
| Battery Voltage | |||
| Nominal Voltage | 12VDC/24VDC/36VDC/48VDC | ||
| Absorption Voltage | 13.5VDC/27.0VDC/40.5VDC/54.0VDC | ||
| Refloat Voltage | 13.7VDC/27.4 VDC/41.1VDC/54.8VDC | ||
| Float Voltage | 14.3VDC/28.6 VDC/42.9VDC/57.2VDC | ||
| Low Voltage Protection Point | 10.5VDC/21.0 VDC/31.5VDC/42.0VDC | ||
| DC Output | |||
| Output Voltage | 11.0~14.3VDC/22.0~28.6VDC/33.0~42.9VDC/44~57.2VDC | ||
| Max Charging Current | 45A amps continuous @ 40°C ambient | 60 amps continuous @ 40°C ambient | |
| Warning for low voltage | 11.5VDC/23.0 VDC/34.5VDC/46.0VDC | ||
| Cutoff for low voltage | 10.5VDC/21.0 VDC/31.5VDC/42.0VDC | ||
| Low voltage recovery | 11.5VDC/23.0VDC/34.5VDC/46.0VDC | ||
| Display | |||
| LED indication | Systematic operation, LV indication, LV protection, over charge protection, loads protection, short circuit protection | ||
| LCD display | Charge voltage, charge current, voltage of battery, capacity of battery, output current | ||
| Alarm | PV array short circuit protection, PV reverser polarity protection | ||
| Battery reverse polarity protection, Over charging protection | |||
| Output short circuit protection | |||
| Low voltage protection for storage battery | |||
| General specification | |||
| Environmental Rating | Indoor | ||
| Charge mode | MPPT, PWM, constant current—constant voltage, function of automatic protection for storage battery | ||

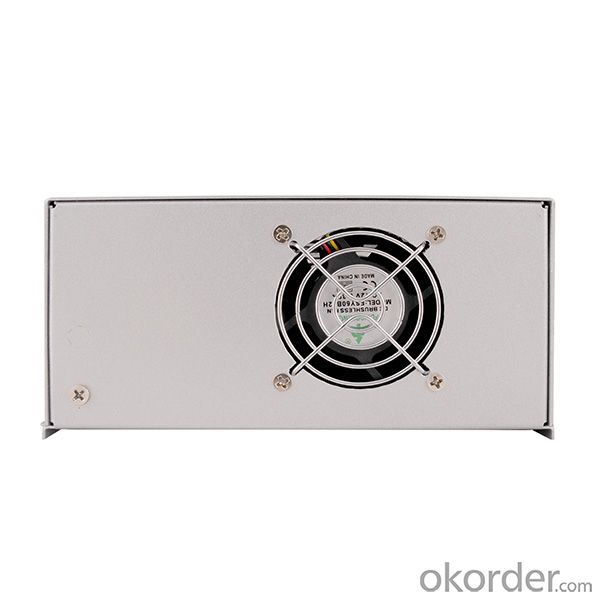

| Radiating mode | Fan cooling | ||
| Working mode | Four stage: Absorption CC, Absorption CV, Float CC, Float CV. | ||
| Peak Conversion efficiency | 98% | ||
| Environment | |||
| Environmental temperature | -25°C ~55°C | ||
| Ambient humidity | 0--90%，No condensation | ||
| Altitude | ≤3000m | ||
| Dimension | |||
| W*H* D(mm)/G.W(kg) | 167.6*257.1*82.9mm/3kg | 390*365*364mm(5pcs/carton) | |
Warrenty
provides a 1～3 year limited warranty (“Warranty”) against defects in materials and workmanship for its Uninterruptible power supply, Power inverter/chargers, Solar charge controllers, Battery Products (“Product”).
The term of this Warranty begins on the Product(s) initial purchase date, or the date of receipt of the Product(s) by the end user, whichever is later. This must be indicated on the invoice, bill of sale, and/or warranty registration card submitted to MUST-Solar. This Warranty applies to the original MUST-Solar Product purchaser, and is transferable only if the Product remains installed in the original use location.
FAQ
1. How do I decide which system is right for me ?
For protection from long outages, include a generator or solar panels in your Must solar system. Shorter outages can be handled by a battery-only system.
2. Where my system will be installed ?
Must solar systems are usually wall-mounted near a home's main electrical (circuit breaker) panel.
3. How do I install my system ?
A must solar backup inverter is connected to a home electric system , we will supply detailed installation manual and videos for our customers .
