CdTe Thin Film Solar Cells - Monocrystalline Silicon Solar Cells 156mm (16.50%-18.35%)

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:1000 watt

Supply Capability:100000000 watt/month

Product Description:

 1.Description of the Solar Cells

Monocrytalline Silicon Solar Cells 156mm (16.50%----18.35%)

We supply regular mono 125x125mm and poly 156x156mm solar cells.

Cells made in China mainland and Taiwan are both available.

Cell production capacity yearly reach 1GW.

Our cells pattern include continuous and uncontinuous busbar to meet different cells line.



2.Mechanical data and design  of the Solar Cells



Format156 mm × 156 mm ± 0.5 mm
Thickness-210 μm ± 40 μm
Front (-)1.5 mm bus bars (silver),blue anti-reflection coating (silicon nitride)
Back (+)2.5 mm wide soldering pads (silver) back surface field (aluminium)



3. Temperature Coefficient of the Solar Cells



Voc. Temp .coef.%/K-0.35%/K
Isc . Temp .coef.%/K+0.024%/K
Pm. Temp. coef.%/K-0.47%/K



4.Electrical Characteristic of the Solar Cells



Efficiency (%)

Pmpp (W)

Umpp (V)

Impp (A)

Uoc (V)

Isc (A)

FF (%)

18.35

4.384

0.526

8.333

0.63

8.877

78.39%

18.20

4.349

0.526

8.263

0.63

8.789

78.54%

18.05

4.313

0.525

8.216

0.63

8.741

78.32%

17.90

4.277

0.524

8.161

0.629

8.713

78.04%

17.75

4.241

0.523

8.116

0.629

8.678

77.70%

17.60

4.206

0.521

8.073

0.628

8.657

77.36%

17.45

4.170

0.519

8.039

0.628

8.633

76.92%

17.30

4.134

0.517

8.004

0.626

8.622

76.59%

17.15

4.098

0.516

7.938

0.625

8.537

76.80%

17.00

4.062

0.512

7.933

0.625

8.531

76.18%

16.75

4.002

0.511

7.828

0.625

8.499

75.34%

16.50

3.943

0.510

7.731

0.625

8.484

74.36%



5.Intensity Dependence of the Solar Cells



Intensity [W/m2]

sc× [mA]

Voc× [mV]

1000

1.00

1.000

900

0.90

0.989

500

0.50

0.963

300

0.30

0.939

200

0.20

0.920

6.Applications of the Solar Cells

electric power generation

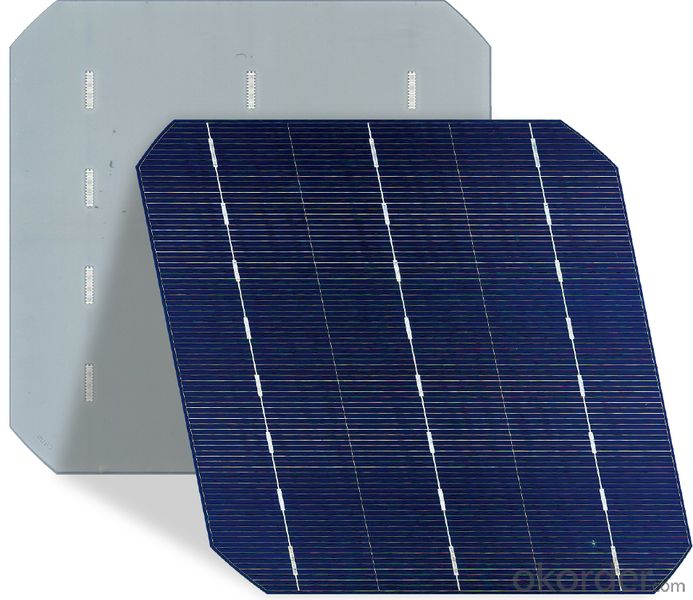

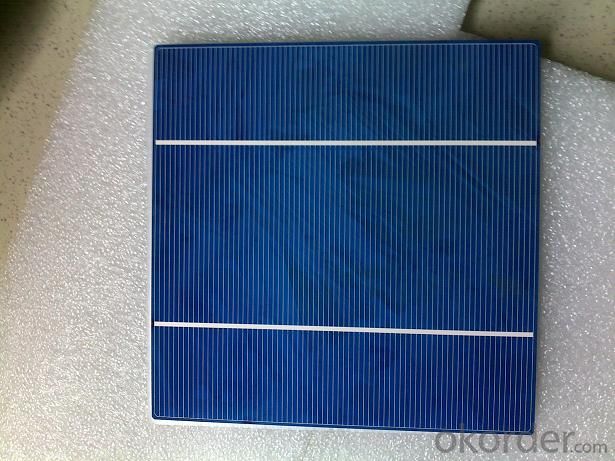

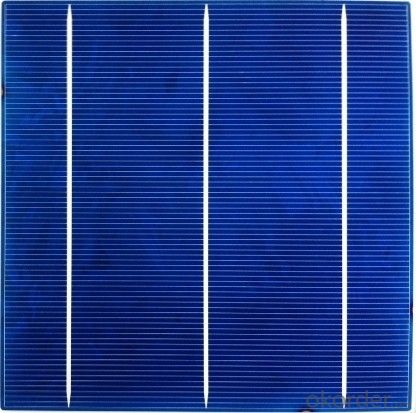

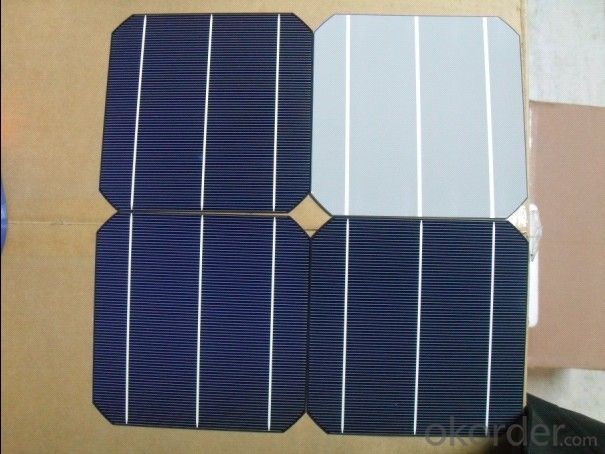

7.IMages of the Solar Cells



Monocrytalline Silicon Solar Cells 156mm (16.50%----18.35%)

Monocrytalline Silicon Solar Cells 156mm (16.50%----18.35%)

Monocrytalline Silicon Solar Cells 156mm (16.50%----18.35%)
