Loading Port:China main port
Payment Terms:TT or LC
Min Order Qty:50 pc
Supply Capability:10000 pc/month

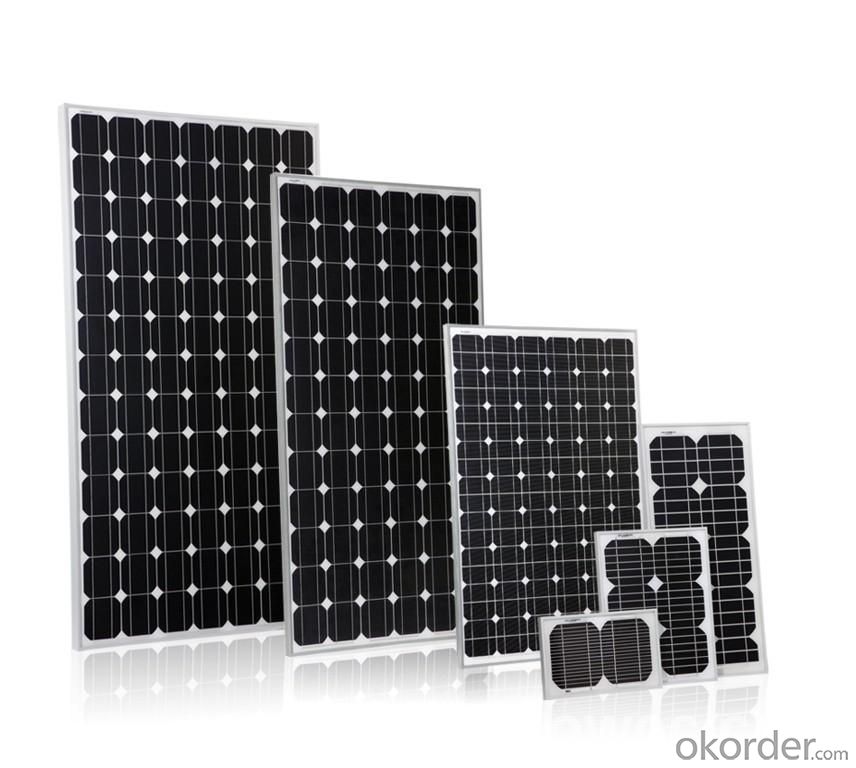

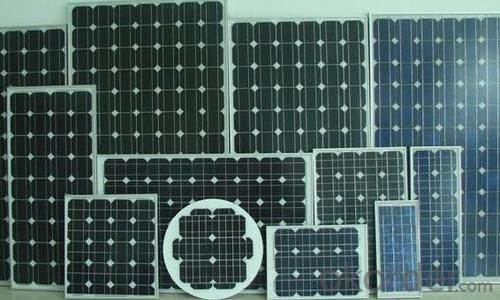

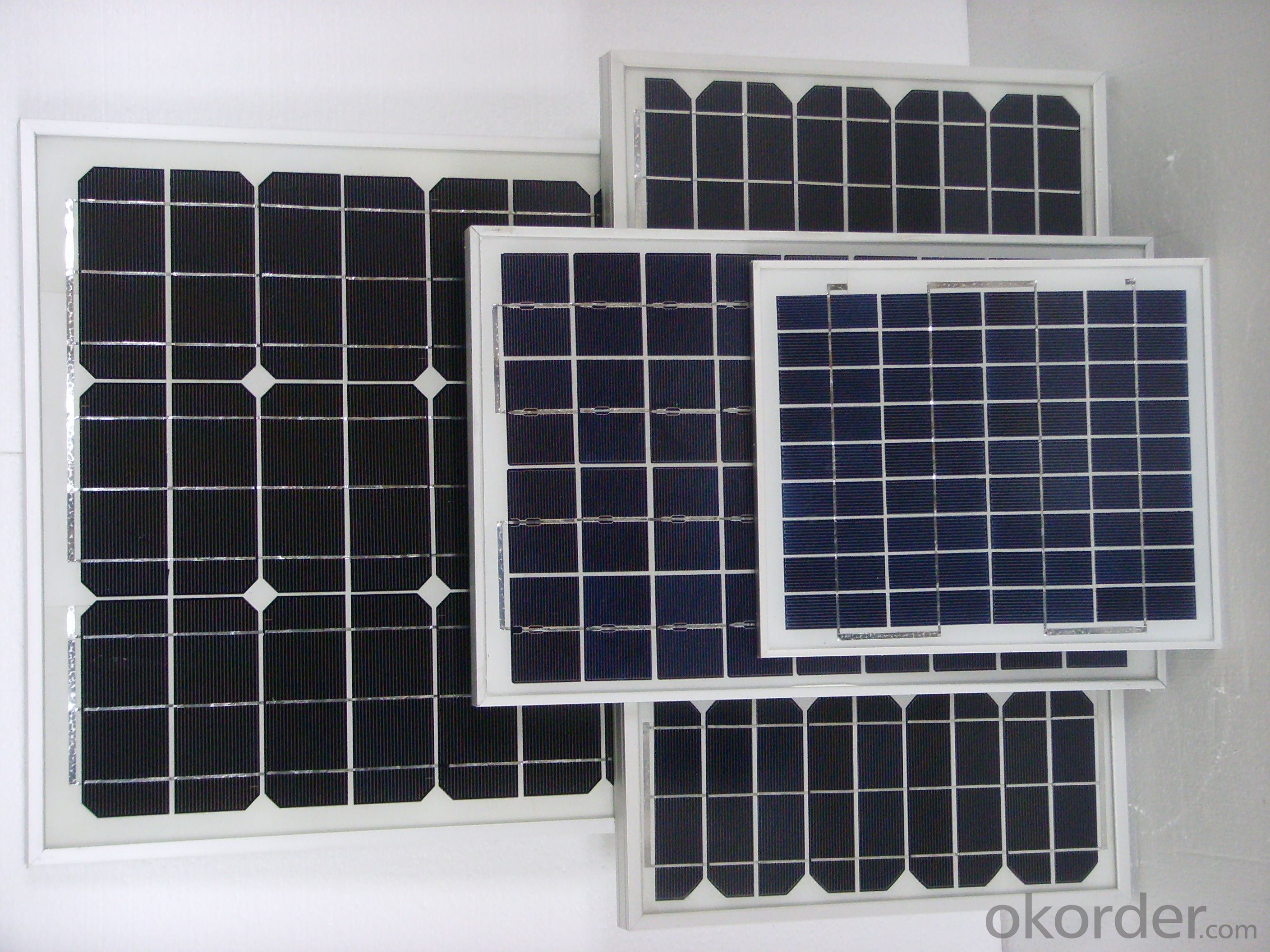

1.Structure of Solar Module Description
CNBM Solar's photovoltaic module is designed for designed for large electrical power requirement. It is the optimal choice for both on-grid and off-grid power systems. CNBM Solar offers high performance of power per square foot of solar array.
2.Main Features of the Solar Module
Solar Cell: High efficency crystalline solar cell. Even if under the weak light, the solar module can produce maximum power output.
Tempered glass: Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.
EVA and TPT: Using high quality EVA and TPT to prevent destroying and water.
Strong aluminum frames to strengthen the load hold and to stand against high wind.
Junction box: Multi function junction box with water proof.
Long lifetime: ≥25 years; Less power decrease.
Good performance of preventing from atrocious weather such as wind and hails.
Resisting moisture and etching effectively, not effected by geology.
The certificate issued by international authority: UL, TUV, IEC, VDE, CE.
| Place of Origin: | Zhejiang China (Mainland) | Brand Name: | CNBM | Model Number: | SH-250S6-20 |
| Material: | Monocrystalline Silicon | Size: | 1650mm*992mm*45mm | Number of Cells: | 60(6x10) |
| Max. Power: | 250w | Certificate: | TUV |
| Packaging Detail: | 250w black solar panel package information, usually use carton, wooden case and pallet |
| Delivery Detail: | 25-35 days after all payment confirmed |
Dimensions 1650mm*992mm*45mm
Weight 19kg
Optimum Operating Voltage: 30.7V
Optimum Operating Current: 8.144A
250w full black mono solar panels specification as following
| Electrical Characteristics | |
| Model | SH-250S6-20 |
| Maximum Power at STC (Pamx) | 250w |
| Optimum Operating Voltage (Vmp) | 30.7V |
| Optimum Operating Current (Imp) | 8.144A |
| Open-Circuit Voltage (Voc) | 36.91V |
| Short-Circuit Current (Isc) | 9.153A |
| Solar Cell Efficiency (%) | 17.7 |
| Solar Module Efficiency (%) | 15.27 |
| Operating Temperature | -40to85°C |
| Maximum System Voltage | DC1000 |
| Maximum Series Fuse Rating | 15A |
| Power Tolerance | ±3% |
| STC:Irradiance 1000W/m2,Modules Temperature 25°C,AM=1.5 | |
| Mechanical Characteristics | |
| Solar cell | Mono-Crystalline156*156mm |
| No.of cells | 60(6×10) |
| Dimensions | 1650mm*992mm*45mm |
| Weight | 19kg |
| Front glass | 3.2mm tempered glass |
| Frame | Anodized aluminium alloy |
| Junction box | PV-YH0906 |
| Connector | Plug and socket |
| Output cables | PV 4.0mm2,0.9m |
| 1*20' | 294pcs |
| 1*40' | 616pcs |
| 1*40'HQ | 700pcs |
| Temperature Coefficient | |
| Nominal Operating Cell Temperature (NOCT) | 47°C±2°C |
| Temperature Coefficient of Pmax | -0.46%/K |
| Temperature Coefficient of VOC | -0.356/K |
| Temperature Coefficient of ISC | +0.024/K |
| Certificates | |
| TUV | |
| Warranties | |
| 10 years limited product warranty | |
| 15 years at 90% of the minimal rated power output | |
| 25 years at 80% of the minimal rated power output | |
5.FAQ of Solar Module
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Jiangyin city, jiangsu province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
