Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:100 pc
Supply Capability:10000 pc/month
| Place of Origin: | Anhui China (Mainland) | Brand Name: | CNBM | Model Number: | TDM060-BIPV-A-24 |
| Material: | Monocrystalline Silicon | Size: | 125x125mm | Number of Cells: | 24pcs |
| Max. Power: | 60W | Color: | Blue |

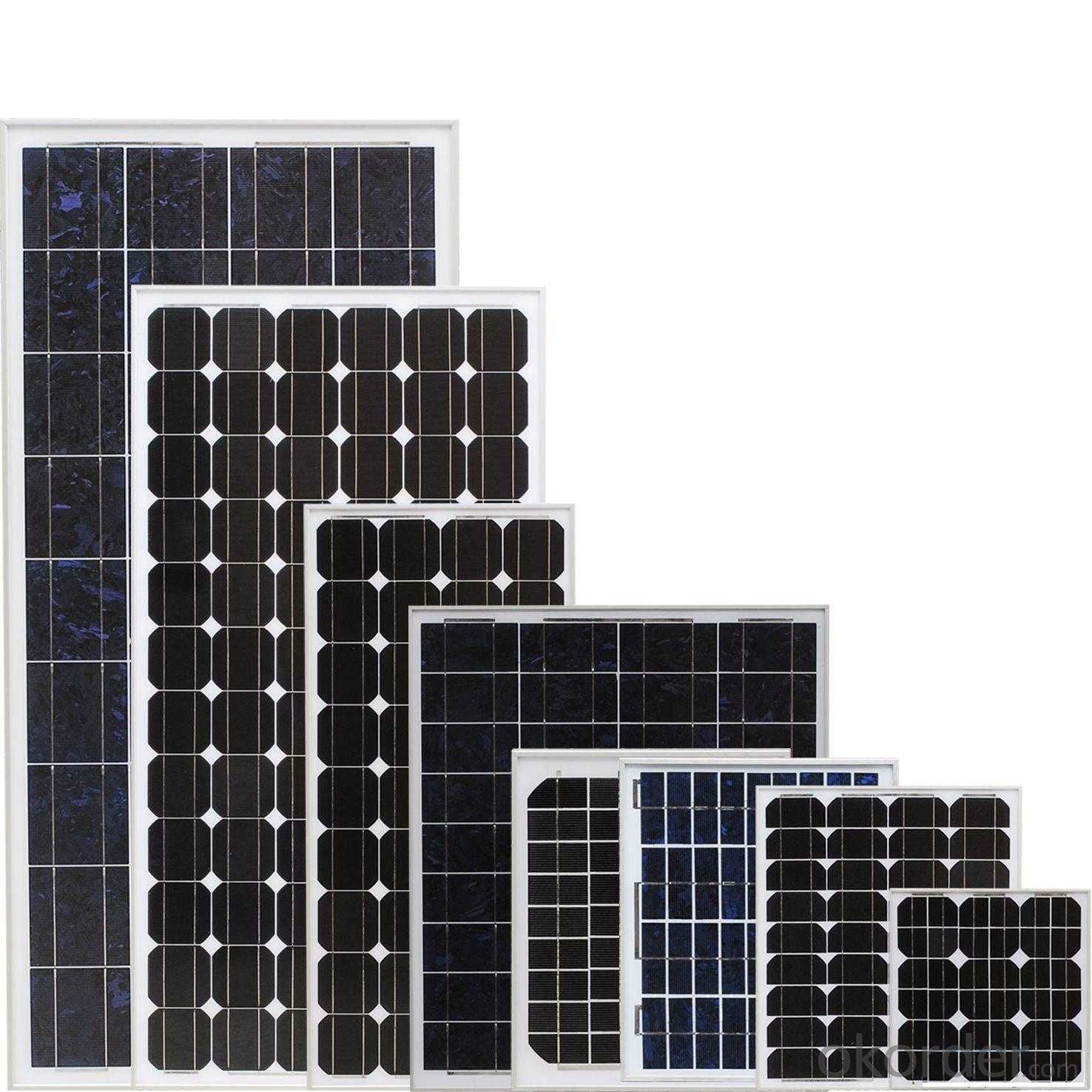

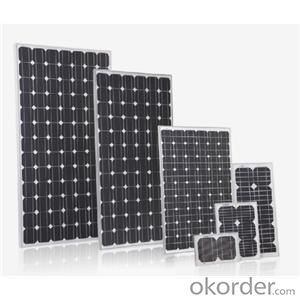

TDM060-BIPV-A-24 Series consist of Photovoltaic Modules 24pcs 125x125mm mono-crystalline high efficient silicon cells
TDM060 Series consist of Photovoltaic Modules 24pcs 125x125mm mono-crystalline high efficient silicon cells which are individually characterized and electronically matched before inter-connection and Laminated with toughened glass, EVA of high quality, Double Glazing Module, Module Type: TDM060-BIPV-A-24, Module Size: 1500mm x 800mm, Cell size: 125x125mm Monocrystal, Cell Array: 6x4, Max. Power: 60W; Voltage at Max. Power (vmp): 13.54V; Current at Max. Power (Imp): 4.431V; Open Circuit Voltage (voc): 15.78V; Short Circuit Current (lsc): 5.281V; Transparency: 70%; Glass Thickness: 5mm+5mm; Gross Weight: 34KG. The module can be installed easily and work for a long period. At the same time, they cans withstand the storm, strong wind and hail impact, etc. Payment Terms: 30% Deposit, Balance agents B/L
