Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:100 pc
Supply Capability:10000 pc/month
| Place of Origin: | Zhejiang, China (Mainland) | Brand Name: | CNBM | Model Number: | EJ60M |
| Specification: | Normal | Application: | Home | Output Voltage (V): | 30 |
| Solar Power (W): | 250/255/260 W |
| Packaging Details: | Standard export carton for container order, extra pallet for LCL. |
| Delivery Detail: | 15-20 days for 300KW after recept of deposit |
250w solar panel
TUV approved
15 days delivery for 120KW
10 years product warranty

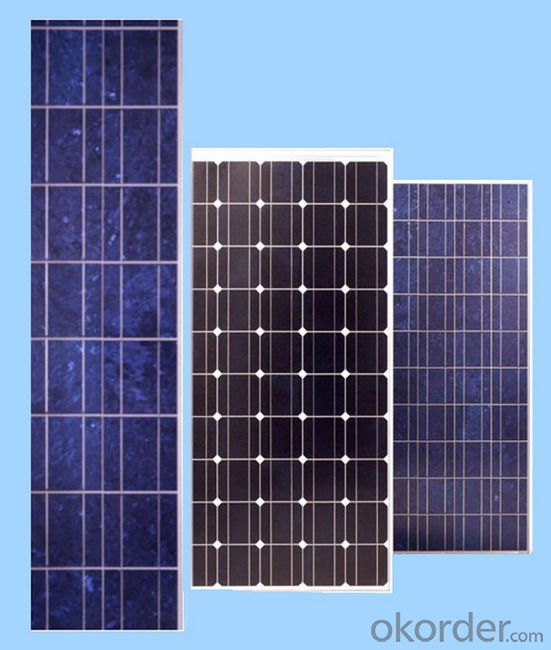

250w 260w monocrystalline solar panel solar module, TUV certified
EJ60M is a good selling type. It features A-grade high efficiency monocrystalline solar cells and is assembled in compliance with EJAI’s unique quality standards. Featuring 60 6” solar cells, the EJ60M not only is a preferred option for residential systems, but also proved to be a great match for commercial and large-scale applications
Specification:
Model | EJ60M-250 | EJ60M-255 | EJ60M-260 |
Maximum Power (Pmax) | 250Wp | 255Wp | 260Wp |
Power Density (Wp/m2) | 153.7 | 156.7 | 159.5 |
Maximum Power Voltage (Vmp) | 30.52V | 30.62V | 30.70V |
Maximum Power Current (Imp) | 8.19A | 8.33A | 8.47A |
Open-Circuit Voltage (Voc) | 37.54V | 37.66V | 37.76V |
Short-Circuit Current (Isc) | 8.84A | 8.99A | 9.14A |
Cell Efficiency | 17.9% | 18.3% | 18.7% |
Module Efficiency | 15.4% | 15.7% | 16% |
No. of Diodes | 6 | ||
Maximum System Voltage | 1000V | ||
Maximum Series Fuse Rating | 15A | ||
Power Tolerance | -0/+3% | ||
Temperature Coefficients of Pmax | -0.43%/°C | ||
Temperature Coefficients of Voc | -0.3%/°C | ||
Temperature Coefficients of Isc | +0.04%/°C | ||
Nominal Operating Cell Temp. (NOCT) | 45±2°C | ||
