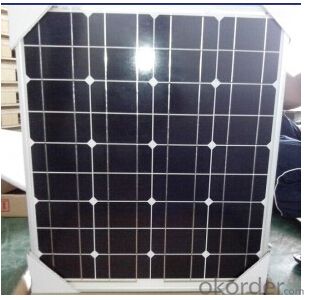

HJT Solar Panels - Monocrystalline Silicon 40W

Product Description:

Description：

Monocrystalline Silicon Solar Panel 120W  : High efficiency crystalline solar cell. Even if under the weak light, the solar module can produce maximum power output.

II Tempered glass (toughened glass): Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.

III EVA and TPT: Using high quality EVA and TPT to prevent destroying and water.

IV AI frame: Without screw, rner connection. 6 holes on the frame can be installed easily.

V Junction box: Multi function junction box with water proof.

VI Long lifetime: ≥25 years; Less power decrease.

VII Good performance of preventing from atrocious weather such as wind and hails.

VIII Resisting moisture and etching effectively, not effected by geology.

Standard Test Conditions of Monocrystalline Silicon Solar Panel 120W :

The opto-electrical specifications shown below are stabilized values being measured at Standard Test Conditions, Irradiance: 1000W/m2, Spectrum: AM1.5 at 25°C, The info below is subject to manufacturing tolerances. Where appropriate minutes of measurement are available and are used for the dimensioning of the installation.

Advantages of Monocrystalline Silicon Solar Panel

• CNBM Solar performance guarantees for 25 years

• 12 years guarantee for workmanship

• Timeliness of delivery

Specification of Solar Monocrystalline 125mm Series

Characteristics

Max Power Voltage Vmp (V) 17.2V
Max Power Current Imp (A) 2.33A
Open Circuit Voltage Voc (V) 22.2V
Short Circuit Current Isc (A) 2.48A
Max Power Pm (W) 40W
Temperature Coefficient of Cells
NOCT 47℃±2℃
Temperature Coefficients of Isc (%/℃) +0.06%
Temperature Coefficients of Voc (%/℃) -0.32%
Temperature Coefficients of Pmp (%/℃) -0.45%

Mechanical Data

Type of Cells(mm) mono156×44.6
Dimension 610×510×25mm
Weight 3.7kg
NO. of Cells and Connections 3×12=36
The dimension of the modules can be changed according to the demand of clients
Limits
Operating Temperature –45 °C to +80°C
Storage Temperature –45 °C to +80°C
Max System Voltage 700V

Guarantee

Products Guarantee 2 yrs free from defects in materials andworkmanship
Performance Guarantee No less than 90% within 10yrs and no lessthan 80% within 20yrs

FAQ

We have organized several common questions for our clients，may help you sincerely：

①How to guarantee the quality of the products？

CNBM Solar performance guarantees for 25 years

• 12 years guarantee for workmanship

• Timeliness of delivery

• Quality Products certified (TÜV, UL, CE, ISO)

②How long can we receive the product after purchase?

In the purchase of product within three working days, We will arrange the factory delivery as soon as possible. The pecific time of receiving is related to the state and position of customers.Commonly 7 to 10 working days can be served.
