Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:100 pc
Supply Capability:10000 pc/month
| Place of Origin: | Guangdong China (Mainland) | Brand Name: | ESG | Model Number: | ESGM26096 |
| Material: | Monocrystalline Silicon | Size: | 1600mm*1067mm*50mm | Number of Cells: | 96 |
| Max. Power: | 250W |
| Packaging Detail: | Packed in Carton |
| Delivery Detail: | 15Days |

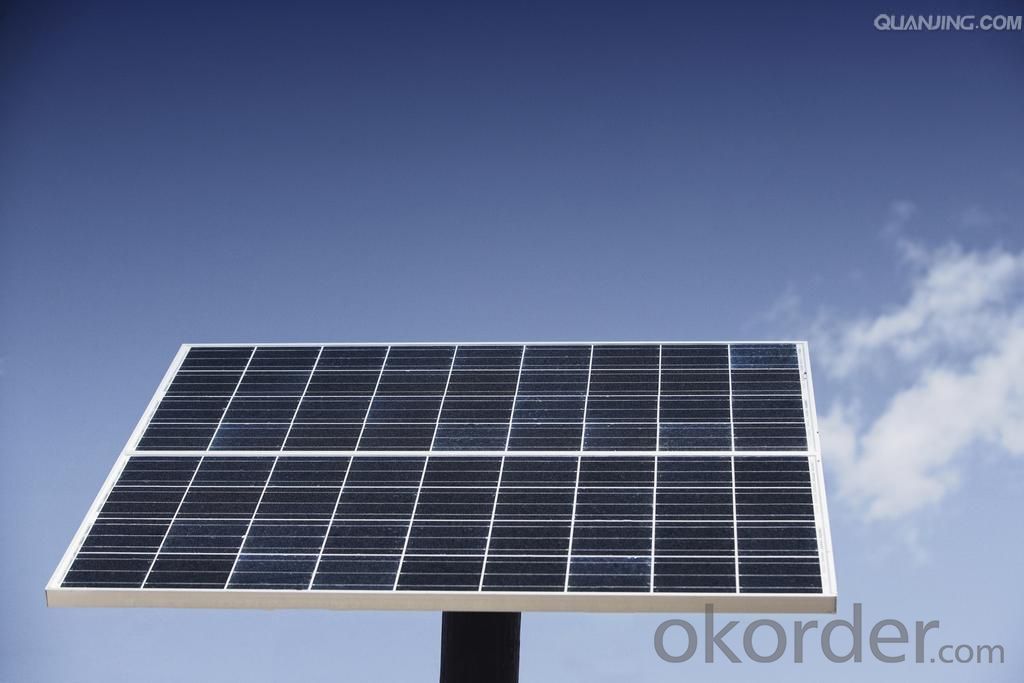

Monocrystalline Solar Panel
1.SOLAR FROM 5W TO 300WATT
2.MONO AND POLY CTRYSTAL SALICON
3.MCS CE TUV IEC CERTIFICATE
250W Monocrystalline Solar Panel
ITEM NO | ESGM-250W |
Cell Type | Mono-crystalline Silicon Solar Cells |
Maximum power (Wp) | 250wp |
Maximum power voltage (V) | 30.6V. |
Maximum power current (A) | 8.17A |
Open circuit voltage (V) | 37.4V |
Short circuit current (A) | 8.95A |
Number of cells (Pcs) | 72(6*12) PCS |
Size of module (mm) | 1640x990x45mm( 156*156mm cell) |
Maximum system voltage (V) | 1000 |
Temperature coefficients of Isc (%) | 0.065+/-0.015%/'C |
Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ 'C |
Temperature coefficients of Pm (%) | -(0.5+/-0.05)%/'C |
Temperature coefficients of Im (%) | +0.1/'C |
Temperature coefficients of Vm (%) | -0.38/'C |
Temperature Range | -40'C~+85'C |
Tolerance Wattage (e.g. +/-3%) | +/-3% |
Glass Type | Tempered Glass |
Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
Allowable Hail Load | steel ball fall down from 1m height |
Weight per piece (kg) | 20KG |
Features:

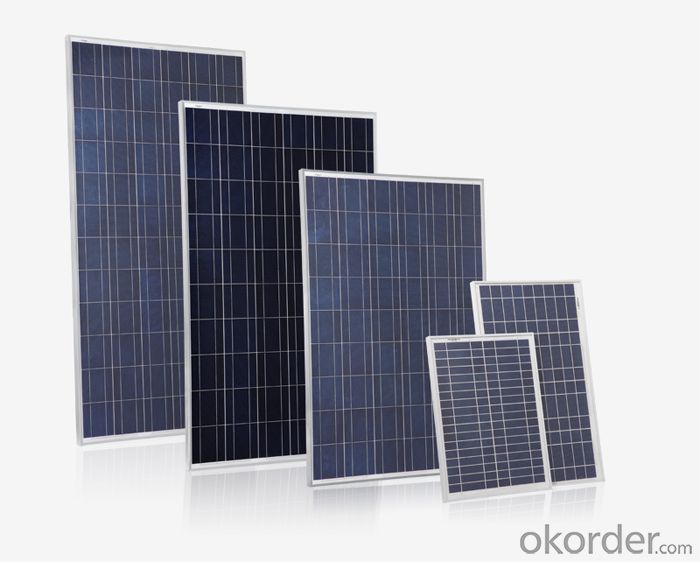

1.Solar panels: from 5W to 310W
2.Solar panel warranty: output power is not less than 90% within 10 years and more than 80% within 25 years.
3. Our solar modules have passed many certificates like TUV, CE, ROHS, ISO, IECetc.
4. Cost of photovoltaic modules: We can get best prices by giving large orders to solar photovoltaic cells and raw material suppliers .
5. Solar cell technology: either Mono-Si or Poly-Si is available.
6. Solar panel efficiency: not less than 15%
7. Power torlerance of PV modules: ± 3%
8. Overall quality of our soalr panels: Tidy joined, anodized corners and aluminum frames make our photovoltaic modules more time consuming.
9. Back sheet: With excellent strength, wether resistance, UV resistance and moisture barrier properties, the backing sheet is used to protect solar cells of photovoltaic modules.
10. Reasonable mumbers of all temperature coefficients.
