Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:1000 watt
Supply Capability:10000000 watt/month
1. Structure of Monocrystalline Silicon Solar Modules 48Cell-215W Description
Solar panel refers either to a photovoltaics (PV) module, a solar hot water panel, or to a set of solar photovoltaics modules electrically
connected and mounted on a supporting structure. A PV module is a packaged, connected assembly of solar cells. Solar panels can be
used as a component of a larger photovoltaic system to generate and supply electricity in commercial and residential applications. Each
module is rated by its DC output power under standard test conditions, and typically ranges from 100 to 320 watts. The efficiency of a
module determines the area of a module given the same rated output – an 8% efficient 230 watt module will have twice the area of a 16%
efficient 230 watt module. There are a few solar panels available that are exceeding 19% efficiency. A single solar module can produce only
a limited amount of power; most installations contain multiple modules. A photovoltaic system typically includes a panel or an array of solar
modules, an inverter, and sometimes a battery and/or solar tracker and interconnection wiring.
2. Main Features of the Monocrystalline Silicon Solar Modules 48Cell-215W
*QUALIFICATIONS & CERTIFICATES
IEC 61215, IEC 61730, MCS, CE, ISO 9001:2008, ISO 14001:2004, BS OHSAS 18001:2007, PV Cycle, SA 8000

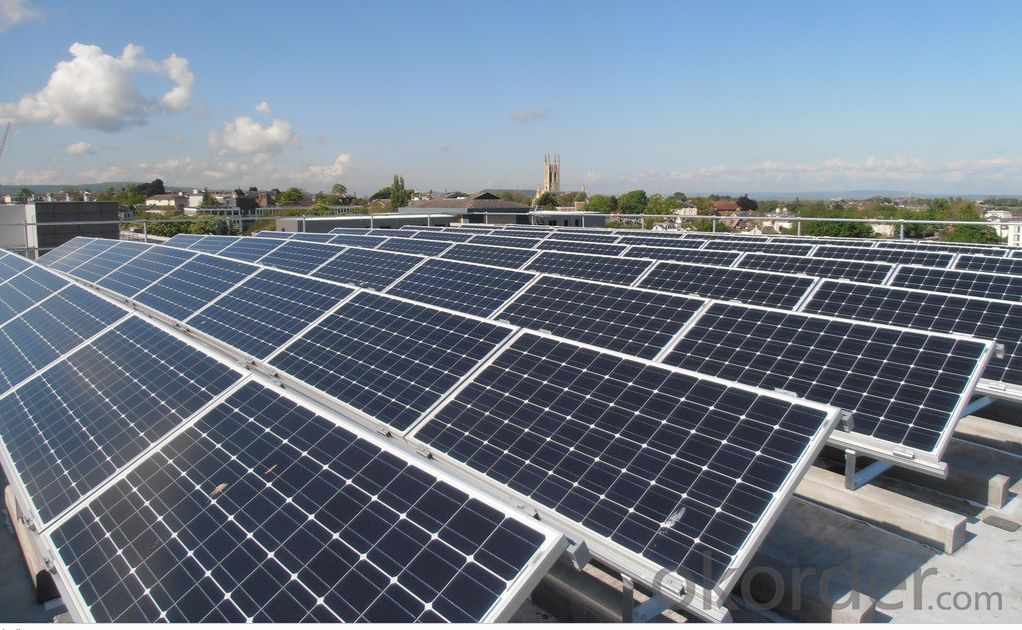

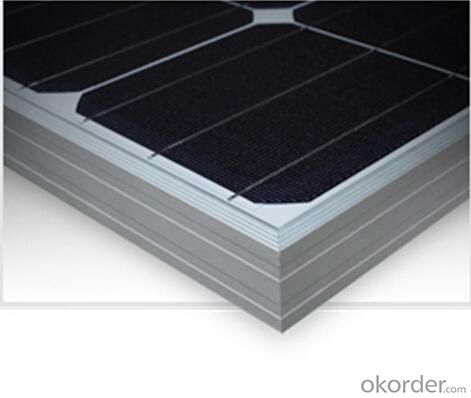

3. Monocrystalline Silicon Solar Modules 48Cell-215W Images
4. Monocrystalline Silicon Solar Modules 48Cell-215W Specification
窗体顶端 Electrical parameters at Standard Test Conditions (STC)窗体底端 | |||
Power output | Pmax | W | 215 |
Power output tolerances | ΔPmax | W | 0 / + 5 |
Module efficiency | ηm | % | 16.3 |
Voltage at Pmax | Vmpp | V | 24.4 |
Current at Pmax | Impp | A | 8.81 |
Open-circuit voltage | Voc | V | 30.9 |
Short-circuit current | Isc | A | 9.41 窗体底端 |
5. FAQ of Monocrystalline Silicon Solar Modules 48Cell-215W
Q1:Can we visit your factory?
A1:Sure,welcome at any time,seeing is believing.
Q2:Which payment terms can you accept?
A2:T/T,L/C,Moneygram,Paypal are available for us.
Q3:How to guarantee the Quality of the products？
A3:We have established the international advanced Quality management system，every link from raw material to final product we have strict Quality test；We resolutely put an end to unQualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance.
