Spectrolab Xtj Monocrystalline Solar Cell 156mm*156mm±0.5mm

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:3000 pc

Supply Capability:300000 pc/month

Product Description:

Solar Cells:

solar cells, when struck by photons of light from the sun, generates an electrical current which can then be used to power DC or AC electrical loads.
A solar cell is made of silicon. Computer chips are made of this same material. Basically, when light strikes the surface of a solar cell some of it is absorbed into the silicon. This light energy bumps the electrons loose and causes energy to flow

Solar cells is made by solar wafer, it has three categories of solar cell right now, monocrystalline polycrystalline and thin film,These cells are entirely based around the concept of PN junction, which is the critical part of solar module, it is the part that can convert the light energy into electricity, the thickness is from 180um to 200um, with even busbars to conduct electricity, textured cell can decrease diffuse reflection; they are often electrically connected and encapsulated as a module. Photovoltaic modules often have a sheet of glass on the front (sun up) side, allowing light to pass while protecting  semiconductor wafers from abrasion and impact due to wind-driven debris, rain, hail, etc. Solar cells are also usually connected in series in modules, creating an additive voltage. Connecting cells in parallel will yield a higher current;With high quality and stable quality. Our Cells can greatly improve the performance of Solar Modules.

Features:

High efficiencies up to 16.4%

Proven long term mechanical stability of silicone

Make of highly purified poly silicone

Three bus bars for reduced series resistance and improved module and cell efficiency

Blue anti-reflecting coating ensures improved light absorption and increased efficiency

Acid texturization offers a uniform appearance and virtually invisible crystal structure

Excellent low light behavior for improved energy yield

Specifications


Cells

Monocrystalline Solar Cell

Intensity[W/m2]

Isc *[mA]

Voc*[mV]

Format

156mm*156mm±0.5mm

1000

1

1

Thickness

190um±20um

900

0.9

0.994

Front(-)

1.4mm bus bars (silver),

500

0.5

0.969

blueanti-reflectingcoating (silicon nitride)

300

0.3

0.946

Back(+)

3mm wide soldering pads (silver)

200

0.2

0.926

Back surface field (aluminium)




Electrical typical values

Product  model

Eff. %

Pmax (W)

Vpm(V)

Ipm (A)

Voc(V)

Isc(A)

18.20%-4.429W

EFF≥18.20%

Pmax ≥4.429

0.535±3

8.2785

0.636

8.815

18.00%-4.380W

18.20%>EFF≥18.00%

4.429>Pmax ≥4.380

0.534±3

8.2022

0.635

8.753

17.80%-4.332W

18.00%>EFF≥17.80%

4.380>Pmax ≥4.332

0.533±3

8.1088

0.634

8.704

17.60%-4.283W

17.80%>EFF≥17.60%

4.332>Pmax ≥4.283

0.531±3

8.0662

0.633

8.620

17.40%-4.234W

17.60%>EFF≥17.40%

4.283>Pmax ≥4.234

0.530±3

7.9896

0.632

8.610

17.20%-4.186W

17.40%>EFF≥17.20%

4.234>Pmax ≥4.186

0.529±3

7.9127

0.631

8.529

17.00%-4.137W

17.20%>EFF≥17.00%

4.186>Pmax ≥4.137

0.527±3

7.8503

0.630

8.459

16.80%-4.088W

17.00%>EFF≥16.80%

4.137>Pmax ≥4.088

0.524±3

7.8024

0.629

8.397

16.60%-4.040W

16.80%>EFF≥16.60%

4.088>Pmax ≥4.040

0.521±3

7.7539

0.627

8.239

16.40%-3.991W

16.60%>EFF≥16.40%

4.040>Pmax ≥3.991

0.519±3

7.6900

0.625

8.198

16.20%-3.942W

16.40%>EFF≥16.20%

3.991>Pmax ≥3.942

0.516±3

7.6404

0.623

8.153

16.00%-3.894W

16.20%>EFF≥16.00%

3.942>Pmax ≥3.894

0.514±3

7.5754

0.620

8.145


Solar Cells Advantage:

1. High efficiency and High power.
2. Long-term electrical stability.
3. Lowest price and Fastest delivery.
4. Good quality and good service.

5.Bulk supply

6. Good Warranty

7.Big Sale

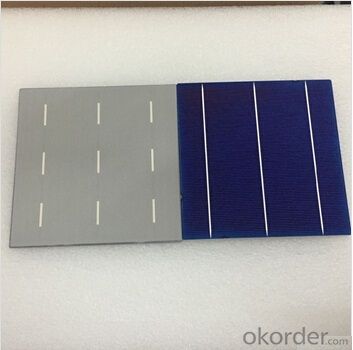

Monocrystalline Solar Cell 156mm*156mm±0.5mm

FAQ

We have organized several common questions for our clients,may help you sincerely:

1, What’s price per product ?

A: It’s depends on the quantity, delivery date and payment terms of the order. We can talk further about the detail price issue. Our products is high quality with lower price level.

2, How to make payment?

We accept T/T or L/C.

3, What is your lead time?

Generally 1-5 weeks depends on the order quantity and your specific requirements.

4, Can you do OEM for us?

Yes, we can.

5, How do you pack your products?

We have rich experience on how to pack the panels to make sure the safety on shipment when it arrives at the destination.
