Loading Port:China main port
Payment Terms:TT or LC
Min Order Qty:50 pc
Supply Capability:10000 pc/month
1.Structure of Solar Module Description
CNBM Solar's photovoltaic module is designed for designed for large electrical power requirement. It is the optimal choice for both on-grid and off-grid power systems. CNBM Solar offers high performance of power per square foot of solar array.
2.Main Features of the Solar Module
Solar Cell: High efficency crystalline solar cell. Even if under the weak light, the solar module can produce maximum power output.
Tempered glass: Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.
EVA and TPT: Using high quality EVA and TPT to prevent destroying and water.
Strong aluminum frames to strengthen the load hold and to stand against high wind.
Junction box: Multi function junction box with water proof.
Long lifetime: ≥25 years; Less power decrease.
Good performance of preventing from atrocious weather such as wind and hails.
Resisting moisture and etching effectively, not effected by geology.
The certificate issued by international authority: UL, TUV, IEC, VDE, CE.
| Place of Origin: | Zhejiang China (Mainland) | Brand Name: | CNBM | Model Number: | MS-M55(36) |
| Material: | Monocrystalline Silicon | Size: | 760*541*35mm | Number of Cells: | 36pcs |
| Max. Power: | 55w | Appication: | solar power station,home,street light etc. | Cable: | TUV certificate |
| Frame: | aluminium frame | cell size: | 125*125mm mono solar cell | TPT: | Excellent anti-climate TPT with TUV certificate |
| EVA: | Anti-ageing EVA with TUV certificate | Glass: | High transparent low iron tempered glass | cell: | A grade mono cell |
| Junction box: | High quality diode of junction box with TUV certificate | Brand: | Macro-Solar |
| Packaging Detail: | carton and pallet |
| Delivery Detail: | depend on the quantity |

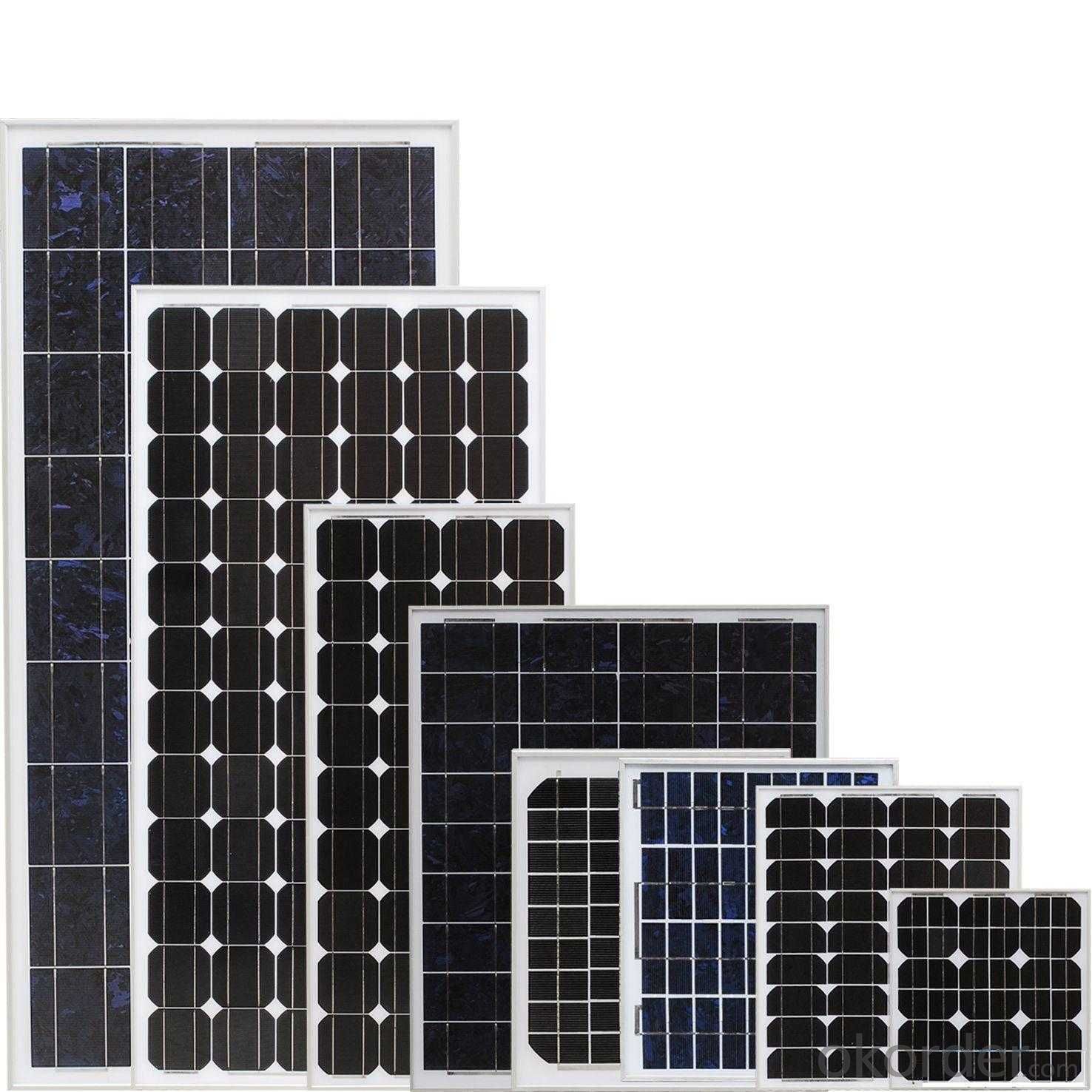

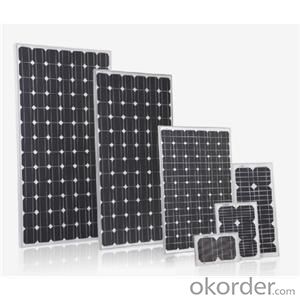

55W mono solar panel solar module
We are manufacturer,can do OEM.
Certified to TUV,CE,ISO9001
Warranty:10 years
55W Solar panel Solar Module
ITEM NO | MS-M55(36) |
Type of cell | Mono |
Maximum power (Wp) | 55W |
Maximum power voltage (V) | 18V |
Maximum power current (A) | 3.05A |
Open circuit voltage (V) | 21.6V |
Short circuit current (A) | 3.29A |
Number of cells (Pcs) | 36 |
Size of module (mm) | 760*541*35mm |
Maximum system voltage (V) | 1000 |
Temperature coefficients of Isc (%) | + 0.1/ °C |
Temperature coefficients of Voc (%) | -0.38/ °C |
Temperature coefficients of Pm (%) | -0.47/ °C |
Tolerance Wattage (e.g. +/-3%) | +/-3% |
Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
Weight per piece (kg) | 5.0kg |
Junction Box Type | ( TUV ) |
Connectors and Cables Type | (TUV) |
Length of Cables (mm) | 900mm |
Cell Efficiency (%) | ≥15.5% |
Output tolerance (%) | +/-3% |
Frame (Material, Corners, etc.) | Aluminum |
Warranty | 10Years products warranty and 25 years 80% of power |
Standard Test Conditions | AM1.5 100mW/cm2 25°C |
FF (%) | 72% |
Limited Warranty:
10years limited warranty on material and workmanship
25 years limited warrranty of 80% power output
(For detailed please refere to Limited Warranty Certificatd issued by Macro-solar Technology Co.,Ltd)The speicification please find contact us at any time!
5.FAQ of Solar Module
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Jiangyin city, jiangsu province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
