Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:5 pc
Supply Capability:1000 pc/month
1. Structure of Monocrystalline Silicon Solar Panel Model CR150M-CR200M
Solar modules, which are widely used in ground mounted utility-scale PV plants, large-scale and small civil and commercial power generating system such as BIPV combined to the grid, roof-mounted PV power system, rural electrification, communications, emergency auxiliary power. Solar PV module is comprised of some solar cells which are connected in serial with high efficiency and enhanced reliability. The solar cells are laminated between sheets of ethylene vinyl acetate (EVA) and high-clarity low-iron tempered glass, and sealed by the silica gel in a anodized aluminum frame . The solar module has got the professional certificate as following:
2. Main Features of Monocrystalline Silicon Solar Panel Model CR150M-CR200M
Esthetic appearance, with stands high wind-pressure and snow load, and easy installation
Water resistant junction box
Design to meet unique demand of customer
25 year poweroutput warranty

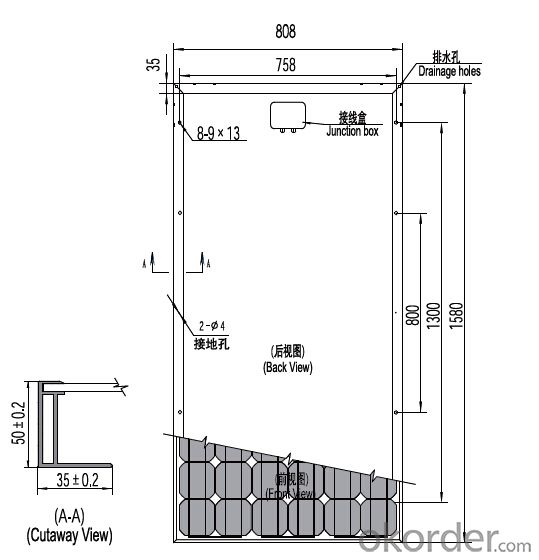

3.Monocrystalline Silicon Solar Panel Model CR150M-CR200M Images
4.Monocrystalline Silicon Solar Panel Model CR150M-CR200M Specification
Solar cell dimension: 125mm×125mm
No. of cells and connections: 72(6×12)
dimension of module: 1580×808×50(mm)
Net weight: 16.2kg
Model | CR200M | CR195M | CR190M | CR185M | CR180M | CR175M | CR170M | CR160M | CR150M |
Maximum Power (Pm) | 200W | 195W | 190W | 185W | 180W | 175W | 170W | 160W | 150W |
Open-circuit voltage (Voc) | 45.0V | 44.8V | 44.6V | 44.4V | 44.3V | 44.1V | 44.0V | 43.7V | 43.4V |
Short-circuit current (Isc) | 5.50A | 5.45A | 5.41A | 5.38A | 5.29A | 5.21A | 5.17A | 5.06A | 4.96A |
Volatage at Pmax (Vmp) | 38.2V | 37.8V | 37.4V | 36.8V | 36.6V | 36.4V | 36.0V | 35.0V | 34.2V |
Current at Pmax (Imp) | 5.24A | 5.16A | 5.09A | 5.03A | 4.92A | 4.82A | 4.73A | 4.58A | 4.39A |
Maximum system voltage | 1000VDC | ||||||||
Operating temperature | -40℃ to +85℃ | ||||||||
5. FAQ
(1) Can you offer the test report of the module?
Sure. All the solar modules must pass necessary tests including EL test and ultra-red test and other visual test of the apperance, and the test report presents all the detailed data of the modules.
(2) How to confirm about the quantity and the type of solar module?
It depends on the solar system where you want to put into use the solar modules. We have experienced engineers to design for your order and you need to give more information to fix the details.
(3) How long will you deliver the solar modules?
We need to purchase the materials according to the list confirmed by you and put into production, and we will do our best to get your satisfaction.
