Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:-
Supply Capability:-
High-efficient solar cells
High transmissivity low-iron toughened glass
Anodized aluminum frame
Unique techniques give the panel following features
esthetic appearance, with stands high wind-pressure and snow load, and easy installation
Water resistant junction box
Design to meet unique demand of customer
25 year poweroutput warranty
cell dimension:125mm*125mm
number of celles and connections: 4(2*18)

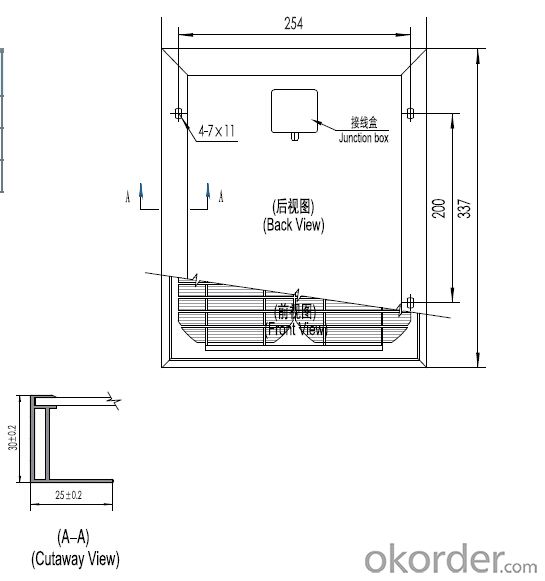

panel dimension: 337*288*30(mm)
per weight: 1.4KG
junction box type: PV-GZX0502
cable and asymmetrical lengths: NANYANG(1.5MM2), 300mm(-)and 300mm(+)
