Loading Port:Shanghai
Payment Terms:TT or LC
Min Order Qty:1000 watt
Supply Capability:3000000 watt/month
1. Main Features of Monocrystalline Silicon Solar Modules 100Watt Description
Specifications
broken solar panel for sale
1.Power 100Wp
2.A grade solar Cell
3.25 years Warranty
4.CE/TUV/UL
Quality and Safety
1. Rigorous quality control meets the highest international standards.
2. High-transmissivity low-iron tempered glass, strong aluminium frame.
3. Using UV-resistant silicon.
4. IS09001/14001/CE/TUV/UL
Features
1. Aesthetic appearance with excellent efficiency based on innovative photovoltaic technologies.
2. Strong frame, passing mechanical load test of 5400Pa, instead of the normal.
Warranties
1. 10 years limited product warranty
2. 15 years at 90% of the minimal rated power output
3. 25 years at 80% of the minimal rated power output

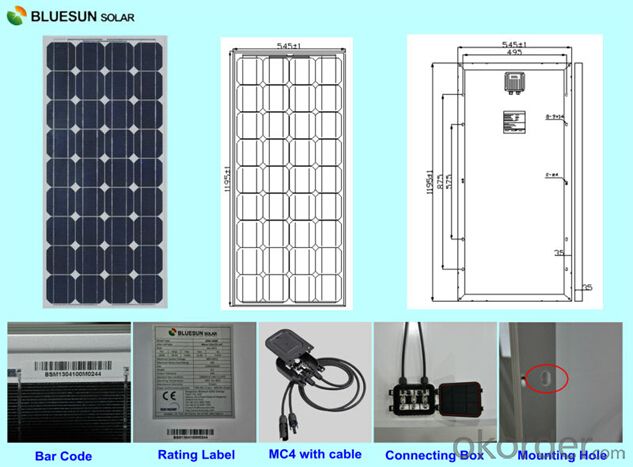

2. Detail picture of Monocrystalline Silicon Solar Modules 100Watt
3. Monocrystalline Silicon Solar Modules 100Watt Specification
ITEM NO. | Mono 125*125 cell, 36pcs. Power 100W | |||||
Maximum Power(W) | 100 | |||||
Optimum Power Voltage(Vmp) | 18.06 | |||||
Optimum Operatige Current(Imp) | 5.59 | |||||
Open Circuit Voltage(Voc) | 22.45 | |||||
Short Circuit Current(Isc) | 5.84 | |||||
Solar Cell: | 125*125 Mono | |||||
Number of Cell(pcs) | 4*9 | |||||
Brand Name of Solar Cells | JA Cell, Bluesun Cell | |||||
Size of Module(mm) | 1195*545*35 | |||||
Cable & Connector Type | Pass the TUV Certificate | |||||
Frame(Material Corners,etc.) | Aluminium-alloy | |||||
Back Sheet | TPT | |||||
Cell Efficiency for 100W(%) | 15.8% | |||||
Weight Per Piece(KG) | 8.8KG | |||||
FF (%) | 70-76% | |||||
Junction Box Type | Pass the TUV Certificate | |||||
Tolerance Wattage(e.g.+/-5%) | 0~3% | |||||
Front Glass Thikness(mm) | 3.2 | |||||
Temperature Coefficients of Isc(%) | +0.04 | |||||
Temperature Coefficients of Voc(%) | -0.38 | |||||
Temperature Coefficients of Pm(%) | -0.47 | |||||
Temperature Coefficients of Im(%) | +0.04 | |||||
Temperature Coefficients of Vm(%) | -0.38 | |||||
Temperature Range | -40°C to +85°C | |||||
Surface Maximum Load Capacity | 2400Pa | |||||
Allowable Hail Load | 23m/s ,7.53g | |||||
By pass Diode Rating(A) | 12 | |||||
Warranty | 100% of 10 years, 80% of 25 years. | |||||
Standard Test Conditions | AM1.5 1000W/m² 25 +/-2°C | |||||
Packing | carton or pallet | |||||
1*20' | 25 Pallets / 650pcs | |||||
1*40'STD | 50 Pallets / 1300pcs | |||||
4. Standard production line of Bluesun Factory
5. Packaging & Shipping of Monocrystalline Silicon Solar Modules 100Watt
Packaging
** Normally packing: 1pc/2pcs/3pcs/10pcs/25pcs per carton
** Individual packing requirement is acceptable.
Shipping
By Sea | Delivery from Shanghai or Ningbo seaport |
| By Air | Departure from Shanghai Pudong Airport |
| By Express | Post by DHL, EMS, UPS, TNT. |
6. Certificate of Monocrystalline silicon Solar Modules 100Watt
