Monocrystalline Silicon Solar Cell Type CSUN-S156-3BB-88

Product Description:

1. Structure of Monocrystalline Silicon solar  cell type CSUN-S156-3BB-88

A solar cell, is an electrical device that converts the energy of light directly into electricity by the photovoltaic effect, which is a physical and chemical phenomenon. It is a form of photoelectric cell, defined as a device whose electrical characteristics, such as current, voltage, or resistance, vary when exposed to light. Solar cells are the building blocks of photovoltaic modules, otherwise known as solar panels.

2. Main Features of Monocrystalline Silicon Solar Cell type CSUN-S156-3BB-88

★Color uniformity

★High peel  strength

★Tighter product performance distribution and 0.1% efficiency step reduce the mismatch power loss during module assembly

★Good module reliability

★Excellent PID-free performance

★Low revrse leakage current

3. Monocrystalline Silicon Solar Cell type CSUN-S156-3BB-88 Specifications

Format : 156 mm × 156 mm ± 0.5 mm

Thickness: 200 μm ±20 μm

Front (-) : 1.35mm bus bars (silver),blue anti-reflection coating (silicon nitride)

Back (+)  : 1.8mm wide soldering pads (silver) back surface field (aluminium)

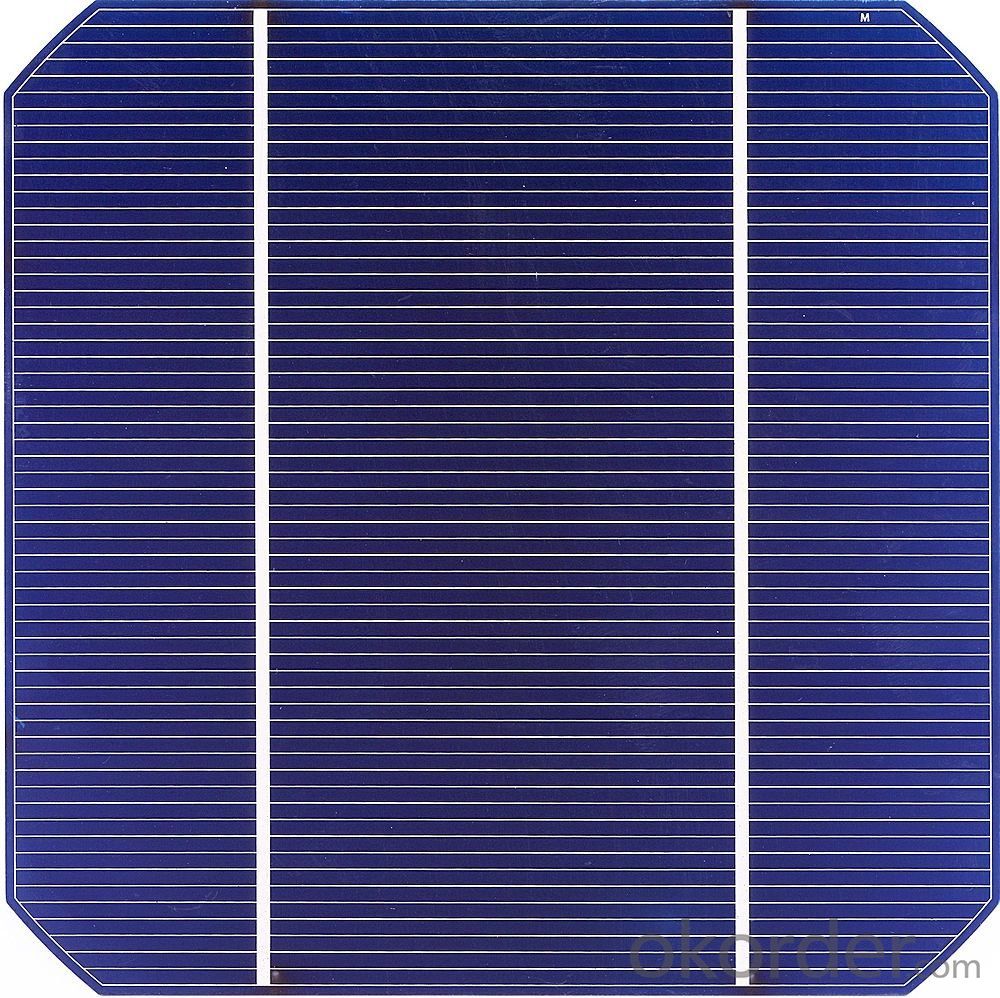

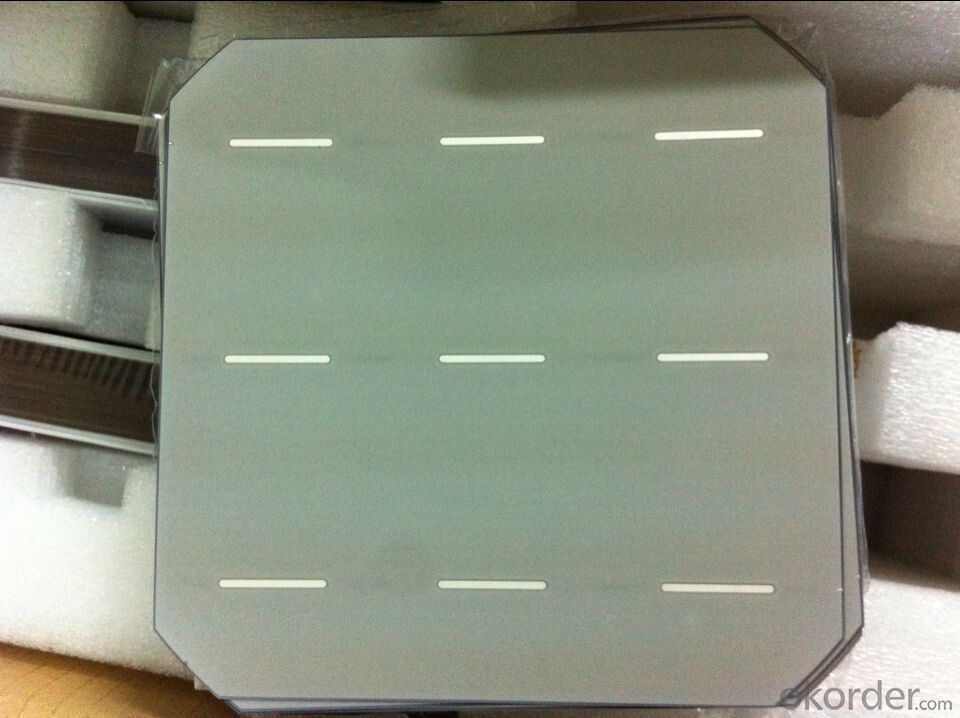

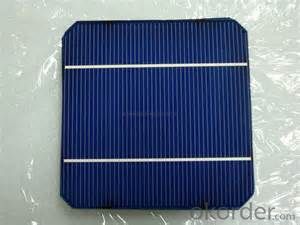

4.  Monocrystalline Silicon Solar Cell type CSUN-S156-3BB-88 Images

 5. FAQ

Q1: How to deliver the solar cells?

Re: Carton Box Package and Deliver by air. It should be noticed that it should be avoid of water, sunshine and moisture.

Q2:  What is the advantage of the Mono solar cells?

Re: Mono solar cells has higher efficiency and higher power, and long-term electrical stability.
