Brief Introduction of Solar Cells
A solar cell, is an electrical device that converts the energy of light directly into electricity by the photovoltaic effect, which is a physical and chemical phenomenon. It is a form of photoelectric cell, defined as a device whose electrical characteristics, such as current, voltage, or resistance, vary when exposed to light. Solar cells are the building blocks of photovoltaic modules, otherwise known as solar panels.

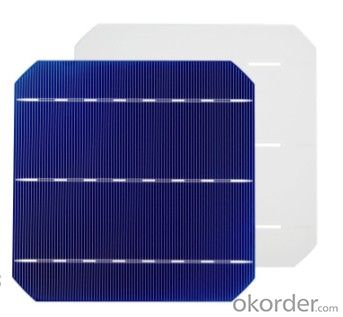

Monocrystal Solar Cell
type：125S
appearance：125×125㎜±0.5mm;diagonal:R=82.5mm
Main fence wide：1.6mm;back electrode wide:2.5mm
Fence line qty:54（back connect line） 70（back connect line）
Cell thickness：220
±20
Eff(%) | 17.30- 17.45 | 17.45- 17.60 | 17.60- 17.70 | 17.70- 17.80 | 17.80- 17.90 | 17.90- 18.00 | 18.00- 18.10 | 18.10- 18.20 | 18.20- 18.30 | 18.30- 18.40 | 18.40- 18.50 | 18.50- 18.60 |
Pm(W) | 2.68 | 2.7 | 2.72 | 2.74 | 2.76 | 2.77 | 2.78 | 2.80 | 2.82 | 2.83 | 2.85 | 2.86 |
Isc(A) | 5.57 | 5.58 | 5.61 | 5.63 | 5.65 | 5.66 | 5.68 | 5.70 | 5.71 | 5.71 | 5.73 | 5.75 |
Im(A) | 5.17 | 5.19 | 5.23 | 5.25 | 5.28 | 5.29 | 5.31 | 5.33 | 5.35 | 5.35 | 5.37 | 5.39 |
Voc(V) | 0.622 | 0.625 | 0.626 | 0.627 | 0.627 | 0.628 | 0.628 | 0.629 | 0.630 | 0.631 | 0.631 | 0.633 |
Vm(V) | 0.521 | 0.523 | 0.523 | 0.523 | 0.523 | 0.526 | 0.528 | 0.528 | 0.529 | 0.529 | 0.531 | 0.532 |
FF(%) | 77.7 | 77.8 | 77.8 | 77.9 | 78 | 78.4 | 78.6 | 78.6 | 78.9 | 78.9 | 79.0 | 79.0 |
FAQ
We have organized several common questions for our clients，may help you sincerely：
What’s price per watt?
A: It’s depends on the quantity, delivery date and payment terms of the order. We can talk further about the detail price issue. Our products is high quality with lower price level.
Can you tell me the parameter of your solar cells?
We have different series of cells with different power output, both from c-si to a-si. Please take our specification sheet for your reference.
How do you pack your products?
We have rich experience on how to pack the panels to make sure the safety on shipment when it arrives at the destination.
Can you do OEM for us?
Yes, we can.
How long can we receive the product after purchase?
In the purchase of product within three working days, We will arrange the factory delivery as soon as possible. The perfect time of receiving is related to the state and position of customers. Commonly 7 to 10 working days can be served.

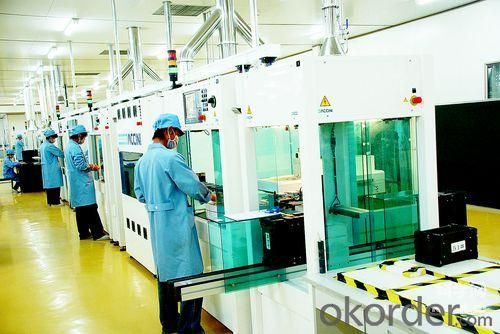

Factory Picture
