Loading Port:China Main Port
Payment Terms:TT or LC
Min Order Qty:100 watt
Supply Capability:10000000 watt/month
Structure of 195W Mono Solar Panels Description
CNBM Solar's photovoltaic module is designed for designed for large electrical power requirement.
It is the optimal choice for both on-grid and off-grid power systems.
CNBM Solar offers high performance of power per square foot of solar array.
Quick Details of the 195W Mono Solar Panels
Place of Origin: | Jiangsu China (Mainland) | Brand Name: | CNBM Solar | Model Number: | 195w mono solar panels |
Material: | Monocrystalline Silicon | Size: | 1580x808x35mm | Number of Cells: | 6x12 cells |
Max. Power: | 200w | Certificate:: | ISO9001/14001,CE/TUV/UL | Color: | Can be black or white |
Grade: | A grade cells | OEM Order:: | Acceptable | Junction BOX:: | lP65 Ralated/Past the TUV |

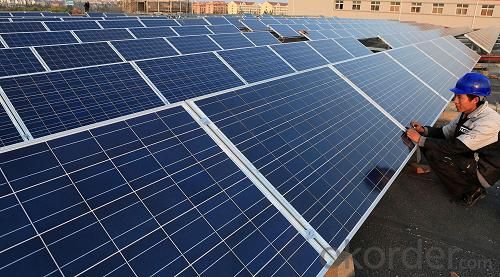

195W Mono Solar Panels Images
195W Mono Solar Panels Specification
Specifications of solar panels:
1) 6 years Manufacturer
2) High Efficiency solar Cell
3) 25 years Warranty
4) ISO9001/ISO14001/TUV/UL/CE
Quality and Safety:
Rigorous quality control meeting the highest international standards
High-transmissivity low-iron tempered glass, strong aluminium frame
Using UV-resistant silicon
ISO 9001:2008 and ISO 14001:2004
IEC61215, IEC61730, Safety Class Inconformity to CE
Features:
Aesthetic appearance with excellent efficiency based on innovative
photovoltaic technologies
Strong frame, passing mechanical load test of 5400Pa, instead of the normal
2400Pa,to withstand heavier snow load and higher wind-pressure
Warranties:
10 years limited product warranty
15 years at 90% of the minimal rated power output
25 years at 80% of the minimal rated power output
Specificate sheet:
ITEM NO.: | Mono 125*125 cell ,72pcs . Power range from 170Wp-210Wp | ||||||||
Maximum Power(W) | 170 | 175 | 180 | 185 | 190 | 195 | 200 | 205 | 210 |
Optimum Power Voltage(Vmp) | 35.2 | 35.3 | 35.4 | 35.8 | 36.5 | 37.0 | 37.6 | 37.9 | 38.0 |
Optimum Operatige Current(Imp) | 4.83 | 4.96 | 5.09 | 5.17 | 5.21 | 5.28 | 5.32 | 5.41 | 5.53 |
Open Circuit Voltage(Voc) | 44.4 | 44.5 | 44.6 | 44.8 | 45.0 | 45.1 | 45.3 | 45.5 | 45.8 |
Short Circuit Current(Isc) | 5.29 | 5.34 | 5.40 | 5.48 | 5.56 | 5.63 | 5.72 | 5.79 | 5.83 |
Solar Cell: | 125*125 Mono | ||||||||
Number of Cell(pcs) | 6*12 | ||||||||
Brand Name of Solar Cells | JA Cell, | ||||||||
Size of Module(mm) | 1580*808*35 | ||||||||
Cable & Connector Type | Pass the TUV Certificate | ||||||||
Frame(Material Corners,etc.) | Aluminium-alloy | ||||||||
Backsheet | TPT | ||||||||
Cell Efficiency (%) | 16.8% | ||||||||
Weight Per Piece(KG) | 15.0KG | ||||||||
FF (%) | 70-76% | ||||||||
Junction Box Type | Pass the TUV Certificate | ||||||||
Tolerance Wattage(e.g.+/-5%) | ±3%, or 0-3% | ||||||||
Front Glass Thinkness(mm) | 3.2 | ||||||||
Temperature Coefficients of Isc(%) | +0.04 | ||||||||
Temperature Coefficients of Voc(%) | -0.38 | ||||||||
Temperature Coefficients of Pm(%) | -0.47 | ||||||||
Temperature Coefficients of Im(%) | +0.04 | ||||||||
Temperature Coefficients of Vm(%) | -0.38 | ||||||||
Temperature Range | -40°C to +85°C | ||||||||
Surface Maximum Load Capacity | 2400Pa | ||||||||
Allowable Hail Load | 23m/s ,7.53g | ||||||||
Bypass Diode Rating(A) | 12 | ||||||||
Warranty | 100% of 10 years,80% of 25 years. | ||||||||
Standard Test Conditions | AM1.5 , 1000W/m² , 25 +/-2°C | ||||||||
Packing | carton or pallet | ||||||||
1*20' | 12Pallets / 320pcs | ||||||||
1*40'STD | 25 Pallets / 700pcs | ||||||||
Modules Characteristics:
A.High effciency crystalline silicon solar cells.
B.High transmission low iron tempered glass,strong mechanical resistance.
C.Standard waterproof junction box,with bypass diode and MC4 connectors.
D.High endurance to different atrocious weather,warranty reach 30 years above.
E.Custom designed modules according to clients' requirement,we can supply various OEM service.
F.Hold TUV and IEC,CE,ISO approval, can supply various OEM service.
Packaging & Delivery
Packaging Detail: | Pallets |
Delivery Detail: | 10 days |
PERFORMANCE:
>> High efficiency,Crystalline solar cells with high transmission and textured glass delivering a module series efficiency of up to 17.4%, minimising installation costs and maximising the kWh outputof your system per unit area.
>> Power tolerance of +/-3% minimising PV system mismatch losses.
QUALITY & RELIABILITY
>> Robust, corrosion resistant aluminium frame independently tested to withstand wind load of 2.4KPa and snow loads of 5.4KPa ensuring a stable mechanical life for your modules.
>> Take confidence in our modules with a 5 years limited product warranty and a 25 year limited power warranty as international standard.
>> Modules protected by box during transportation and with 21 modules in a box on-site waste is minimised.
>> Modules independently tested to ensure conformance with certification and regulatory standards.
>> Manufacturing facility certified to ISO 9001 Quality Management System standards.
FAQ of 195W Mono Solar Panels
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Jiangyin city, jiangsu province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
4. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
