Loading Port:China main port
Payment Terms:TT or LC
Min Order Qty:1 pc
Supply Capability:1000000 pc/month
Monocrystalline Silicon Solar Panel
Introduction of Monocrystalline Silicon Solar Panel CNBM Solar photovoltaic (PV) Panel is designed for large electrical power requirements. It is the optimal choice for both on-grid and off-grid power systems. CNBM Solar panel offers high performance of power per square foot of solar array. Monocrystalline silicon(c-Si): often made using the Czochralski process. Single-crystal wafer cells tend to be expensive, and because they are cut from cylindrical ingots, do not completely cover a square solar cell module without a substantial waste of refined silicon. Hence most c-Si panels have uncovered gaps at the four corners of the cells.
Characteristics of Monocrystalline Silicon Solar Panel
I Solar Cell : High efficiency crystalline solar cell. Even if under the weak light, the solar module can produce maximum power output.
II Tempered glass (toughened glass): Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.
III EVA and TPT: Using high quality EVA and TPT to prevent destroying and water.
IV AI frame: Without screw, corner connection. 6 holes on the frame can be installed easily.
V Junction box: Multi function junction box with water proof.
VI Long lifetime: ≥25 years; Less power decrease.
VII Good performance of preventing from atrocious weather such as wind and hails.
VIII Resisting moisture and etching effectively, not effected by geology. Standard Test Conditions of Monocrystalline Silicon Solar Panel The opto-electrical specifications shown below are stabilized values being measured at Standard Test Conditions, Irradiance: 1000W/m2, Spectrum: AM1.5 at 25°C, The info below is subject to manufacturing tolerances. Where appropriate minutes of measurement are available and are used for the dimensioning of the installation.
Advantages of Monocrystalline Silicon Solar Panel
Characteristics of CNBM Solar Monocrystalline Series (45W-65W)
Max Power Voltage Vmp (V) | 17.8V | 18.0V | 17.6V | 17.8V | 18.0V |
Max Power Current Imp (A) | 2.53A | 2.78A | 3.13A | 3.37A | 3.61A |
Open Circuit Voltage Voc (V) | 22.4V | 22.6V | 22.2V | 22.4V | 22.6V |
Short Circuit Current Isc (A) | 2.74A | 2.97A | 3.35A | 3.61A | 4.36A |
Max Power Pm (W) | 45W | 50W | 55W | 60W | 65W |
Temperature Coefficient of Cells of CNBM Solar Monocrystalline Series (45W-65W)
NOCT | 47℃±2℃ |
Temperature Coefficients of Isc (%/℃) | 0.064 |
Temperature Coefficients of Voc (%/℃) | -0.33 |
Temperature Coefficients of Pmp (%/℃) | -0.45 |
Mechanical Data of CNBM Solar Monocrystalline Series (45W-65W)
Power | 45W/50W | 55W/60W/65W |
Dimension | 630×550×30mm | 820×550×30mm |
Weight | 4.5kg | 5.5kg |
Tolerance | ±3% | ±3% |
The dimension of the modules can be changed according to the demand of clients
Limits of CNBM Solar Monocrystalline Series (45W-65W)
Operating Temperature | –40 °C to +85°C |
Storage Temperature | –40 °C to +85°C |
Max System Voltage | 700V |
Guarantee of CNBM Solar Monocrystalline Series (45W-65W)
Products Guarantee | 2 yrs free from defects in materials and workmanship |
Performance Guarantee | No less than 90% within 10yrs and no less than 80% within 20yrs |
Certificates | IEC, ISO, TUV, CE |

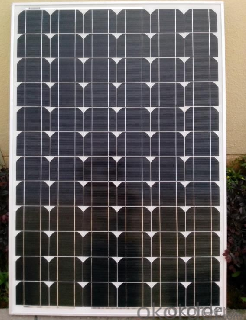

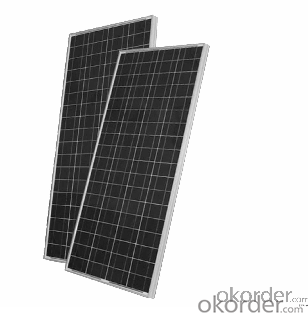

IMAGES:
FAQ:
WHAT'S THE ADVANTAGES OF CNBM?
1.CNBM is a state-owned company under jurisdiction of central goverment , one of Fortune 500 .Just because of this ,we can get more support and resources from our government.So ,it is realiable .
2.CNBM's solar products are high-qualified with TUV,UL,VDE,CE,ISO certificates. Our products ranges top in China.
3.Just as I mentioned in attahment ,we signed 500MW project with Urkan under the witness of our chairman Xi Jinping ,CNBM has ability to meet your large quantity needs,Our annual capacity is 1GW.
4.We can offer you a competitive price .Because you are our potential and valued customer .
